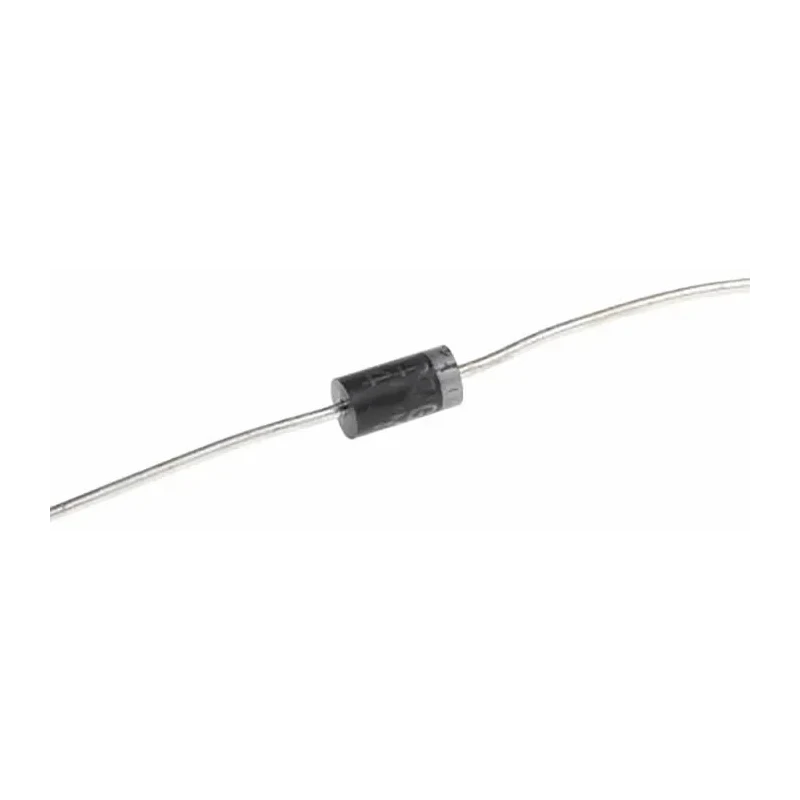

STMicroelectronics 1.28 V Zener Diode, Single, 1.7 W Through Hole 2-Pin DO-15 BZW06-28
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.53mm |
| Length | 68.75mm |
| Model | BZW06-28 |
| Mount Type | Through Hole |
| Series | BZW06 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1.7W |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current | 200nA |
| Nominal Zener Voltage Vz | 28V |
Key Features
- This diode features a single diode configuration and 2-pin through-hole mounting.
- It provides reliable transient voltage suppression for sensitive devices.
- The maximum reverse leakage current is 200 nA, ensuring high efficiency.
- Operates within a wide temperature range of -55°C to 175°C for diverse applications.
- Compact package dimensions enable easy integration in PCB designs.
- Fast response time and low clamping factor enhance protection for low voltage electronics.
- Manufactured under the BZW06 series with automotive standards not applied.
Product Description
STMicroelectronics BZW06-28 Zener Diode is a high-quality transient voltage suppression diode designed to protect sensitive components such as MOS transistors and low voltage integrated circuits through rapid clamping action. It features a nominal Zener voltage of 28 V and can dissipate up to 1.7 watts of power, making it suitable for applications requiring efficient voltage regulation and overvoltage protection.
The device is a single diode configuration housed in a 2-pin DO-15 through-hole package, providing easy mounting on printed circuit boards. With a maximum reverse leakage current of just 200 nA, it offers reliable performance in precision electronic circuits.
Engineered to operate over a broad temperature range from -55°C to 175°C, the BZW06-28 is ideal for applications in industrial, automotive (non-automotive standard), laboratory, and general electronics environments where thermal stability is critical.
Its compact length of 68.75 mm and height of 3.53 mm enable efficient placement in space-constrained designs. The fast response time and low clamping factor ensure that voltage spikes are swiftly suppressed, protecting downstream components from damage.
This diode features a single diode configuration and 2-pin through-hole mounting. It provides reliable transient voltage suppression for sensitive devices. The maximum reverse leakage current is 200 nA, ensuring high efficiency.
Operates within a wide temperature range of -55°C to 175°C for diverse applications. Compact package dimensions enable easy integration in PCB designs. Fast response time and low clamping factor enhance protection for low voltage electronics.
Manufactured under the BZW06 series with automotive standards not applied.
Suitable for use in electronic component protection, power supply regulation, telecommunication equipment, test and measurement devices, and other industrial electronic systems. Browse the EnvMart catalog for more advanced diode and semiconductor solutions from top brands.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 28 V.
This diode can dissipate up to 1.7 watts of power.
The maximum reverse leakage current is 200 nA.
The diode has a length of 68.75 mm and a height of 3.53 mm.
It operates within a temperature range of -55°C to 175°C.
This model features a 2-pin through-hole mounting configuration.
It has a single diode configuration.
It is suitable for electronic component protection, power supply regulation, telecommunication equipment, and test and measurement devices.
This diode is manufactured under the BZW06 series.
The diode is housed in a DO-15 package type.
The fast response time enhances protection by swiftly suppressing voltage spikes, thereby protecting downstream components.
The country of origin for this diode is India.
