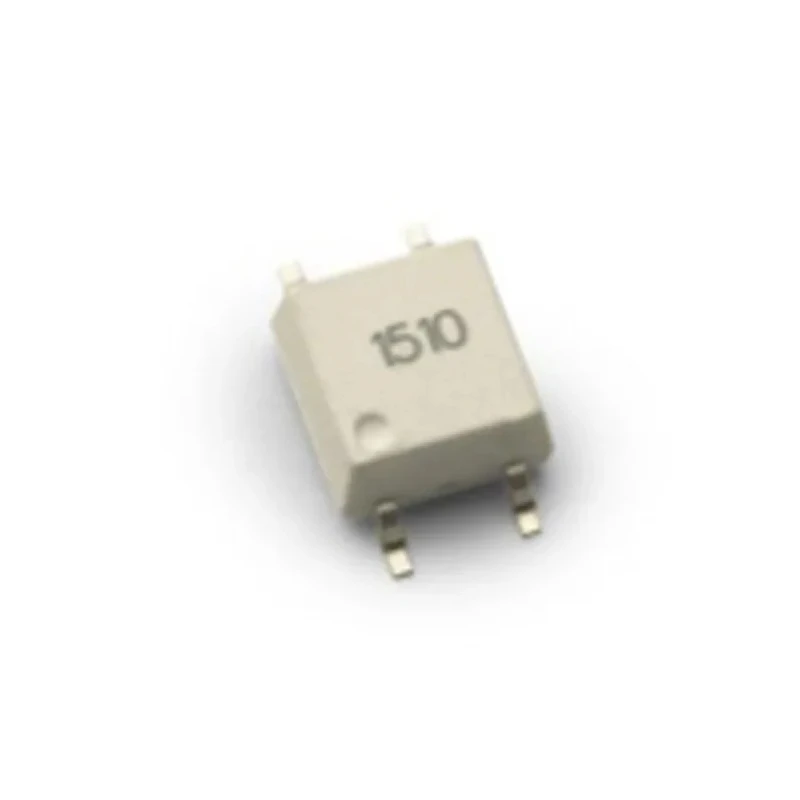

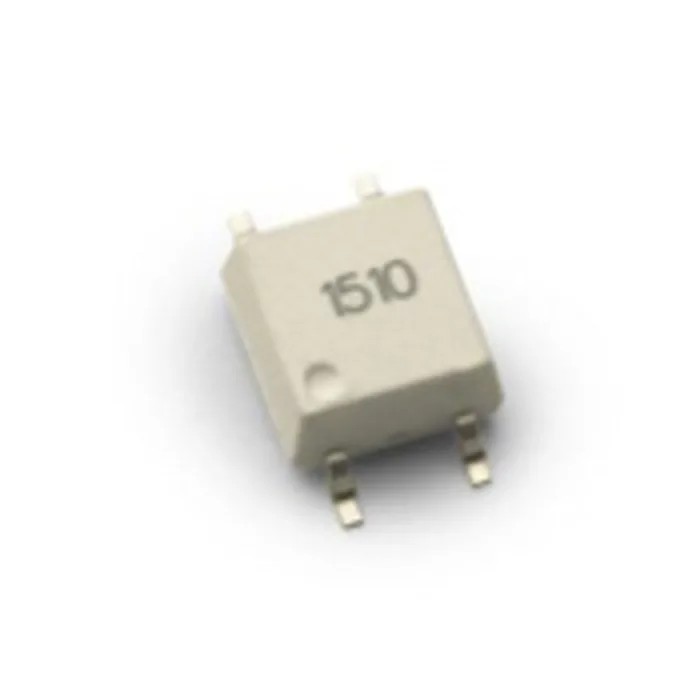

Broadcom ASSR-1510 Series Solid State Relay 1 A Load 60 V Load Surface Mount 1.7V Control ASSR-1510-503E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 2mm |
| Length | 4.4mm |
| Model | ASSR-1510-503E |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | ASSR-1510 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Capacitance | 0.4pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Switching Function | AC Switching |
| Maximum Load Current | 1A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | -60V |
| Minimum Control Voltage | 1.1V |
| Maximum Control Voltage | 1.7V |
| Off State Leakage Current | 100nA |
Key Features
- The relay is a compact solid-state bidirectional signal switch using MOSFET output type.
- Supports a maximum load current of 1 A and a maximum load voltage of 60 V.
- Features surface mount PCB terminals for easy mounting.
- Operates within a temperature range of -40°C to 85°C.
- Exhibits low off-state leakage current of 100 nA and capacitance of 0.4 pF.
- High-speed switching capability with typical Ton of 0.25 ms and Toff of 0.02 ms.
- Offers low on-resistance of 0.12 Ω for DC-only and 0.35 Ω for AC/DC operation.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Broadcom ASSR-1510-503E Solid State Relay is an advanced electronic switch designed for industrial and commercial applications requiring reliable, high-speed AC switching. This relay features a compact surface mount design with PCB terminals, suitable for modern automated control systems and electronic circuit integration.
The relay operates with a maximum load current of 1 A and withstands load voltages up to 60 V, making it suitable for signal switching and isolation in electronics, automation, and control gear.
Internally, the ASSR-1510 series uses an AlGaAs infrared LED input stage optically coupled to a high-voltage MOSFET output detector circuit. It supports low input current activation ensuring CMOS logic compatibility, and provides low on-resistance to minimize power loss during operation.
Operating across a wide temperature range from -40°C to 85°C, the device supports robust performance in industrial environments. Its fast switching times enhance efficiency for switching applications, while a low off-state leakage current and minimal output capacitance ensure minimal disturbance to the controlled circuits.
The contact configuration of SPDT and AC switching function enable versatile application in signal conditioning, automation control, and electronic circuit designs where isolation and low noise operation are paramount.
The relay's MOSFET output and low input current make it compatible with microcontroller and digital control circuits. Typical low on-resistance improves circuit efficiency and thermal management. High transient immunity (>1 kV/μs) protects against voltage spikes and electrical noise.
Compact length of 4.4 mm and height of 2 mm suits space-constrained PCB layouts. Complies with RoHS environmental standards for safe industrial use.
This reliable solid state relay from Broadcom is ideal for applications in industrial automation, electronic signal switching, HVAC controls, manufacturing equipment, and advanced control systems.
Explore more Solid State Relays and electronic components to support your industrial automation and control needs at EnvMart.
