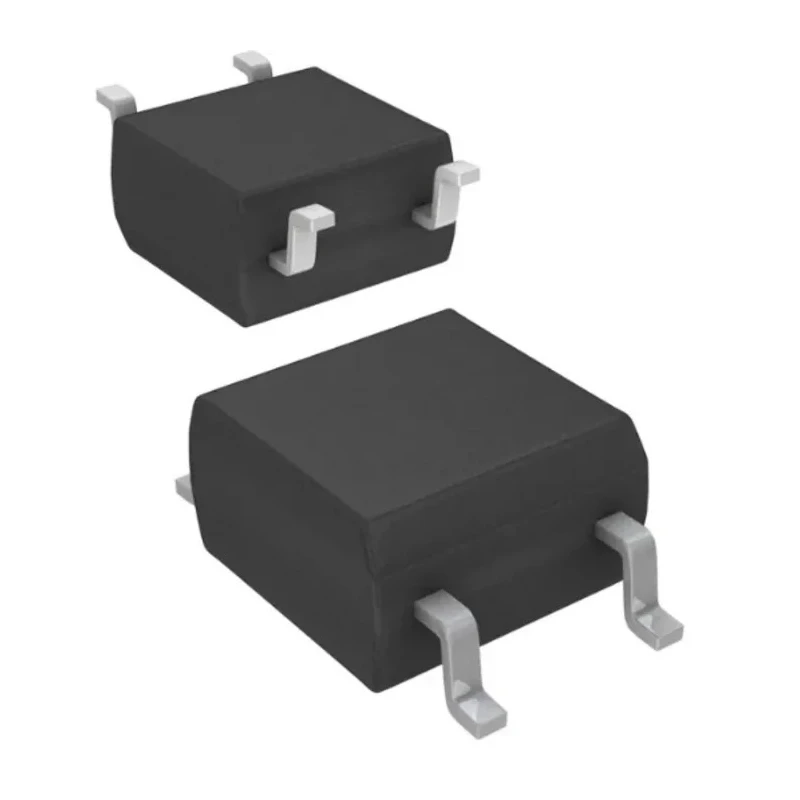

Broadcom Solid State Relay Surface Mount 0.1A Load 400V Load 1.6V Control ASSR-4118-503E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 2mm |
| Length | 4.4mm |
| Model | ASSR-4118-503E |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | ASSR-4118 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 0.4pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Switching Function | AC Switching |
| Maximum Load Current | 0.1A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 400V |
| Minimum Load Voltage | -400V |
| Minimum Control Voltage | 1.1V |
| Maximum Control Voltage | 1.6V |
| Off State Leakage Current | 1μA |
| Low Input Current | CMOS compatibility |
| Low On-Resistance | 8ohm typical for DC only, 25ohm typical for AC/DC |
Key Features
- The relay uses a Photo MOSFET output type for reliable AC switching.
- It features a low input control voltage range from 1.1 V to 1.6 V.
- Designed for optimal operation between -40°C and 85°C ambient temperatures.
- Compact dimensions of 4.4 mm length and 2 mm height support high-density PCB mounting.
- Very low off-state leakage current of 1 microampere reduces power loss.
- Low capacitance of 0.4 pF minimizes signal interference.
- SPST contact configuration with PCB terminal mounting.
- Low on-resistance of 8 ohm typical for DC and 25 ohm typical for AC/DC operations.
Product Description
Broadcom ASSR-4118-503E is a high-performance Solid State Relay designed for switching AC loads with a maximum load current of 0.1 A and load voltage up to 400 V. This surface mount device (SO-4 package) integrates a high-efficiency AlGaAs infrared LED input coupled optically to a MOSFET output, delivering superior electrical isolation and long operational life.
The relay supports low control voltages from 1.1 V to 1.6 V, making it compatible with low-power control circuits such as CMOS. With a low on-resistance of 8 ohms for DC and 25 ohms typical for AC/DC switching, it minimizes power dissipation during operation.
Engineered to operate reliably within a temperature range of -40°C to +85°C, the device is suitable for challenging industrial and commercial environments. Its compact dimensions (4.4 mm x 2 mm) facilitate easy integration into densely populated PCBs, and PCB terminal types ensure secure mounting and quick installation.
The 1μA off-state leakage current and 0.4 pF capacitance contribute to minimal signal distortion and energy efficiency, suitable for precision switching tasks. The SPST contact design and compliance with RoHS standards underline the solid quality and environmental compliance of this product.
Applications include telecommunications switching, data communications, industrial automation, medical equipment, and security systems, providing reliable, maintenance-free switching solutions.
The relay provides a compact, bi-directional solid-state signal switch. Its low input current design is compatible with CMOS inputs for easy control. High input-to-output insulation voltage enhances safety and noise immunity.
The device acts as an EMR and Reed Relay replacement for enhanced durability. RoHS compliant and adheres to industry environmental standards.
Broadcom’s ASSR series solid state relays combine compact size, efficient power handling, and compatibility for a wide range of electronic switching applications. Browse similar Solid State Relays and broadcom products on EnvMart for advanced automation and control gear solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.1 A.
It supports a maximum load voltage of 400 V and a minimum load voltage of -400 V.
The control voltage range for this relay is between 1.1 V and 1.6 V.
This model uses a MOSFET output type for reliable AC switching.
The dimensions of the ASSR-4118-503E are 4.4 mm in length and 2 mm in height.
The off-state leakage current is 1 microampere (1μA).
The typical on-resistance is 8 ohms for DC and 25 ohms for AC/DC operations.
It operates reliably within a temperature range of -40°C to +85°C.
This solid state relay supports surface mounting with PCB terminals.
The capacitance of this relay is 0.4 pF, which helps minimize signal interference.
It complies with RoHS standards, ensuring environmental compliance.
This relay is suitable for applications including telecommunications switching, data communications, industrial automation, medical equipment, and security systems.
