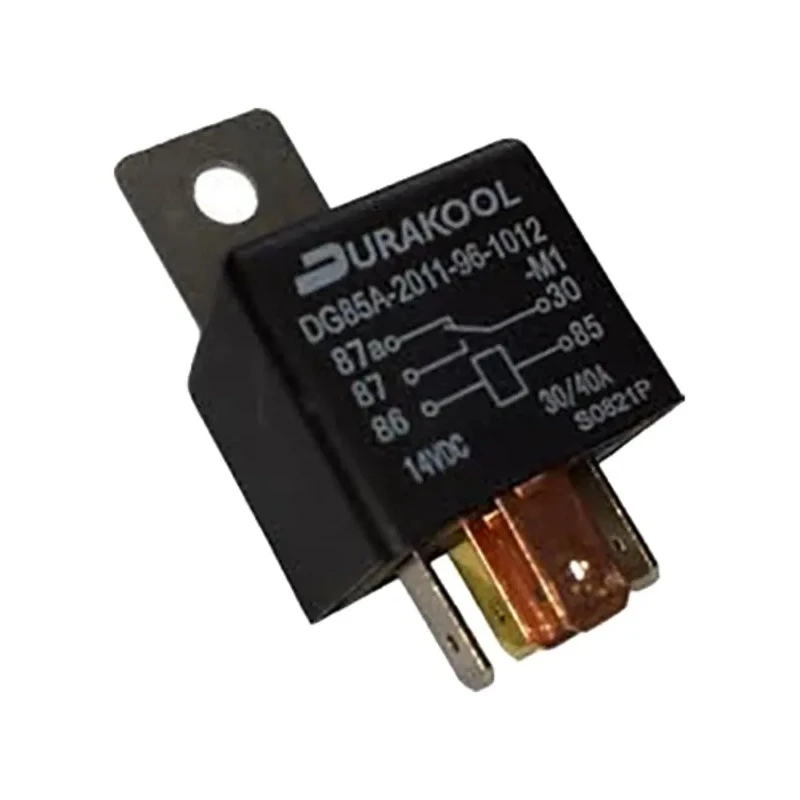

Durakool Power Relay 12V DC Coil 80A Switching Current SPST DG85C-7021-76-1012-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 25mm |
| Length | 28.3mm |
| Model | DG85C-7021-76-1012-R |
| Width | 28.3mm |
| Contact Material | Silver Tin Oxide Indium |
| Series | DG85C |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 80A |
| Terminal type | Quick Connect |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 90Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 30V ac |
| Coil Power | 1.81W |
Key Features
- Designed for high resistance to inrush current and long life cycle.
- Industry-standard size and footprint suitable for automotive and industrial applications.
- Quick connect terminal type for easy installation.
- Operates reliably between -40°C and 125°C.
- Silver tin oxide indium contact material enhances conductivity and durability.

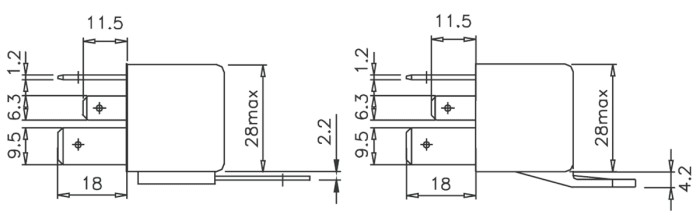

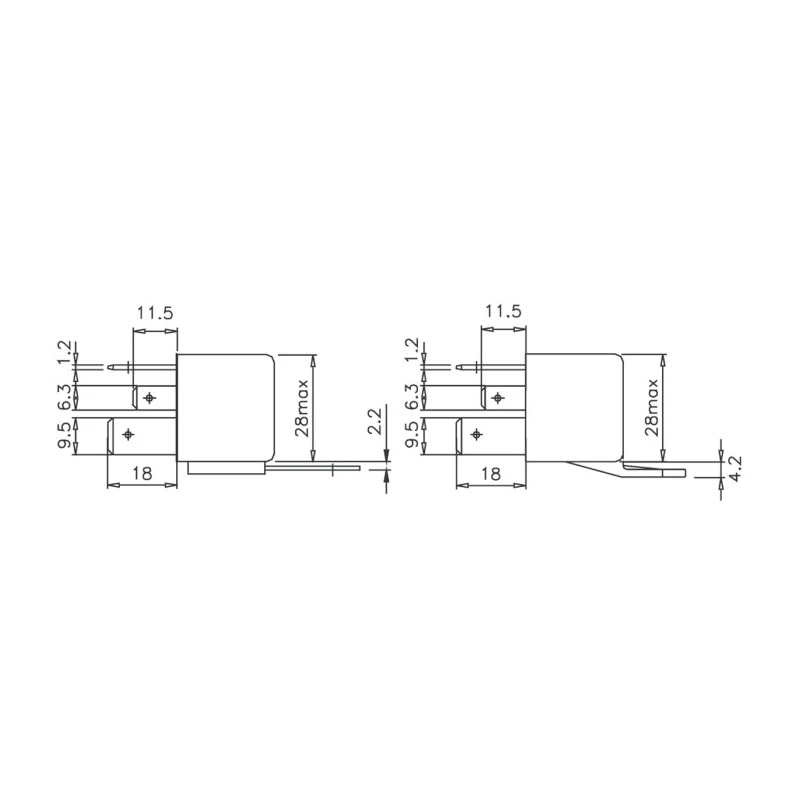

- Compact size with dimensions 28.3 x 28.3 x 25 mm (L x W x H).
- Coil power consumption of 1.81W ensures efficient operation.
- Supports switching DC and AC voltage up to 30V.
Product Description
Durakool DG85C-7021-76-1012-R is a high-quality power relay equipped with a 12V DC coil and an 80A switching current capacity, designed for automotive and industrial uses where reliable switching performance is required. The SPST (Single Pole Single Throw) contact configuration allows effective control in various electrical circuits.
This relay features high resistance to inrush current, ensuring durability and performance in demanding environments. It operates efficiently across a wide temperature range from -40°C to 125°C, making it suited for harsh industrial and automotive conditions.
The compact and industry-standard dimensions (28.3 mm length, 28.3 mm width, and 25 mm height) provide a universal fit for many applications. Terminals are designed for quick connect installation, simplifying wiring and maintenance tasks.
The contact material comprises silver tin oxide indium, which offers excellent conductivity and longevity, complemented by a low contact resistance of 100 mΩ. Coil power consumption is low at 1.81W, optimizing energy use.
This relay supports switching voltages up to 30V in both DC and AC, making it versatile for controlling DC motors and other electrical loads. Designed for automotive and industrial electrical systems. High resistance to inrush current for extended relay life.
Compact industry-standard dimensions for easy integration. Durable silver tin oxide indium contacts ensuring reliable switching. Wide operating temperature range suitable for extreme conditions. Quick connect terminals enable fast and secure mounting.
Low coil power consumption for energy efficiency. Complies with RoHS environmental standards. High switching current rating of 80A supports demanding loads.
This power relay from Durakool is ideal for use in automotive controls, industrial machinery, HVAC systems, automation control panels, and other electrical applications requiring robust switching capabilities.
Explore the extensive range of Power Relays and electrical components available through EnvMart to meet your technical and operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current capacity of this power relay is 80A.
The coil voltage for this model is 12V DC.
The dimensions of this relay are 28.3 mm in length, 28.3 mm in width, and 25 mm in height.
This relay features a Single Pole Single Throw (SPST) contact configuration.
It operates efficiently between -40°C and 125°C.
This relay is equipped with quick connect terminals for easy installation.
The contact material is silver tin oxide indium, which enhances conductivity and durability.
The coil power consumption is 1.81W, ensuring efficient operation.
It supports switching DC and AC voltages up to 30V.
The contact resistance is low at 100 mΩ.
Yes, it complies with RoHS environmental standards.
This model is suitable for automotive controls, industrial machinery, HVAC systems, and automation control panels.
