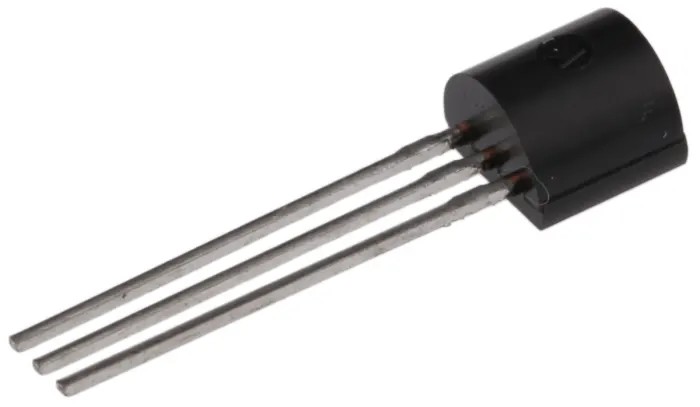

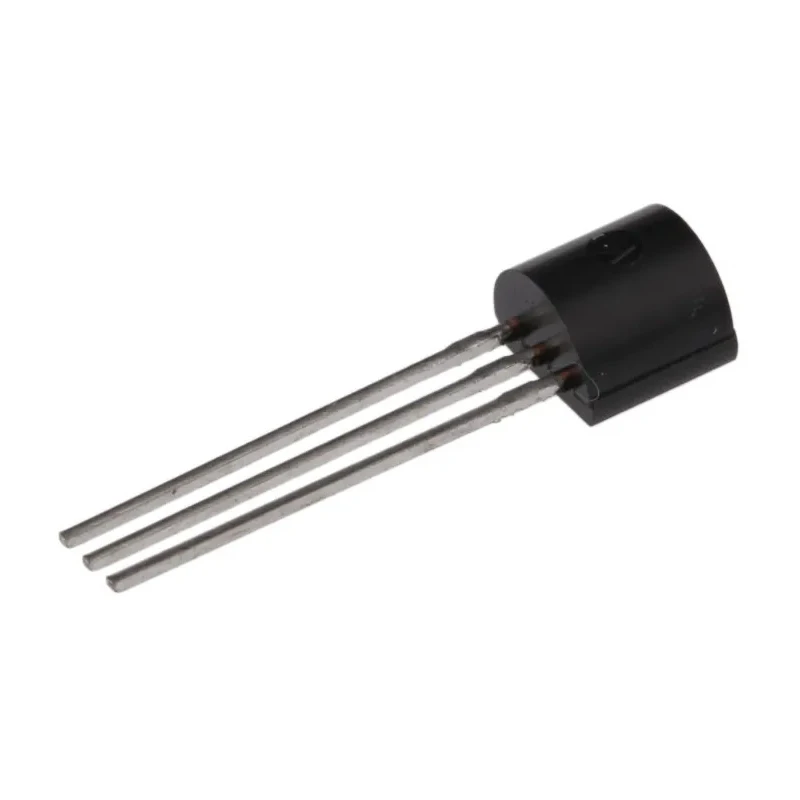

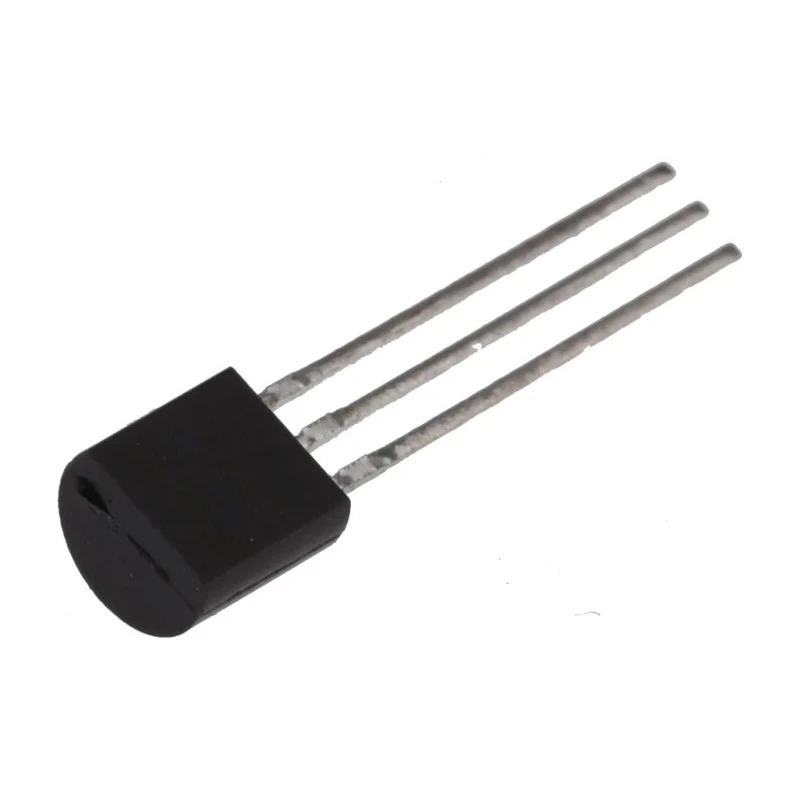

onsemi Single N-Channel JFET-Channel JFET 20 mA, 3-Pin TO-92 J111

Category Discrete Semiconductor Brand onsemi Condition New

Specifications

Country of Origin India
Brand onsemi
Height 5.33mm
Length 5.2mm
Model J111
Width 4.19mm
Mount Type Through Hole
Configuration Single
Maximum Operating Temperature 150°C
Package Type TO-92
Sub Type JFET
Minimum Operating Temperature -55°C
Pin Count 3
Channel Type N
Maximum Drain Source Resistance Rds 30Ω
Maximum Power Dissipation Pd 350mW
Maximum Gate Source Voltage Vgs -35V
Drain Source Current Ids 20 mA

Key Features

  • The device is configured as a single N-channel junction field-effect transistor.
  • It has a maximum power dissipation of 350 mW suitable for low power applications.
  • The transistor features a through-hole mount type with a compact TO-92 package.
  • The gate-source voltage maximum is rated at -35 V for robust operation.
  • Designed to operate between -55°C to 150°C, ensuring high temperature tolerance.
  • Drain-source resistance is minimal at 30 Ω, improving switching efficiency.
  • The dimensions of the transistor are 5.33 mm height, 5.2 mm length, and 4.19 mm width.

Product Description

onsemi J111 Single N-Channel JFET-Channel JFET J111 is a Discrete Semiconductor device designed for analogue switching and chopper applications. It offers reliable performance within a temperature range of -55°C to 150°C, making it suitable for demanding industrial, laboratory, and electronic applications.

The transistor is configured as a single-channel N-type JFET in a classic TO-92 3-pin through-hole mount package. It supports a maximum drain current of 20 mA and maximum power dissipation of 350 mW, ideal for low power analog circuits and signal amplification.

This device features a maximum gate-source voltage rating of -35 V and a low drain-source resistance of 30 Ω, which contribute to efficient switching and minimal power loss during operation.

The device dimensions are compact, with height 5.33 mm, length 5.2 mm, and width 4.19 mm, facilitating easy integration into printed circuit boards (PCB) using through-hole mounting techniques.

Typical applications include industrial control circuits, electronic measurement devices, and laboratory instrumentation where precise, low-noise switching is essential. The source and drain are interchangeable, providing flexibility in circuit design.

The device is configured as a single N-channel junction field-effect transistor. Maximum power dissipation is 350 mW for low power operation. Through-hole mount type and TO-92 packaging allow easy PCB installation. Maximum gate-source voltage rating is -35 V.

Operating temperature range spans from -55°C to 150°C. Drain-source resistance is rated at 30 Ω facilitating efficient switching. Compact dimensions support flexible PCB layout options.

Explore more high-quality semiconductor devices like onsemi J111 in EnvMart's comprehensive electronics components category, ideal for professionals in manufacturing, research, and development.

onsemi Single N-Channel JFET-Channel JFET 20 mA, 3-Pin TO-92 J111
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum power dissipation of the J111 transistor is 350 mW, making it suitable for low power applications.

This model operates within a temperature range of -55°C to 150°C, allowing for high temperature tolerance in various applications.

The dimensions of the J111 transistor are 5.33 mm in height, 5.2 mm in length, and 4.19 mm in width.

The J111 transistor features a through-hole mount type, designed for easy installation on printed circuit boards (PCBs).

The maximum gate-source voltage rating for the J111 is -35 V, ensuring robust operation in various circuits.

The J111 can handle a maximum drain current of 20 mA, suitable for low power analog circuits.

The drain-source resistance of the J111 is rated at 30 Ω, which contributes to efficient switching.

The J111 is configured as a single N-channel junction field-effect transistor (JFET).

The J111 is suitable for applications such as industrial control circuits, electronic measurement devices, and laboratory instrumentation.

The J111 comes in a TO-92 package type, which is compact and facilitates easy PCB integration.

The J111 transistor has a pin count of 3, consistent with its through-hole mount design.

The J111 is manufactured in India, as indicated by its country of origin.
