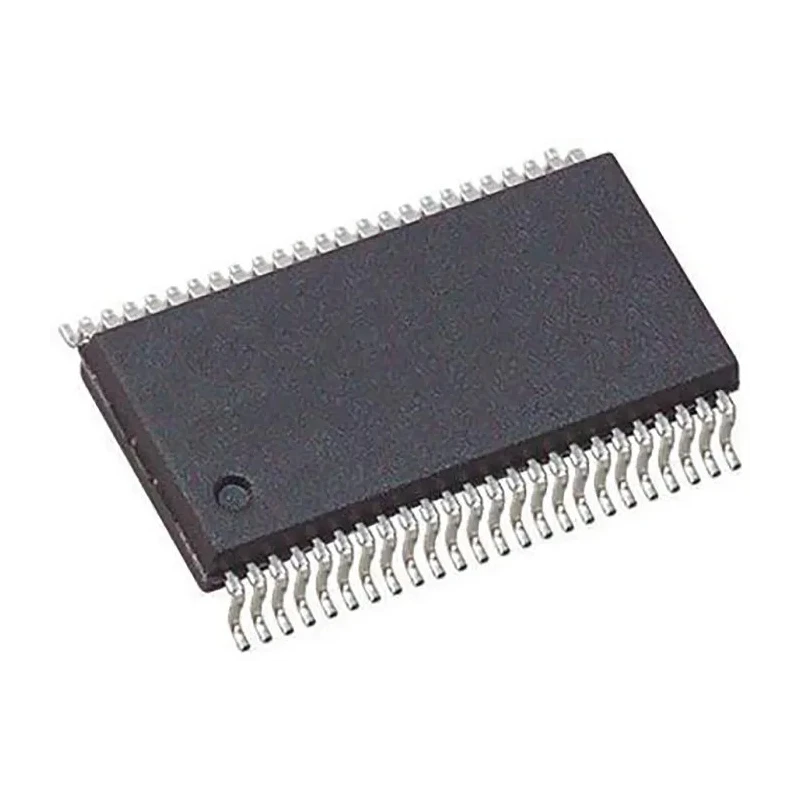

Texas Instruments 4-Channel Buffer & Line Driver, 3 State, Non-Inverting, 48-Pin TSSOP SN74LVTH16244ADGGR

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 4-Channel Buffer & Line Driver, 3 State, Non-Inverting, 48-Pin TSSOP SN74LVTH16244ADGGR

Name: Texas Instruments 4-Channel Buffer & Line Driver, 3 State, Non-Inverting, 48-Pin TSSOP SN74LVTH16244ADGGR
Brand: Texas Instruments
SKU: 315460
Price: 1746 INR
Availability: InStock



Category Semiconductors Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.2mm
Length	12.6mm
Model	SN74LVTH16244ADGGR
Width	6.2mm
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output LVTTL
Output type	3 State
Series	SN74LVTH16244A
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
IC Type	Buffer & Line Driver IC
Number Of Channels	4
Pin Count	48
Maximum Supply Voltage	3.6V
Logic Family	74LVT
Logic Function	Buffer & Line Driver
Minimum Supply Voltage	2.7V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	6.2ns
Supply Current	5mA
Maximum Low Level Output Current	64mA

Key Features

Operates within a supply voltage range of 2.7V to 3.6V.
Features 4 independent buffer and line driver channels.
Non-inverting output with 3-state logic functionality.
Propagation delay time of 6.2ns at capacitive load.
Designed for surface mount technology with a compact 48-pin TSSOP package.
CMOS input type compatible with LVTTL/TTL inputs.
High operating temperature range from -40°C to 125°C.
Low supply current consumption of approximately 5mA.

Product Description

Texas Instruments SN74LVTH16244ADGGR is a 4-channel buffer and line driver featuring 3-state, non-inverting logic functions, designed for surface mount applications. This device operates on a low-voltage BiCMOS logic family 74LVT with an operating supply voltage between 2.7V and 3.6V. The device supports CMOS input and is compatible with input LVTTL/TTL and output LVTTL logic levels, making it suitable for diverse electronic circuit applications.

The SN74LVTH16244ADGGR provides buffering and line driving capabilities for signal integrity and noise reduction in communication lines. It features multiple channels allowing independent signal buffering in a compact 48-pin TSSOP package with dimensions of 12.6mm length, 6.2mm width, and 1.2mm height. Operating temperatures range from -40°C to 125°C, ensuring reliability in harsh industrial environments.

The device delivers a maximum high-level output current of -32mA and a maximum low-level output current of 64mA, with a propagation delay time of 6.2ns at a specified capacitive load. This makes it ideal for high-speed applications in industrial, manufacturing, and electronic communication fields. It consumes a low supply current of approximately 5mA to maintain energy efficiency.

Operates within 2.7V to 3.6V supply voltage range. 4 independent buffer and line driver channels enhance signal management. Non-inverting 3-state output logic supports advanced digital circuit design. Compact 48-pin TSSOP surface mount package for space-saving PCB design.

High-temperature tolerance ensures performance in industrial conditions. Compatible with CMOS inputs and LVTTL/TTL logic standards. Low power consumption promotes energy efficiency in electronic systems. Suitable for diverse industrial, laboratory, and manufacturing applications.

Choose the Texas Instruments SN74LVTH16244ADGGR for reliable buffering and line driving solutions in advanced electronic interface IC designs. Explore a range of semiconductor solutions for industrial and commercial electronics on EnvMart.
