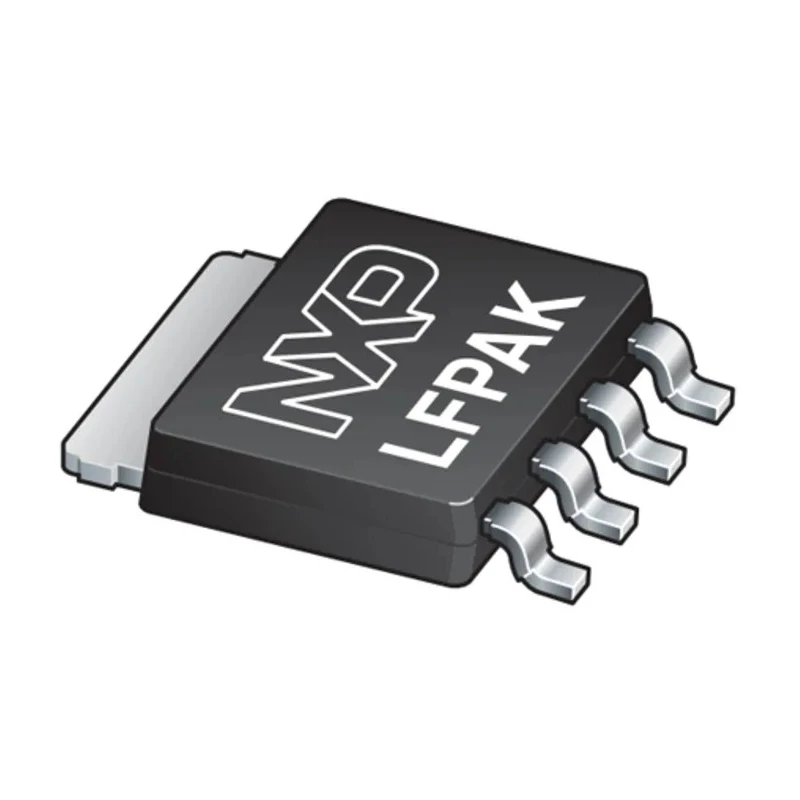

Nexperia N-Channel MOSFET 89 A 60 V Enhancement Mode 4-Pin SOT-669 Surface Mount PSMN7R0-60YS,115
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 5mm |
| Model | PSMN7R0-60YS,115 |
| Width | 4.1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | SOT-669 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 89A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 10.2mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 117W |
| Typical Gate Charge Qg @ Vgs | 45nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Vishay N-Channel MOSFET, 60 A, 80 V PowerPAK SO-8L SIJ482DP-T1-GE3Brand | Vishay |
Key Features
- Supports a maximum continuous drain current of 89 amperes.
- Offers a maximum drain-source voltage of 60 volts for reliable operation.
- Features an enhancement mode with low drain-source resistance of 10.2 milliohms.
- Packaged in a compact 4-pin SOT-669 surface mount package.
- Maximum power dissipation rating of 117 watts ensures robust performance.
- Operates within a wide temperature range from -55°C to 175°C.
- Typical gate charge of 45 nanocoulombs at 4.5 volts gate-source voltage.
- Maximum gate-source voltage rating of ±20 volts ensures gate protection.
Product Description
Nexperia PSMN7R0-60YS,115 is a high-performance N-Channel MOSFET transistor designed for demanding electronic and power management applications. It supports a maximum continuous drain current of 89 amperes and a maximum drain-source voltage of 60 volts. Its enhancement mode operation and low on-resistance of 10.2 milliohms provide efficient switching and power handling.
This MOSFET is housed in a 4-pin SOT-669 surface mount package, facilitating compact PCB designs and ease of assembly in modern electronics. It has a typical gate charge of 45 nanocoulombs at 4.5 volts gate-source voltage which allows for fast switching performance in power conversion and motor control applications.
The device supports a maximum power dissipation of 117 watts and operates reliably across a wide temperature range from -55°C to 175°C, making it suitable for harsh industrial, automotive, and consumer electronics environments. It includes built-in protection with a maximum gate-source voltage rating of ±20 volts.
Its compact physical dimensions - 5 mm length, 4.1 mm width, and 1.1 mm height - allow integration into space-constrained systems. This MOSFET is made in the Philippines, adhering to strict quality standards though no specific certifications are listed.
Applications include power management in industrial machinery, automotive electronics, DC-DC converters, and other high-efficiency switching circuits. The product is ideal for engineers and designers requiring a reliable power transistor with robust electrical and thermal characteristics.
Supports a maximum continuous drain current of 89 amperes. Maximum drain-source voltage of 60 volts. Enhancement mode operation with low drain-source resistance of 10.2 milliohms. 4-pin SOT-669 surface mount package for compact design.
Maximum power dissipation of 117 watts for robust operation. Wide operating temperature range from -55°C to 175°C. Typical gate charge of 45 nanocoulombs at 4.5 volts. Maximum gate-source voltage of ±20 volts. Compact dimensions: 5 mm length, 4.1 mm width, 1.1 mm height.
Explore more electronic components and power semiconductors on EnvMart for your industrial and commercial projects.
Explore more products in our Power MOSFET category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 89 amperes.
It has a maximum drain-source voltage rating of 60 volts.
This model is packaged in a compact 4-pin SOT-669 surface mount package.
The maximum power dissipation rating is 117 watts.
The typical gate charge at a gate-source voltage of 4.5 volts is 45 nanocoulombs.
It operates within a wide temperature range from -55°C to 175°C.
The low drain-source resistance is rated at 10.2 milliohms.
The maximum gate-source voltage rating is ±20 volts.
The dimensions are 5 mm in length, 4.1 mm in width, and 1.1 mm in height.
It is suitable for applications in power management for industrial machinery, automotive electronics, and DC-DC converters.
This model features an N-channel type configuration.
The PSMN7R0-60YS,115 is manufactured in the Philippines.
