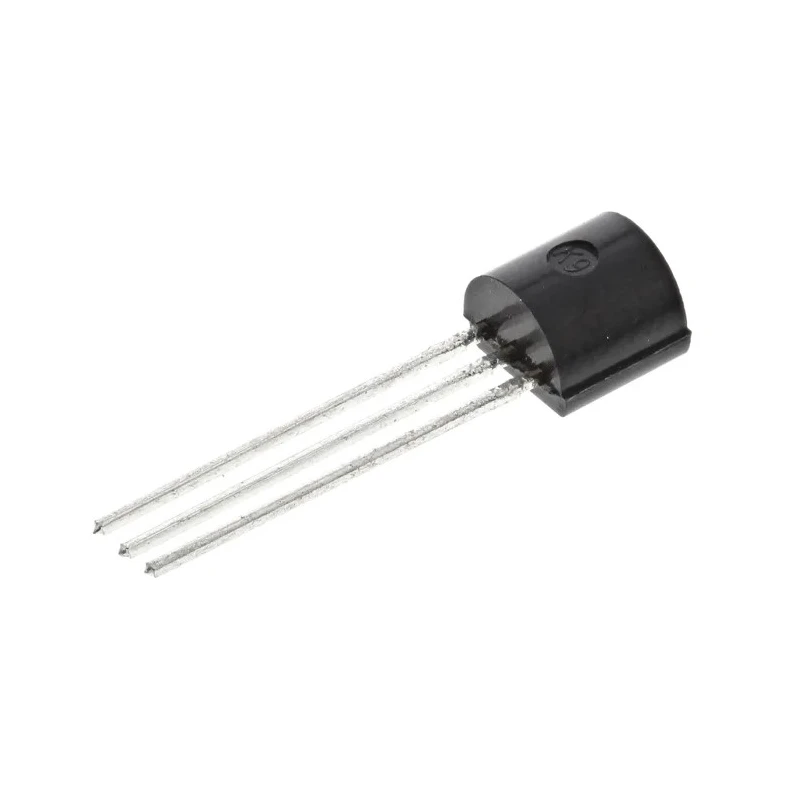

onsemi Small Signal NPN Bipolar Transistor 800 mA 50 V TO-92 Package BC33725BU

onsemi BC33725BU is a high-quality NPN bipolar junction transistor designed for small signal amplification and switching applications. This transistor supports a maximum DC collector current of 800 mA and a collector emitter voltage of 50 V, making it suitable for low to moderate power electronic circuits.

The transistor is housed in a TO-92 package with 3 pins, providing an efficient through hole mount solution. Its robust thermal characteristics include maximum power dissipation of 625 mW and operating temperatures from 0°C to 150°C, enabling reliable performance under varying environmental conditions.

Boasting a minimum current gain of 60 and a transition frequency of 100 MHz, the BC33725BU transistor is apt for high frequency and amplification tasks. Its compact size with dimensions of 20.95 mm height, 5.3 mm length, and 4.19 mm width supports space-conscious PCB designs.

This transistor's single configuration and NPN polarity make it suitable for diverse industrial, communication, and consumer electronics projects requiring efficient control and switching capabilities.

The BC337 series by onsemi provides consistent quality and reliable operation, making it a popular choice among electronic component engineers and designers. This transistor supports a maximum power dissipation of 625 mW ensuring reliable performance under typical operating conditions.

It features a minimum DC current gain (hFE) of 60 for efficient amplification in circuits. The maximum transition frequency is 100 MHz, suitable for high frequency applications. It operates effectively between 0°C and 150°C, providing wide temperature range stability.

The compact TO-92 package dimensions are height 20.95 mm, length 5.3 mm, and width 4.19 mm, facilitating easy integration on PCB setups. Designed as a NPN single transistor configuration, ideal for general-purpose amplification and switching.

The device meets lightweight and compact design requirements for modern electronic circuits. Package is through hole mount type, facilitating traditional PCB assembly processes.

This transistor is widely used in industrial electronics, power management, consumer devices, and communication equipment. Its proven performance and onsemi’s manufacturing excellence ensure stable operation and easy integration in new or existing designs.

For professionals sourcing reliable Bipolar Transistors, the BC33725BU offers a balanced combination of power handling, gain, and thermal stability supported by onsemi’s quality standards. Explore the range of onsemi semiconductors and components at EnvMart to find compatible and complementary devices for your project needs.
