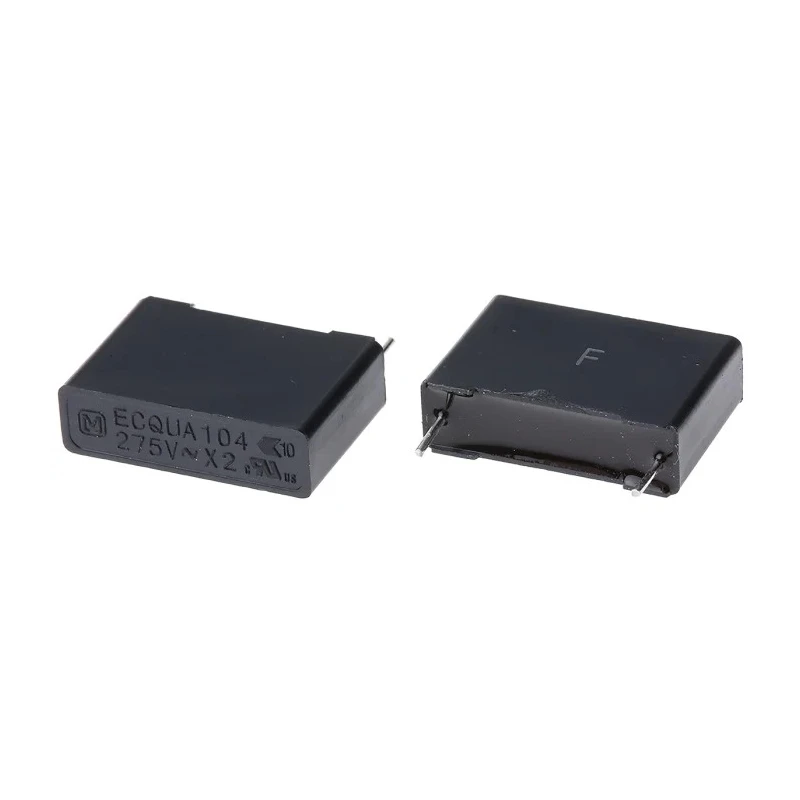

Panasonic ECQUA Film Capacitor X2, ±20 % Tolerance, 100 nF 275V AC Through Hole ECQUAAF104MA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 12mm |
| Length | 17.5mm |
| Model | ECQUAAF104MA |
| Packaging | Bag |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | ECQUA |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±20 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.1% |
| Rated AC Voltage | 275V ac |
| Lead Pitch | 15mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
Key Features
- Capacitance value of 100 nF with ±20 % tolerance suitable for filtering and noise suppression.
- Rated for 275V AC operation with X2 suppression class for interference suppression.
- Through Hole mounting with 15mm lead pitch and 0.6mm lead diameter for easy PCB insertion.
- Operating temperature range from -40°C to 110°C for diverse application environments.
- Complies with UL 60384-14, EN 60384-14, and CSA E60384-14 standards for safety and quality.
- Flame retardant plastic case and non-combustible resin for enhanced safety.
- Leads cropped to 4 mm length for convenient assembly in interference suppressors.
- Suitable for industrial, electronic, and HVAC use in noise and interference reduction circuits.
Product Description
Panasonic ECQUAAF104MA Film Capacitor X2 is a high-reliability component designed for interference suppression in electronic circuits. It features a capacitance of 100 nF with a tolerance of ±20 % and is rated for 275V AC operation. The capacitor is mounted through hole with a 15 mm lead pitch, making it ideal for printed circuit board assembly.
This capacitor series (ECQUA) includes a flame retardant plastic casing and uses a non-combustible resin, enhancing safety during operation. The leads are precut to 4 mm, facilitating easy insertion in interference suppressors and other noise reduction applications.
The product complies with international safety standards UL 60384-14, EN 60384-14, and CSA E60384-14, and the automotive standard AEC-Q200, ensuring high quality and reliability for automotive and industrial electronics.
The capacitor operates reliably over a wide temperature range from -40°C to 110°C, suitable for demanding operating environments. Capacitance value of 100 nF with ±20 % tolerance suitable for filtering and noise suppression.
Rated for 275V AC operation with X2 suppression class for interference suppression. Through Hole mounting with 15mm lead pitch and 0.6mm lead diameter for easy PCB insertion. Operating temperature range from -40°C to 110°C for diverse application environments.
Complies with UL 60384-14, EN 60384-14, and CSA E60384-14 standards for safety and quality. Compact dimensions: 17.5mm length, 12mm height, 5mm width. Flame retardant plastic case and non-combustible resin for enhanced safety.
Leads cropped to 4 mm length for convenient assembly in interference suppressors. Suitable for industrial, electronic, and HVAC use in noise and interference reduction circuits.
This film capacitor is widely used in electronics manufacturing, power supply units, and industrial equipment where AC noise suppression is critical. It helps reduce electromagnetic interference and ensures stable operation in various commercial and industrial applications.
Explore our comprehensive catalog of Film Capacitors and related electronic components at EnvMart to find compatible parts for your project or manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100 nF with a tolerance of ±20%.
It is rated for 275V AC operation, suitable for interference suppression applications.
This unit has dimensions of 17.5mm in length, 12mm in height, and 5mm in width.
The lead pitch is 15mm and the lead diameter is 0.6mm, designed for easy PCB insertion.
It operates reliably within a temperature range of -40°C to 110°C.
This model complies with UL 60384-14, EN 60384-14, CSA E60384-14, and the automotive standard AEC-Q200.
It features a through hole mounting type, suitable for printed circuit board assembly.
It has a flame retardant plastic case and uses a non-combustible resin for enhanced safety.
The dissipation factor for this model is 0.1%.
It is suitable for industrial, electronic, and HVAC use in noise and interference reduction circuits.
The terminal type is through hole, facilitating easy assembly in various applications.
The leads are cropped to a length of 4 mm for convenient assembly in interference suppressors.
