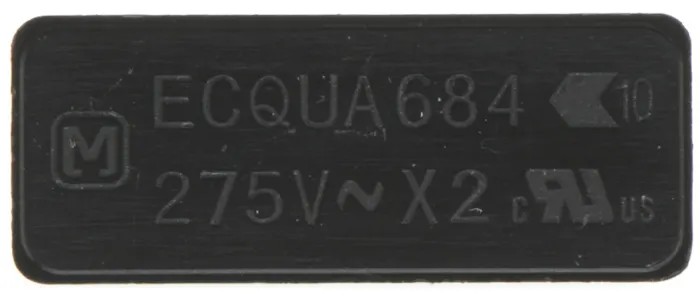

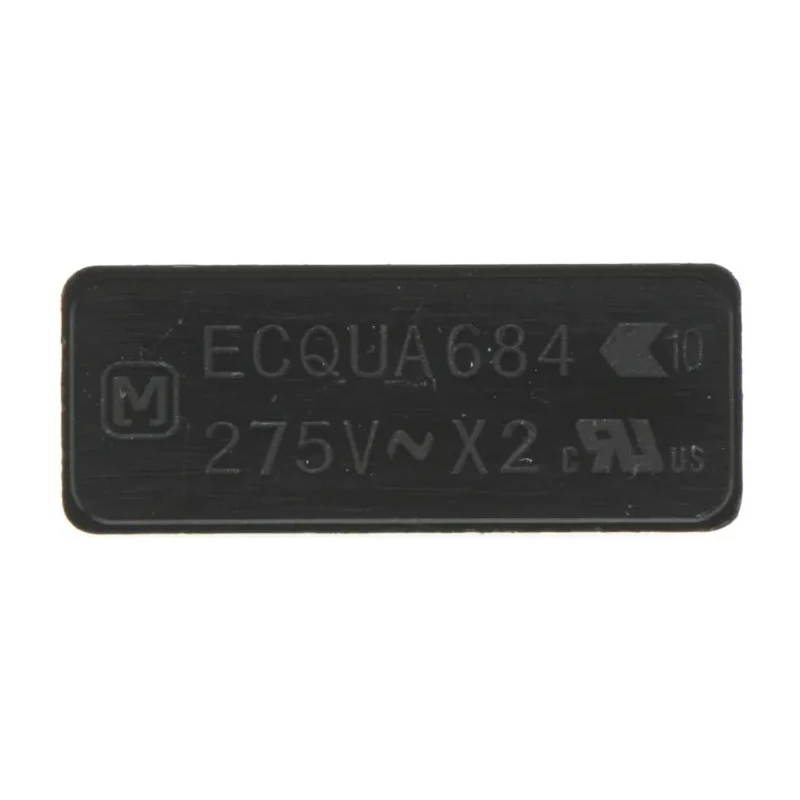

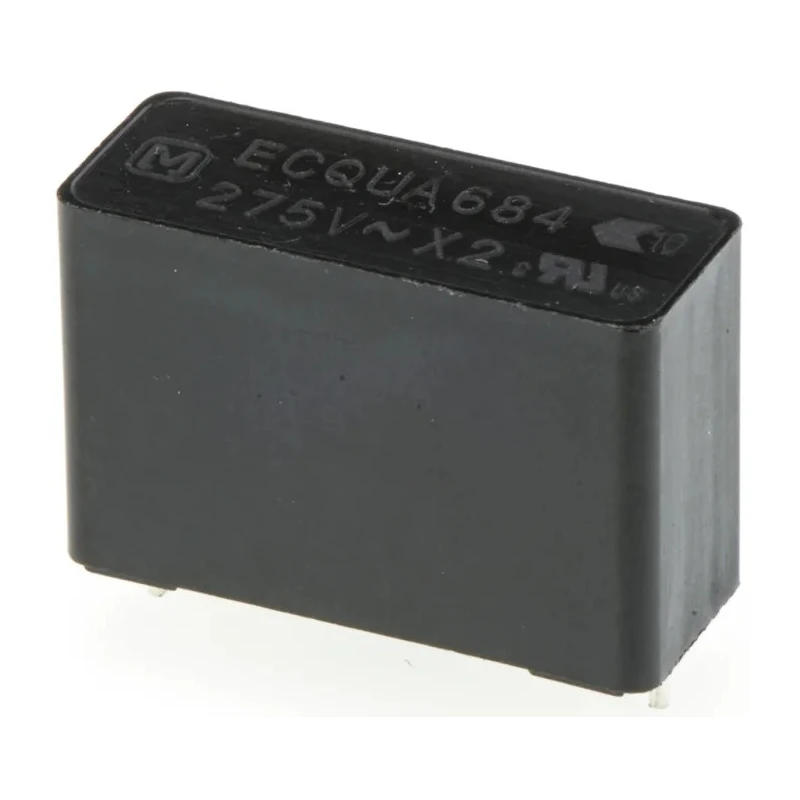

Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 680 nF, 275V AC, Through Hole Mount ECQUAAF684KA

Panasonic ECQUAAF684KA is a film capacitor from the ECQUA X2 suppression series designed for reliable interference suppression in electronic circuits operating at mains supply voltages.

This capacitor features a capacitance of 680 nF with a tolerance of ±10%, ensuring consistent performance in filtering applications. It is rated for an AC voltage of 275 volts, making it suitable for direct connection across mains power lines where electromagnetic interference requires attenuation.

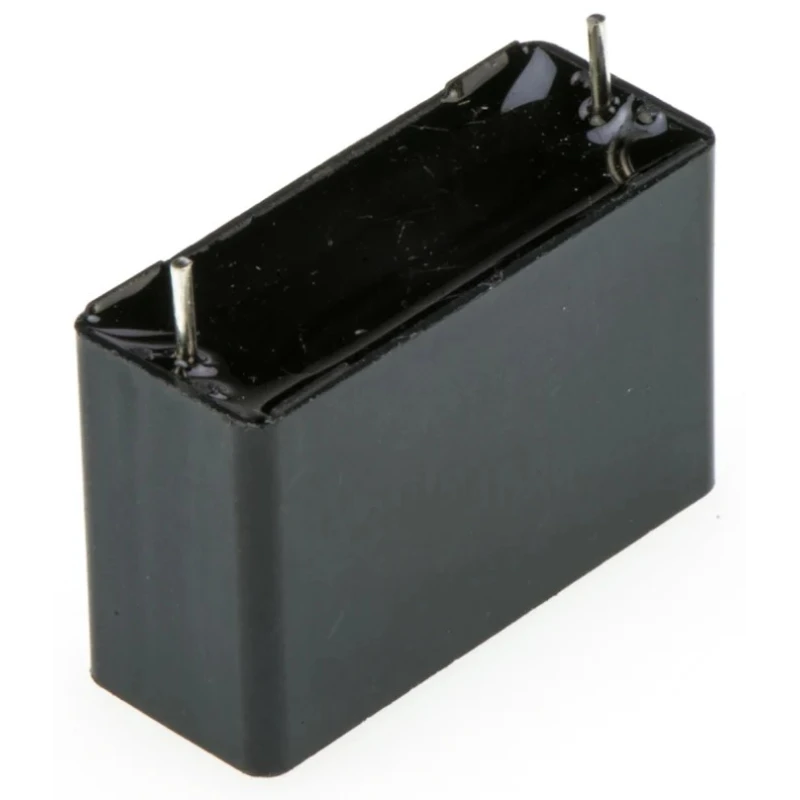

The component utilizes a through hole mounting type with a lead pitch of 22.5 mm and leads cropped to 4 mm length for efficient PCB assembly and soldering. The capacitor construction includes a flame retardant plastic case and non-combustible resin, enhancing safety and durability.

Operating temperatures range between -40°C and 110°C, supporting use in industrial, automotive, and consumer electronics environments. It conforms to the automotive AEC-Q200 standard, indicating robustness and reliability under rigorous conditions.

The ECQUA series is approved by UL, CSA, and VDE standards, assuring compliance with international safety and quality regulations. This capacitor is mainly applied in interference suppression coils to reduce electromagnetic noise and ensure electromagnetic compatibility in electrical systems.

Capacitance value is 680 nF ensuring reliable filtering performance. Rated AC voltage of 275 volts suitable for mains supply interference suppression. Manufactured to ±10% capacitance tolerance for precision applications.

Through hole mounting type for durable and secure PCB installation. Compliance with automotive standard AEC-Q200 ensures high reliability. Operating temperature range from -40°C to 110°C for versatile environmental usage.

ECQUA series features flame retardant plastic housing with non-combustible resin. Lead pitch is 22.5 mm with leads cropped to 4 mm length for compact assembly. Approved under UL, CSA, and VDE standards for safety and quality assurance.

Ideal for use in interference suppression coils to reduce electromagnetic noise.

This product is well-suited for industrial equipment, automotive electronics, power supply filters, and other applications requiring robust interference suppression components. Explore the Ecqua Film Capacitor range for advanced capacitor solutions at EnvMart.
