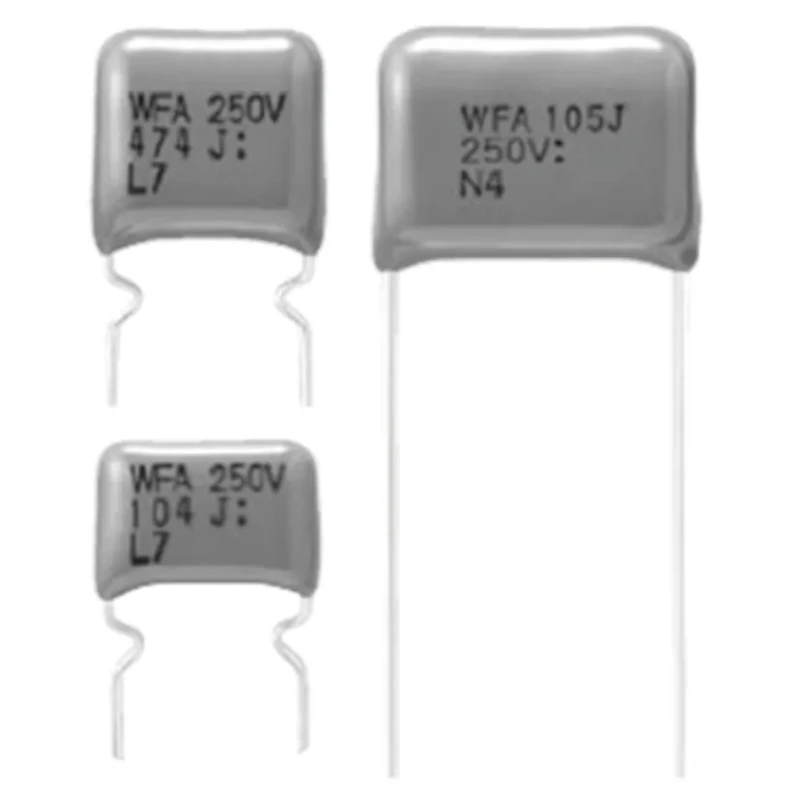

Panasonic ECWF(A) Film Capacitor, 220 nF, ±5% Tolerance, 250 V DC, Through Hole ECWF2224JAQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 19.9mm |
| Length | 13mm |
| Model | ECWF2224JAQ |
| Packaging | Bag |
| Width | 6.3mm |
| Mount Type | Through Hole |
| Series | ECWF(A) |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.1% |
| Rated DC Voltage | 250V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact metallised polypropylene film design ensures low loss and low noise.
- Rated for operating temperatures from -40°C to 105°C for reliable performance.
- Safety constructed with encapsulation in UL94V-0 self-extinguishing material.
- Lead pitch of 10 mm and lead diameter of 0.6 mm ensures secure through-hole mounting.
- Complies with automotive standard AEC-Q200 and international safety approvals.
- Ideal for active filter circuits and high frequency, high current applications.
Product Description
Panasonic ECWF2224JAQ Film Capacitor is a metallised polypropylene film capacitor with a capacitance of 220 nF and a tolerance of ±5%. It is rated for 250 V DC and features a through-hole mounting style. Designed for use in high-frequency and high-current circuits, this capacitor offers excellent frequency characteristics with low dissipation factor of 0.1%, ensuring minimal energy loss and stable performance.
This capacitor is compact, being 50% smaller than comparable series, and coated with powder resin for enhanced durability. The encapsulation complies with UL94V-0 for self-extinguishing safety. Its operating temperature range from -40°C to 105°C makes it suitable for a variety of industrial and automotive applications, meeting the stringent AEC-Q200 automotive standard.
Panasonic ECWF2224JAQ is ideal for active filter circuits and high-frequency environments, supporting 250 V DC and 630 V DC high current circuits as well as 450 V DC active filter circuits. The robust construction and precise manufacturing standards make it a reliable choice for electronics manufacturing, laboratory, and industrial projects.
Compact metallised polypropylene film for low noise and loss. Compliance with CSA E60384-14, EN 60384-14, and UL 60384-14 safety standards. Lead pitch of 10 mm for secure through hole mounting. Encapsulated in flame-retardant material.
Designed for both industrial electronics and automotive applications. High frequency and high current circuit compatibility. Temperature range from -40°C to 105°C for extended reliability.
Set specifications include exact dimensions with height of 19.9 mm, length of 13 mm, width of 6.3 mm, and lead diameter of 0.6 mm to fit seamlessly into PCB layouts. The dissipation factor is rated at just 0.1% ensuring efficiency.
Explore the Panasonic range of Film Capacitors at EnvMart for reliable, compact, and efficient components suited for advanced electronic assembly and maintenance requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic ECWF2224JAQ has a capacitance value of 220 nF.
This capacitor is rated for a DC voltage of 250 V.
It operates within a temperature range of -40°C to 105°C.
The lead pitch is 10 mm, and the lead diameter is 0.6 mm, suitable for through-hole mounting.
The dissipation factor is rated at just 0.1%, ensuring minimal energy loss.
It complies with the AEC-Q200 automotive standard, suitable for automotive applications.
The dimensions are 19.9 mm in height, 13 mm in length, and 6.3 mm in width.
This model uses a through-hole mounting style.
It features a metallised polypropylene film design and is encapsulated in UL94V-0 self-extinguishing material.
It is ideal for active filter circuits and high-frequency, high-current applications.
Yes, it is designed for both industrial electronics and automotive applications.
The Panasonic ECWF2224JAQ is packaged in a bag.
