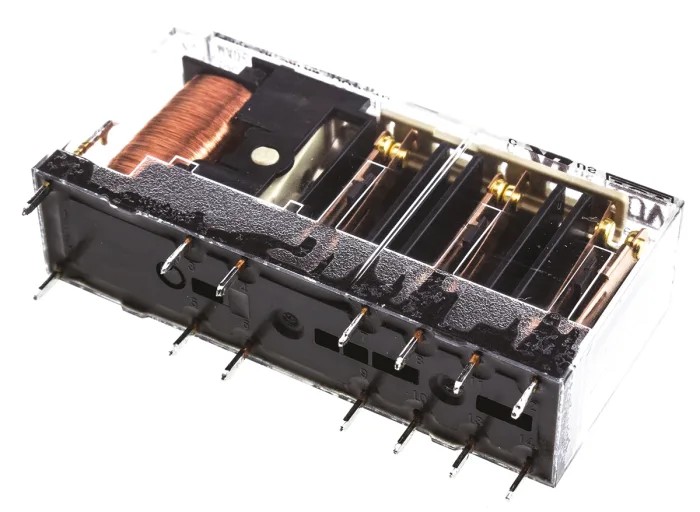

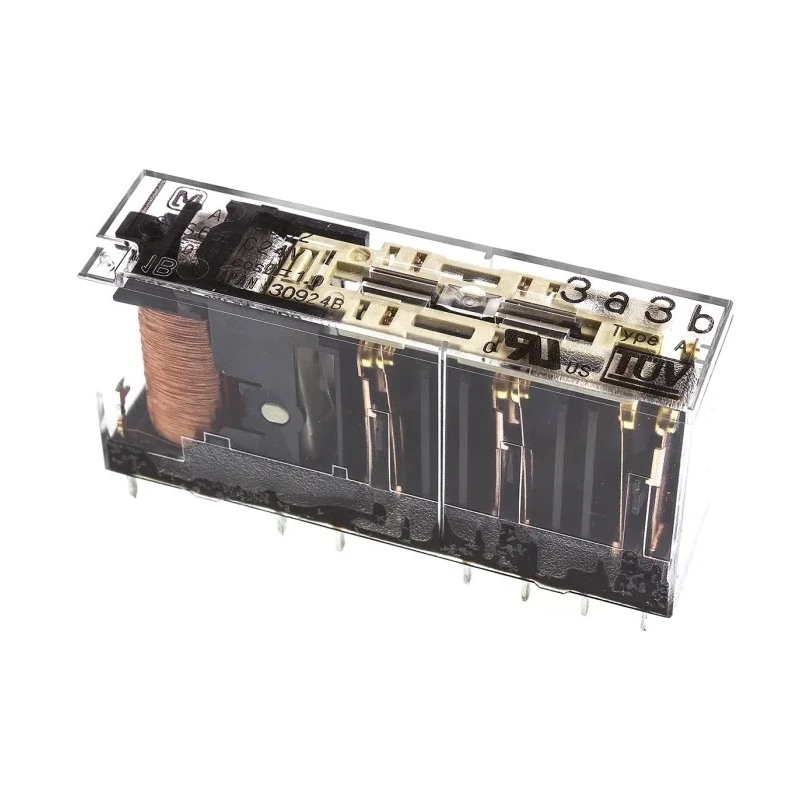

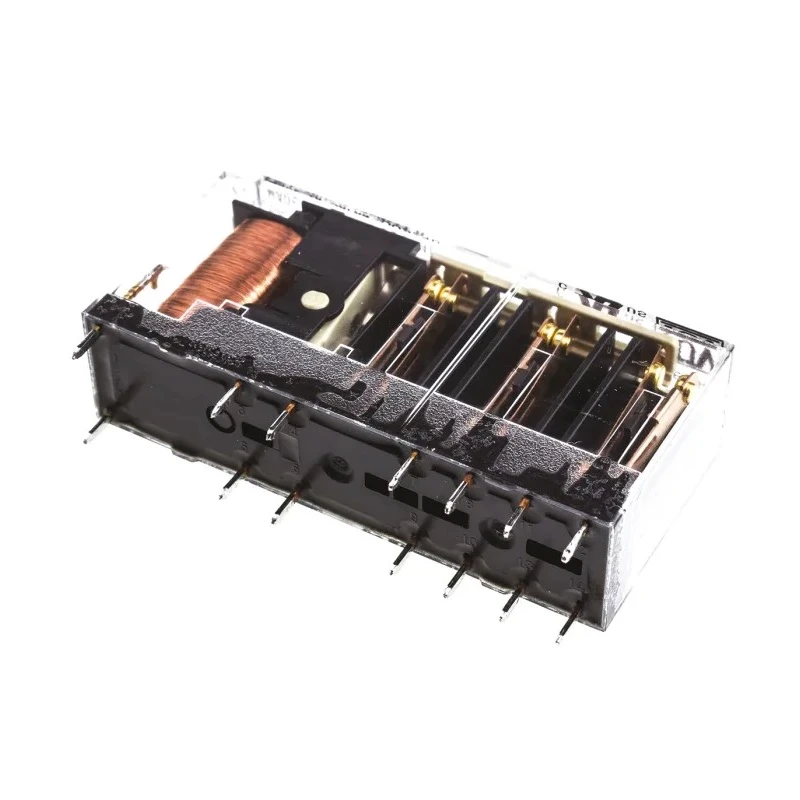

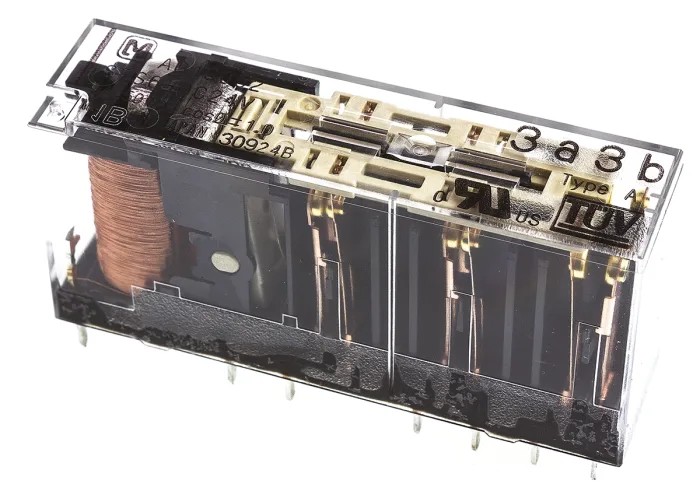

Panasonic PCB Force Guided Relay 24V DC Coil Voltage 6-Pole 3PDT SFS6-DC24V

Panasonic SFS6-DC24V PCB Force Guided Relay is engineered for high safety and reliability in automation and industrial electronics. Featuring a 24V DC coil voltage and six poles, this relay supports complex switching with a 3PDT contact configuration. Its gold-plated contacts ensure excellent electrical conduction and durability, suitable for demanding applications such as machine tools, safety PLCs, and motor vehicle production equipment.

The relay is mounted on PCB with through-hole terminals, providing a slim profile form factor (50mm length, 24mm height, and 13mm depth) that facilitates integration into compact circuit designs. It operates efficiently at coil power of 500mW and coil resistance of 1.152 kΩ. It withstands a wide operating temperature range from -40°C to 85°C, ensuring stable performance in harsh environments.

Safety is further enhanced by its forcibly guided contact structure and isolation of coil to contact rated at 4kVrms. With a nominal switching capacity of 6A at 250Vac and maximum switching power of 180W, it is ideal for signal conditioning and safety relay functions requiring high shock resistance (minimum 200m/s² functional shock). The quick response time of 8 ms or less improves operational speed in critical system applications.

This relay belongs to the SF series known for slim, compact designs with built-in LED indication and diode options (not included in this model). Panasonic's manufacturing quality from Japan ensures reliability and conformity to safety standards. Suitable for industrial, laboratory, and automation applications, this relay offers a dependable solution for PCB mounting requirements with demanding safety criteria.

3PDT contact configuration supports complex switching tasks. Gold-plated contacts resist corrosion for longer service life. Coil resistance of 1.152 kΩ and power consumption of 500mW. Wide temperature operation from -40°C to 85°C with high shock resistance.

Compact dimensions optimized for PCB mounting: 50mm x 24mm x 13mm. Coil-to-contact isolation rated at 4kVrms for enhanced safety. Nominal switching capacity of 6A at 250Vac suitable for industrial loads. Fast response time of 8 ms or less for timely switching actions.
