Texas Instruments General Purpose Comparator Open Drain Output 45ns 3V-5.5V 5-Pin SC-70 LMV7235M7/NOPB

Texas Instruments LMV7235M7/NOPB is a high-performance general purpose comparator with an open drain output configuration. Featuring a fast response time of 45 ns, this device supports supply voltages from 3 V to 5.5 V and operates within a temperature range of -40°C to 85°C, making it suitable for robust industrial and commercial electronics.

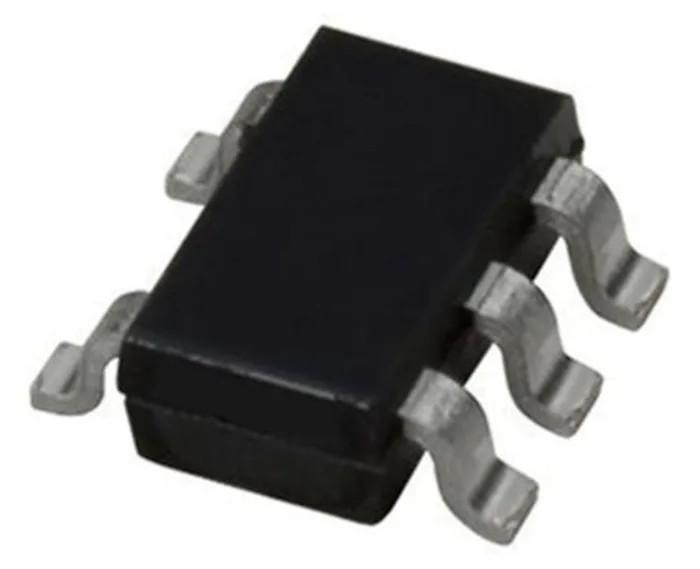

Encapsulated in a 5-pin SC-70 surface mount package measuring 2 mm in length, 1.25 mm in width, and 0.9 mm in height, this compact component is ideal for applications where PCB space is at a premium. It provides a single channel comparator capability with low supply current consumption of 110µA, enhancing efficiency in battery-powered and low-power systems.

The open drain output allows for flexible interfacing, including wired-AND logic and level shifting. The device is designed for rapid switching and saturation operation, supporting various industrial, laboratory, and instrumentation applications including signal monitoring, threshold detection, and control systems.

This comparator comes in a compact 5-pin SC-70 surface mount package. It has a single channel with an open drain output type suitable for various switching applications. The device operates reliably between -40°C and 85°C.

Typical supply current is only 110μA, ensuring low power consumption. The small dimensions (2 mm length, 1.25 mm width, and 0.9 mm height) make it ideal for space-constrained designs. No automotive standard certification is included for this device.

The comparator is designed for rapid switching with short propagation delay. Wide operating voltage range supports diverse electronic circuits.

This product finds use in electronics manufacturing, industrial automation, instrumentation, and prototype development environments. It is suitable for applications requiring accurate and fast voltage comparison with low power overhead in compact circuits.
