Texas Instruments 4 2-Input AND Logic Gate, 14-Pin SOIC, Surface Mount SN74HCT08DR

Texas Instruments SN74HCT08DR is a 4 2-input AND logic gate integrated circuit housed in a 14-Pin SOIC surface mount package, designed using high-speed CMOS silicon gate technology. It offers low power consumption and compatibility with TTL inputs while providing CMOS push-pull output.

This logic IC is ideal for use in digital circuits requiring multiple AND logic gates, supporting operating voltages from 4.5V to 5.5V and functioning reliably in ambient temperatures ranging from -40°C to 85°C.

Featuring a maximum propagation delay of 27 nanoseconds, the device supports high-speed switching performance essential in industrial, electronic instrumentation, and computing systems.

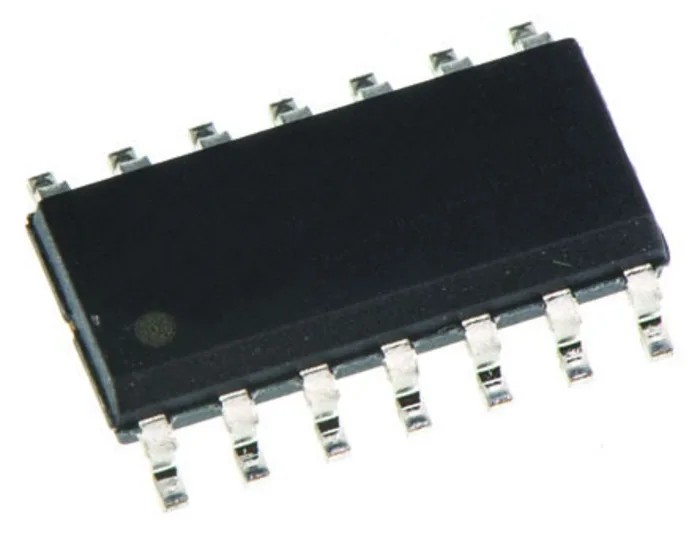

The compact SOIC package measures 8.65mm in length and 1.58mm in height, supporting space-efficient PCB designs. It lacks Schmitt trigger inputs, focusing solely on standard logic behavior with 2 inputs per gate and 4 gates per IC.

High-speed CMOS logic with low power consumption. Four 2-input AND gates per package for versatile digital logic applications. TTL compatible inputs and CMOS push-pull outputs ensure robust interfacing. Wide operating temperature makes it suitable for industrial electronics.

Compact 14-Pin SOIC surface mount package for PCB space savings. Maximum output currents of -4mA (high) and 4mA (low) maintain signal reliability. No Schmitt trigger inputs to simplify design considerations. Operating voltage range is 4.5V to 5.5V, standard for 74HCT family devices.

Maximum propagation delay of 27ns supports fast switching circuits. Typically used in digital logic circuits, computer hardware, industrial control systems, and embedded systems.

This product is a new component from Texas Instruments, intended for use in electronics manufacturing, repair, and design environments requiring standard 74HCT family logic devices. It belongs in the Logic Gate category of semiconductor components.
