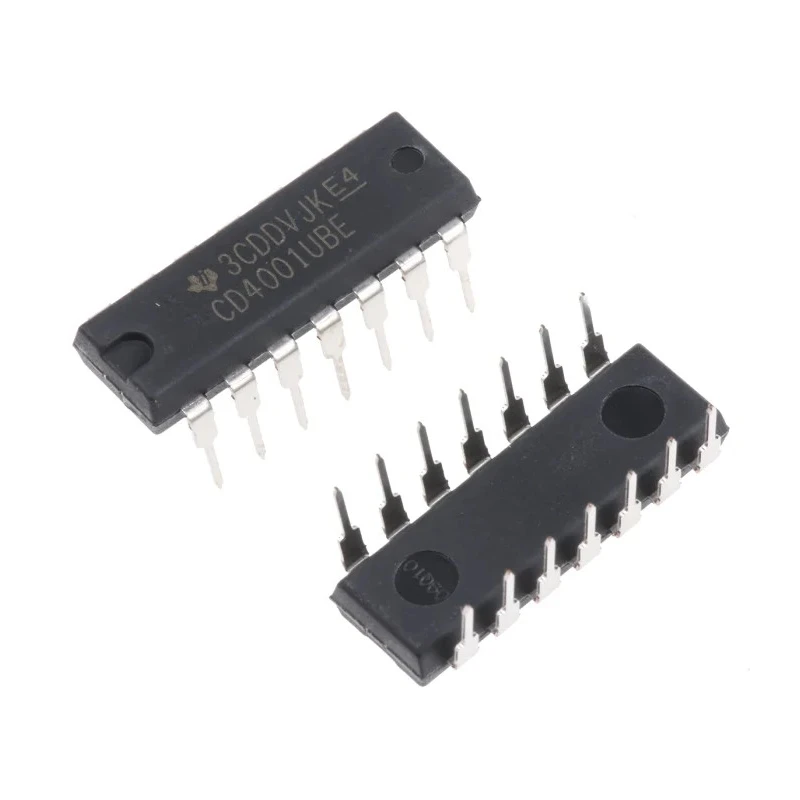

Texas Instruments 4 2-Input NOR Logic Gate, 14-Pin PDIP CD4001UBE

Texas Instruments CD4001UBE is a 4 2-Input NOR Logic Gate integrated circuit from the renowned 4000 CMOS logic family, housed in a 14-pin PDIP package designed for through-hole mounting.

This logic gate IC operates over a wide supply voltage range from 3V to 18V, offering flexibility for diverse digital electronic applications including industrial control systems, digital signal processing, and logic circuit design.

The device features four independent NOR gates, each with two inputs, making it suitable for complex digital logic implementations where NOR function is required.

The CD4001UBE offers a maximum propagation delay time of 80 nanoseconds under typical load conditions, which provides efficient logic switching speeds for various timing requirements.

Operating temperature range from -55°C up to 125°C ensures stable functionality even in harsh environments. The logic family 4000 CMOS series is widely appreciated for its low power consumption and robustness against electrical noise.

The absence of Schmitt trigger inputs indicates it is best used in circuits without the need for noise filtering on input signals. This IC is ideal for applications in electronics design laboratories, industrial electronic devices, and educational projects requiring reliable logic implementation.

This device contains four independent 2-input NOR gates in a 14-pin PDIP package. Wide operating voltage range from 3V to 18V for versatile applications. Standard through-hole mounting compatible 14-pin DIP package for easy prototyping.

Maximum propagation delay is 80 nanoseconds for efficient logic timing. Operating temperature range of -55°C to 125°C for robust environmental performance. Low power CMOS input type logic family 4000 series IC. Maximum high level output current of -4.2mA and low level output current of 4.2mA.
