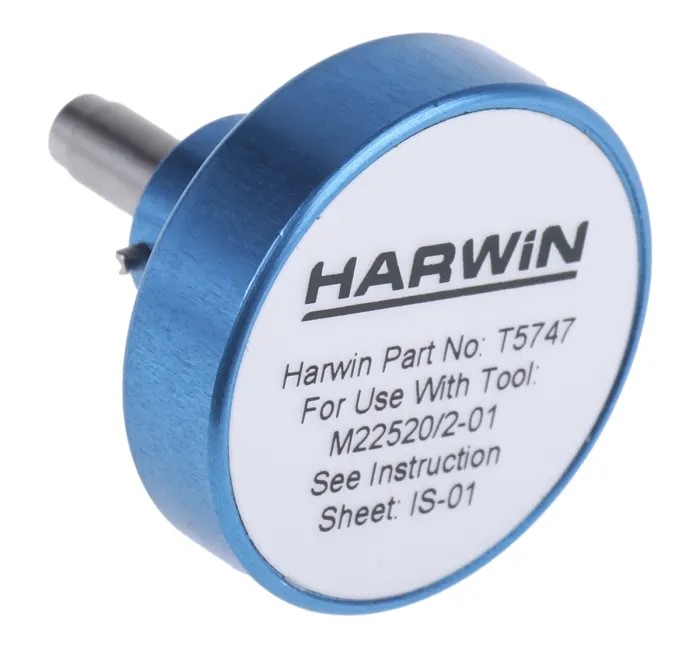

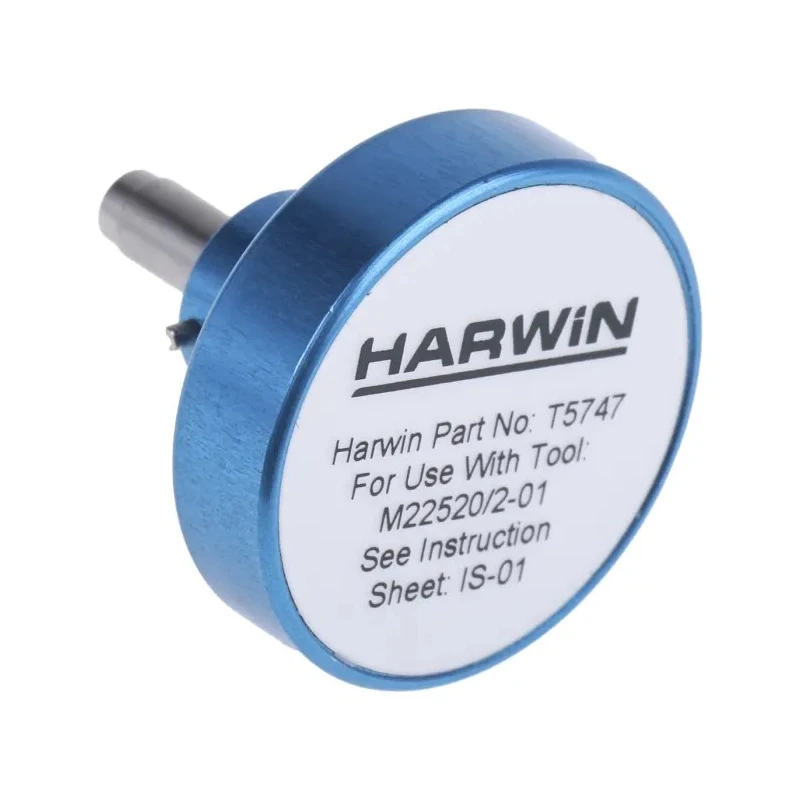

HARWIN Crimp Tool Positioner 1 Way Positioner T5747
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Model | T5747 |
| Sub Type | Positioner |
| Number of Contacts | 1 |
| • Datemate L-Tek Series | male and female signal crimp contacts |
| • Datemate J-Tek Series | female signal crimp contacts |
Key Features
- Produces crimps according to MIL-DTL-22520/2-01 standards.
- Wide wire size range supports 20-32 AWG cables.
- Equipped with an 8-step selector knob for precise crimp depth adjustment.
- Ratchet mechanism ensures a complete crimp cycle for consistent quality.
- Requires minimal maintenance with periodic lubrication recommended.
- Compatible with Datamate L-Tek, J-Tek, and Mix-Tek series signal crimp contacts.
- Positioner locks firmly in place to assure accurate crimping.
- Ideal for maintenance, electrical installations, computer interfacing, and cable assemblies.
Product Description
HARWIN T5747 Crimp Tool Positioner 1 Way Positioner is a high-precision hand crimp tool accessory designed for use with HARWIN M22520/2-01 compliant hand crimp tools. This positioner is engineered to support crimping turned D-sub male and female coaxial inner contacts and signal contacts, ensuring reliable and high-quality electrical connections for demanding industrial applications.
The crimping tool incorporates a ratchet mechanism that prevents premature release before completing the full crimp cycle, thereby ensuring consistent and gas-tight crimps that resist vibration and provide strain relief. An 8-indent selector knob is included to allow users to select from eight crimp depth settings, optimizing crimps according to wire size between 20 and 32 AWG.
This positioner securely locks in place using a positioner guide for precise alignment, independently purchased as RS stock no: 909-4489. Its compatibility extends to a broad set of Datamate connector series including L-Tek (male and female signal crimp contacts), J-Tek (female signal crimp contacts), and Mix-Tek (female signal crimp contacts).
Applications for the HARWIN T5747 include maintenance and repair tasks, electrical installation projects, computer interfacing, and cable assembly production, particularly in industrial, manufacturing, and electronic engineering environments.
Produces crimps in compliance with military standard MIL-DTL-22520/2-01. Wide wire size range from 20 AWG to 32 AWG support versatile usage. 8-step selector knob allows for precise crimp depth adjustment. Cycle controlled ratchet mechanism ensures accurate and complete crimps.
Minimal maintenance required; lubrication recommended every 10,000 cycles. Compatible with multiple Datamate connector series for broad connector coverage. Positioner securely locks in place to guarantee crimp tool alignment.
Used in maintenance, electrical installation, computer interfacing, and cable assembly applications.
Choose the HARWIN T5747 for precision, durability, and reliability in professional crimping tasks. Explore more from the HARWIN brand and related hand tools on EnvMart for quality assured industrial tools.
Explore more products in our Crimp Tool Positioners, Turrets & Locators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wide wire size range from 20 AWG to 32 AWG, allowing for versatile usage in various applications.
The T5747 is compatible with Datamate L-Tek series (male and female signal crimp contacts), Datamate J-Tek series (female signal crimp contacts), and Mix-Tek series (female signal crimp contacts).
This unit features a ratchet mechanism that prevents premature release before completing the full crimp cycle, ensuring consistent and reliable crimps.
Crimp depth can be adjusted using an 8-step selector knob, allowing users to choose the appropriate setting for their specific wire size.
Minimal maintenance is required; it is recommended to lubricate the tool every 10,000 cycles to ensure optimal performance.
This positioner is ideal for maintenance, electrical installations, computer interfacing, and cable assembly production, particularly in industrial and electronic engineering environments.
The HARWIN T5747 crimp tool positioner is manufactured in India.
This model supports a single contact configuration, making it suitable for specific crimping tasks.
It produces crimps that comply with military standard MIL-DTL-22520/2-01, ensuring high-quality electrical connections.
The positioner locks firmly in place using a positioner guide, ensuring precise alignment for accurate crimping.
The model number of this crimp tool positioner is T5747, designed specifically for use with HARWIN M22520/2-01 compliant hand crimp tools.
The HARWIN T5747 is classified as a positioner, specifically designed for crimping applications.
