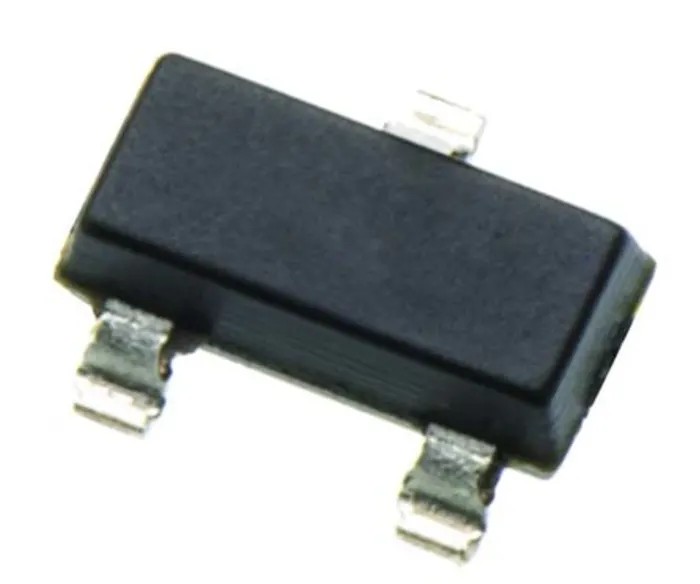

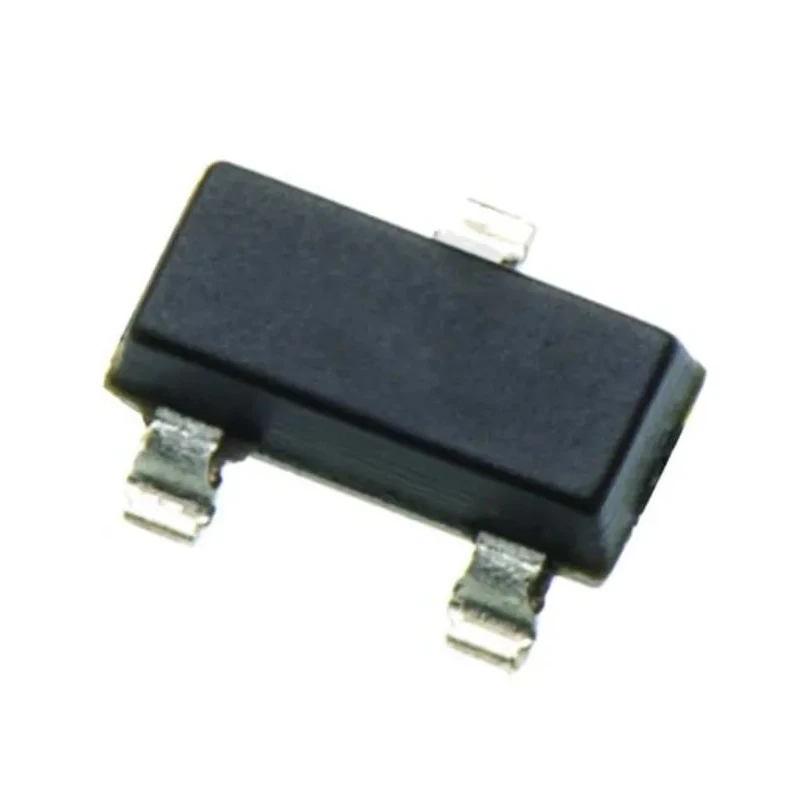

onsemi Small Signal NPN Transistor 100 mA, 30 V, 3-Pin SOT-23 BC848BLT1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Small Signal NPN Transistor 100 mA, 30 V, 3-Pin SOT-23 BC848BLT1G

Name: onsemi Small Signal NPN Transistor 100 mA, 30 V, 3-Pin SOT-23 BC848BLT1G
Brand: onsemi
SKU: 312387
Price: 6.23 INR
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.11mm
Length	3.04mm
Model	BC848BLT1G
Width	2.64mm
Mount Type	Surface
Series	BC846ALT1G
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	30V
Minimum DC Current Gain hFE	200
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	30V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	300mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz
onsemi BC848B Dual NPN Bipolar Transistor, 100 mA, 30 V, 6-Pin SC-88Brand	ON Semiconductor

Key Features

Maximum DC collector current of 100 mA ensures moderate current handling capability.
30 V maximum collector-emitter voltage suitable for low power signal switching.
Compact 3-pin SOT-23 surface mount package enables high-density PCB assembly.
Minimum DC current gain (hFE) of 200 for effective amplification in low noise applications.
Operating temperature range from -55°C to 150°C for reliability under varied conditions.
Maximum power dissipation of 300 mW for small signal operation.
Automotive grade compliant to AEC-Q101 standard for enhanced quality assurance.
Typical transition frequency (ft) of 100 MHz allowing use in RF and general switching circuits.

Product Description

onsemi BC848BLT1G is a high-quality small signal NPN bipolar junction transistor featuring a maximum collector current of 100 mA and a maximum collector-emitter voltage of 30 V. Packaged in a space-saving 3-pin SOT-23 surface mount casing, this transistor is ideal for compact electronic circuits where space efficiency and reliable performance are critical.

Engineered for reliable operation over a wide temperature range from -55°C to 150°C, it is suitable for both industrial and automotive applications. The transistor supports a minimum DC current gain of 200, enabling effective amplification in analog, switching, and low noise environments. With a power dissipation of up to 300 mW, it is optimized for small signal handling tasks.

This device complies with the automotive standard AEC-Q101, reflecting its stringent quality for automotive electronics. The transition frequency of 100 MHz makes it versatile for RF, switching, and signal amplification circuits.

The transistor's compact dimensions of 3.04 mm in length, 2.64 mm in width, and 1.11 mm in height allow integration into densely packed PCBs. Its 3-pin configuration facilitates straightforward surface mounting in automated manufacturing.

Supports maximum DC collector current of 100 mA. Operates at up to 30 V collector-emitter voltage. Comes in a 3-pin SOT-23 package for surface mounting. Minimum DC current gain of 200 ensures reliable amplification. Wide operating temperature range suitable for automotive use.

Power dissipation up to 300 mW. Transition frequency approximately 100 MHz. Compliant with automotive standard AEC-Q101. Small form factor ideal for compact electronics.

Commonly used in industrial, automotive, and consumer electronics for signal amplification, switching, and low-power control. Ideal for circuit protection, signal processing, and general purpose switching applications.
