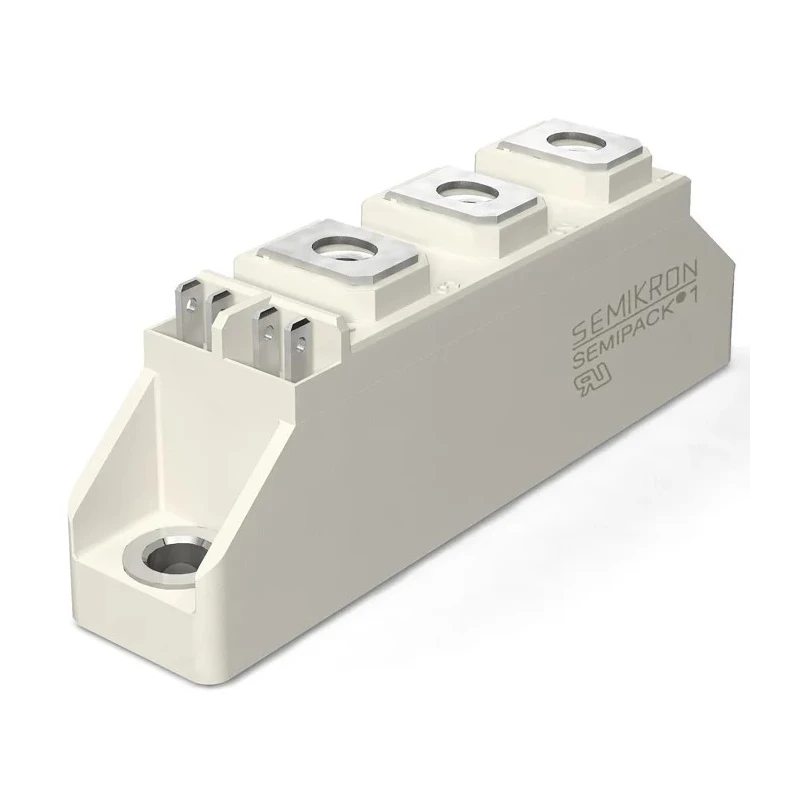

Semikron Danfoss Diode/Thyristor Module SCR 1600 V 40 A, 150 mA Gate Trigger Current, SEMIPACK1 5-Pin SKKH 42/16 E

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss Diode/Thyristor Module SCR 1600 V 40 A, 150 mA Gate Trigger Current, SEMIPACK1 5-Pin SKKH 42/16 E

Name: Semikron Danfoss Diode/Thyristor Module SCR 1600 V 40 A, 150 mA Gate Trigger Current, SEMIPACK1 5-Pin SKKH 42/16 E
Brand: Semikron Danfoss
SKU: 310552
Price: 6217.22 INR
Availability: InStock



Category Thyristor Module Brand Semikron Danfoss Condition New

Specifications

Country of Origin	Slovakia
Brand	Semikron Danfoss
Height	29.4mm
Length	93mm
Model	SKKH 42/16 E
Width	20mm
Mount Type	Panel
Maximum Operating Temperature	125°C
Package Type	SEMIPACK1
Pin Count	5
Rated Average On-State Current Irms	40A
Repetitive Peak Reverse Voltage VDRM	1600V
Surge Current Rating	1kA
Maximum Gate Trigger Current Igt	150mA
Maximum Holding Current Ih	250mA
Maximum Gate Trigger Voltage Vgt	3V
Peak On-State Voltage	1.95V
Repetitive Peak Off-State Current	15mA

Key Features

Equipped with SEMIPACK1 5-pin housing for panel mounting.
Features a maximum gate trigger current of 150 mA for reliable switching.
Designed with a repetitive peak reverse voltage of 1600 V and surge current rating of 1 kA.

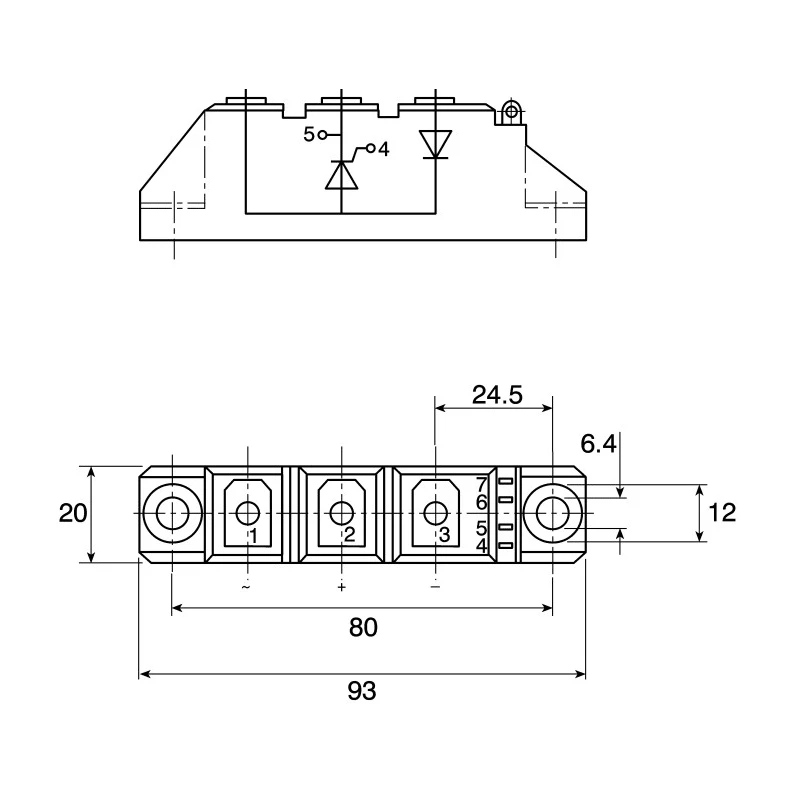

Compact dimensions with 93 mm length, 29.4 mm height, and 20 mm width.
Maximum operating temperature rated at 125°C suitable for demanding environments.
Peak on-state voltage is 1.95 V ensuring efficient conduction.
Includes maximum holding current of 250 mA and maximum gate trigger voltage of 3 V.
Repetitive peak off-state current is 15 mA for stable off-state performance.

Product Description

Semikron Danfoss SKKH 42/16 E Diode/Thyristor Module SCR 1600 V 40 A, 150 mA gate trigger current presented in SEMIPACK1 5-pin configuration combines robustness and precision for industrial power control applications.

This diode/thyristor module incorporates silicon-controlled rectifier technology, operating as a solid-state switch with four alternating N and P-type layers. It reliably switches conduction states upon a gate current trigger, continuing conduction while forward biased. These modules are widely used in battery chargers, welders, plating equipment, regulated power supplies, temperature and speed control circuits, and other demanding electrical applications.

Measuring 93 mm in length, 29.4 mm in height, and 20 mm in width, the device mounts easily on panels, supporting ease of integration.

The module supports a rated average on-state current of 40 A, a maximum operating temperature of 125°C, and a peak on-state voltage of 1.95 V, ensuring efficient power handling and thermal stability.

Featuring a surge current rating of 1 kA and repetitive peak reverse voltage of 1600 V, it handles transient loads effectively. Maximum gate trigger current of 150 mA and holding current of 250 mA enhance switching control precision.

The encapsulated design with an electrically isolated base plate improves safety and electrical isolation in industrial settings. Equipped with SEMIPACK1 housing for ruggedness and ease of panel mounting. Supports high surge currents and voltage ratings for robust performance.

Suitable for applications in battery charging, welding, and regulated power systems. Compact form factor suitable for space-constrained installations. Manufactured with high standards in Slovakia ensuring reliability. This Semikron Danfoss SKKH 42/16 E module is an essential component for industrial semiconductor control, supporting efficient and reliable power electronics operations.
