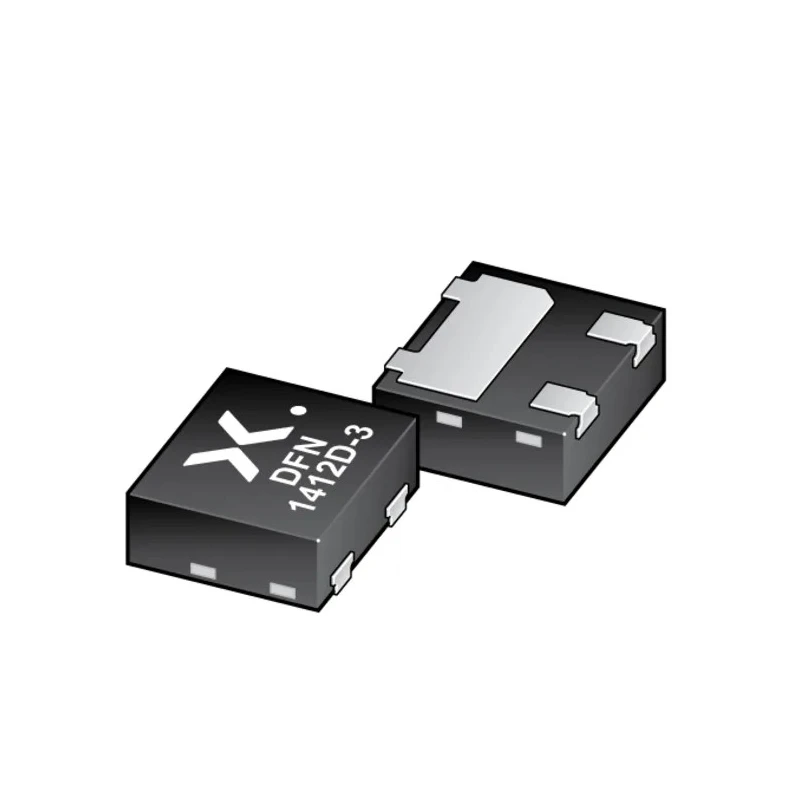

Nexperia Bi-Directional ESD Protection Diode, 3-Pin DFN1412D-3, 24 V, 2.6 A, AEC-Q101 PESD2CANFD24V-QCZ

Nexperia PESD2CANFD24V-QCZ is a bi-directional Electrostatic Discharge (ESD) protection diode designed for protecting sensitive automotive in-vehicle network bus lines. Packaged in an ultra-compact 3-pin DFN1412D-3 surface mount device with side wettable flanks, this diode combines high reliability with a small footprint, ideal for modern automotive electronics.

The device offers a low clamping voltage of 42 V at a peak pulse current of 2.6 A, ensuring that transient voltage spikes caused by ESD events are effectively suppressed before reaching critical circuit components. It also supports a maximum reverse stand-off voltage of 24 V, matching the operating voltages within many automotive networks.

The diode provides ESD protection up to 23 kV per IEC 61000-4-2 standards and additionally complies with automotive standard AEC-Q101, guaranteeing suitability for high-reliability automotive environments. Its extremely low capacitance of 6 pF minimizes the impact on signal integrity for high-speed communication lines.

Operational temperature range from -65°C to 150°C supports robust performance in extreme automotive climates. The package dimensions are 1.4 mm long, 0.47 mm wide, and 1.2 mm high, enabling dense PCB layouts. The device's leakage current is limited to 50 nA to maximize power efficiency in circuits.

Typical applications include automotive communication bus line protection, industrial electronics, and other environments prone to electrostatic discharges. The diode’s surface mount design is optimized for automated assembly and improved production efficiency.

Provides bi-directional ESD protection up to 23 kV according to IEC 61000-4-2 standards. Features a low clamping voltage of 42 V at 2.6 A peak pulse current for enhanced circuit protection. Compact surface mount package dimensions: 1.4 mm length, 0.47 mm width, and 1.2 mm height.

Supports operation from -65°C up to 150°C ambient temperature range, compliant with AEC-Q101 automotive standard. Low capacitance of 6 pF to minimize interference in high-speed data lines. Maximum reverse stand-off voltage of 24 V suitable for 24 V automotive networks.

Extremely low leakage current of 50 nA maximizing energy efficiency. RoHS compliant material with compliance to IEC 61000-4-2 for reliable surge protection. Explore comprehensive options for ESD Protection Diodes and other semiconductor components at EnvMart to enhance your automotive and industrial electronic designs.
