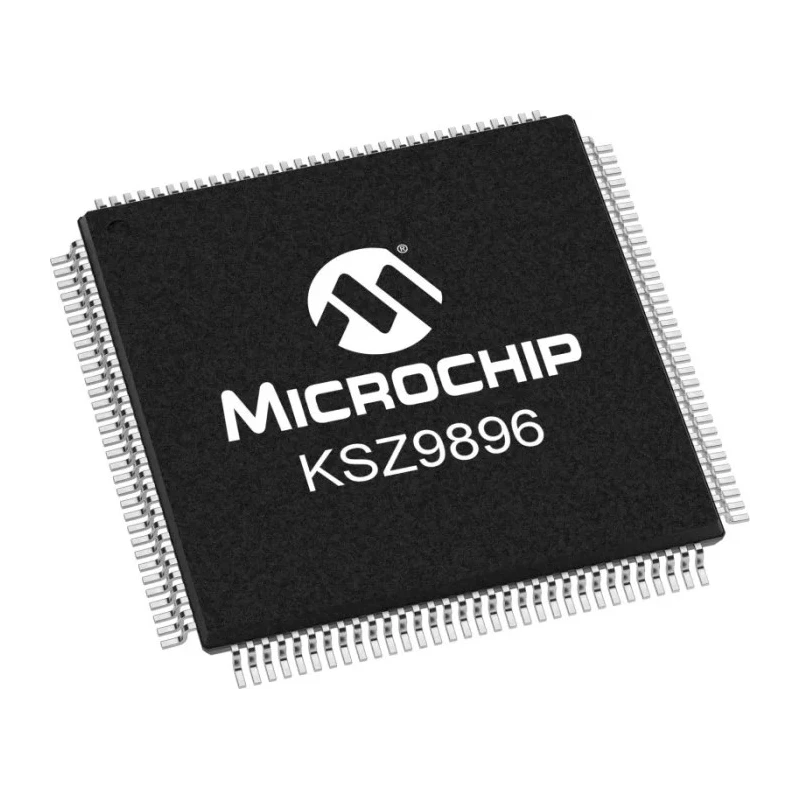

Microchip 128-Pin TQFP Ethernet Switch IC 3.13V to 3.46V 100 Mbps RGMII, RMII, MII Full Duplex/Half Duplex KSZ9896CTXI

Microchip KSZ9896CTXI Ethernet Switch IC in a 128-pin TQFP package operates over a supply voltage range of 3.13 V to 3.46 V, supporting 100 Mbps data rate. This device integrates five 10BASE-T/100BASE-TX/1000BASE-T PHY transceivers and associated MAC units to deliver flexible networking solutions. It features a configurable GMII/RGMII/MII/RMII MAC port for direct connection to host processors, Ethernet switches, or Ethernet PHY transceivers, making it suitable for diverse industrial and commercial Ethernet applications.

The highly integrated design supports both full duplex and half duplex communication modes, enhancing compatibility with various system requirements. Operating over a temperature range of -40°C to 85°C, it meets rigorous environmental conditions typically expected in industrial and embedded systems. RoHS compliance ensures that it meets current environmental safety standards.

The non-blocking wire-speed Ethernet switch fabric supports up to 1 Gbps on the RGMII interface, providing high throughput for data-intensive tasks. Advanced features include full VLAN and QoS support, port-based Access Control List (ACL) filtering, and traffic prioritization via per-port ingress and egress queues, which are critical for network security and performance.

Power management capabilities such as Wake-on-LAN enable low power standby operation, essential for energy-efficient system designs. The flexible digital I/O voltage allows direct interfacing with 1.8V, 2.5V, or 3.3V host processors, controllers, or FPGAs, maximizing system integration options.

This Ethernet switch IC is ideal for use in industrial networking, embedded systems, telecommunications equipment, and other commercial uses where reliable, fast Ethernet switching is required. The compact 128-pin TQFP package facilitates space-saving PCB designs.

Operates between 3.13 V and 3.46 V supply voltage. Five integrated transceivers support versatile Ethernet configurations. Supports RGMII, RMII, and MII interface standards. Full duplex and half duplex communication modes supported.

Wide operating temperature range from -40°C to 85°C ensures reliability. RoHS compliant for environmental friendliness. Compact 128-pin TQFP packaging for efficient board layout. Non-blocking, wire-speed switching with up to 1 Gbps on RGMII interface.

Advanced VLAN, QoS, and ACL features for enhanced network control. Energy-efficient Wake-on-LAN power management support. Explore more industrial and semiconductor products at EnvMart for high-performance networking components tailored to your applications.
