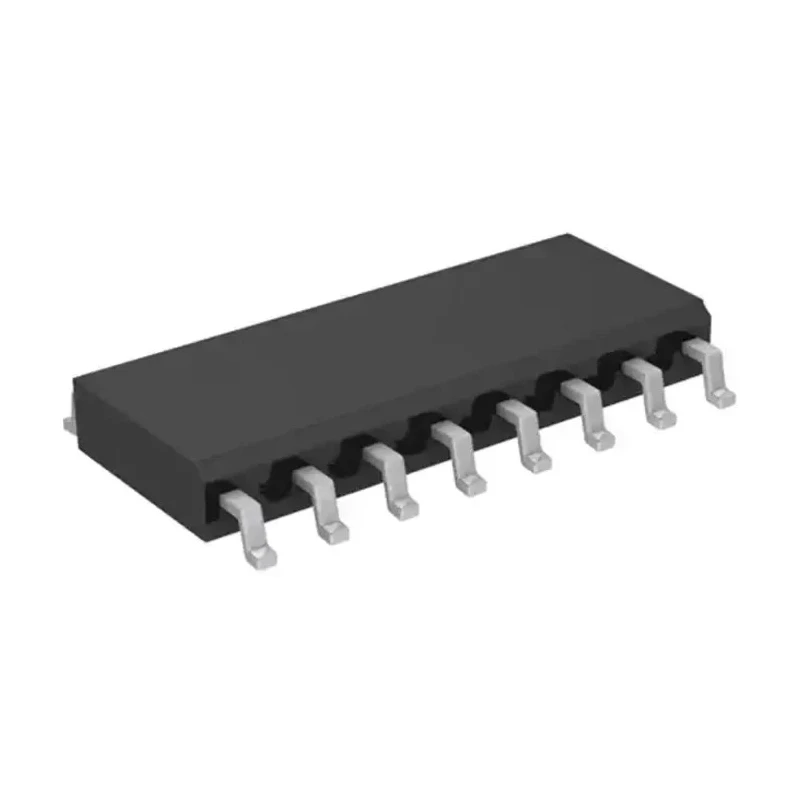

Renesas Electronics CMOS 2-Channel Line Transceiver, 3 State Output, Surface Mount SOIC Package, 16-Pin HIN202CBNZ

Renesas Electronics HIN202CBNZ is a CMOS technology Line Transceiver IC featuring 2 channels and 3-state output suitable for serial communication interface circuits. It complies with all EIA RS-232E and V.28 standards, ensuring reliable data transmission up to 120kbit/s.

This transceiver operates from a single +5V power supply and includes an onboard voltage doubler and inverter, eliminating the need for ±12V power rails, which can be unavailable in many applications.

It features a low typical supply current of 5mA and a shutdown function that reduces current consumption to 1μA, making it ideal for power-sensitive designs.

The device is housed in a 16-pin SOIC surface mount package with compact dimensions of 10mm in length, 6.2mm in width, and a height of 1.75mm, which supports automated PCB assembly.

The maximum propagation delay time at capacitive load is 10μs, making it suitable for moderate-speed serial interface communications. The unit operates within ambient temperatures ranging from 0°C to 70°C, meeting typical industrial and commercial operating environments.

This IC is particularly useful in applications where classic RS-232 ±12V signals are not feasible, providing robust line driving and receiving functions at TTL/CMOS voltage levels.

Complies with EIA RS-232E and V.28 standards for serial communication. Single +5V power supply operation with integrated voltage doubling and inversion. Low power consumption with a shutdown mode. Three-state TTL/CMOS compatible receiver outputs.

Compact SOIC surface mount package suitable for automated assembly.

This transceiver type is commonly applied in industrial, electronic component manufacturing, communication equipment, and embedded system designs requiring serial interface data communication.
