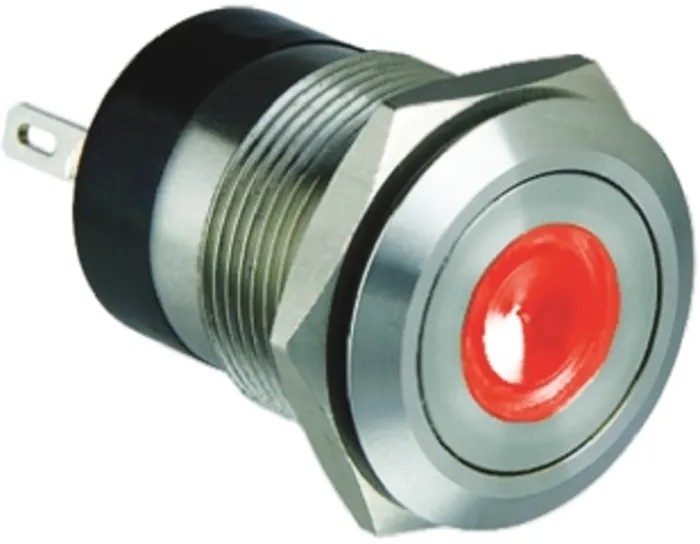

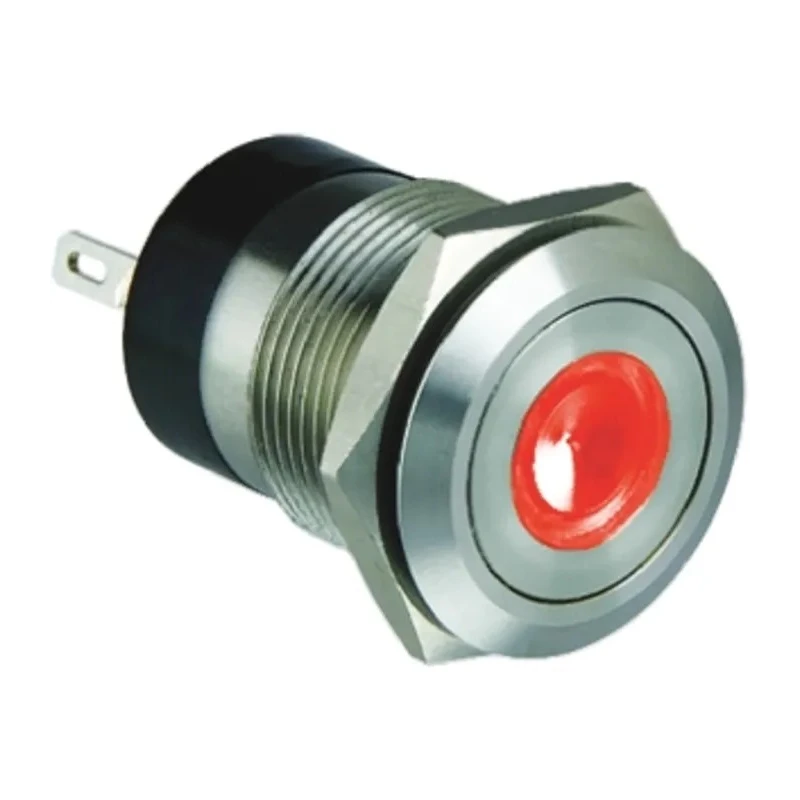

Bulgin MPI001 Series Illuminated Push Button Switch Momentary Panel Mount SPST Red LED 24 V dc MPI001

Bulgin MPI001 Series Illuminated Push Button Switch MPI001 is a robust momentary SPST switch designed for panel mounting applications, operating at 24 V dc with red LED illumination. Its 19.2 mm panel cutout and vandal resistant stainless steel actuator provide reliable and durable usage in industrial and automation environments.

The switch features a silver actuator color and a push-to-make switch configuration, designed for momentary operation. It is fully sealed to IP66, offering strong protection against dust and water ingress, making it ideal for harsh environments requiring high reliability.

Operating temperature ranges from -30°C to 70°C, allowing use in various industrial, electrical automation, and control panel applications. The LED illumination includes an integral supply resistor for 24V voltage and is available with flying leads or solder tag terminations to suit diverse mounting requirements.

The switch carries a contact current rating of 50mA, suitable for control signal switching. It complies with RoHS standards, ensuring environmental and safety compliance. The overall length is detailed as 35 mm plus 300 mm for flying leads or 32.7 mm for 2.8 mm tag terminations, facilitating design considerations.

This switch is manufactured in Tunisia, assuring well-maintained quality control consistent with global standards. It is perfect for industrial control panels, machinery operation switches, electrical automation, and other applications requiring rugged and illuminated tactile switches.

The switch has a 19.2 mm panel cutout size suitable for secure panel mounting. It features a vandal resistant stainless steel actuator with a silver color finish. Designed for momentary switch operation with one contact push to make configuration.

Built-in LED illumination uses a red LED with integral supply resistor for 24V dc operation. Fully sealed to IP66 protection rating ensuring durability in harsh environments. Operates reliably between -30°C to 70°C for wide temperature range applications.

The contact current rating is 50mA suitable for low power control circuits. Mounting style is panel mount with tab terminal type for easy wiring. Supplied with either flying leads or 2.8 mm solder tag termination options.

RoHS compliant and manufactured in Tunisia to ensure quality standards. Explore the Bulgin range of illuminated push button switches on EnvMart for reliable industrial and electrical switching solutions.
