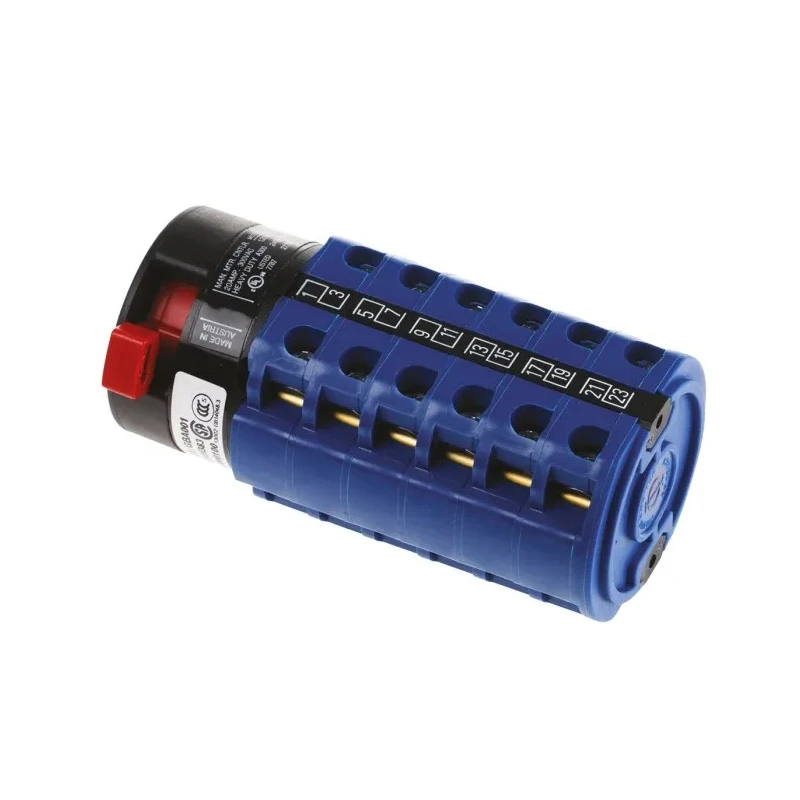

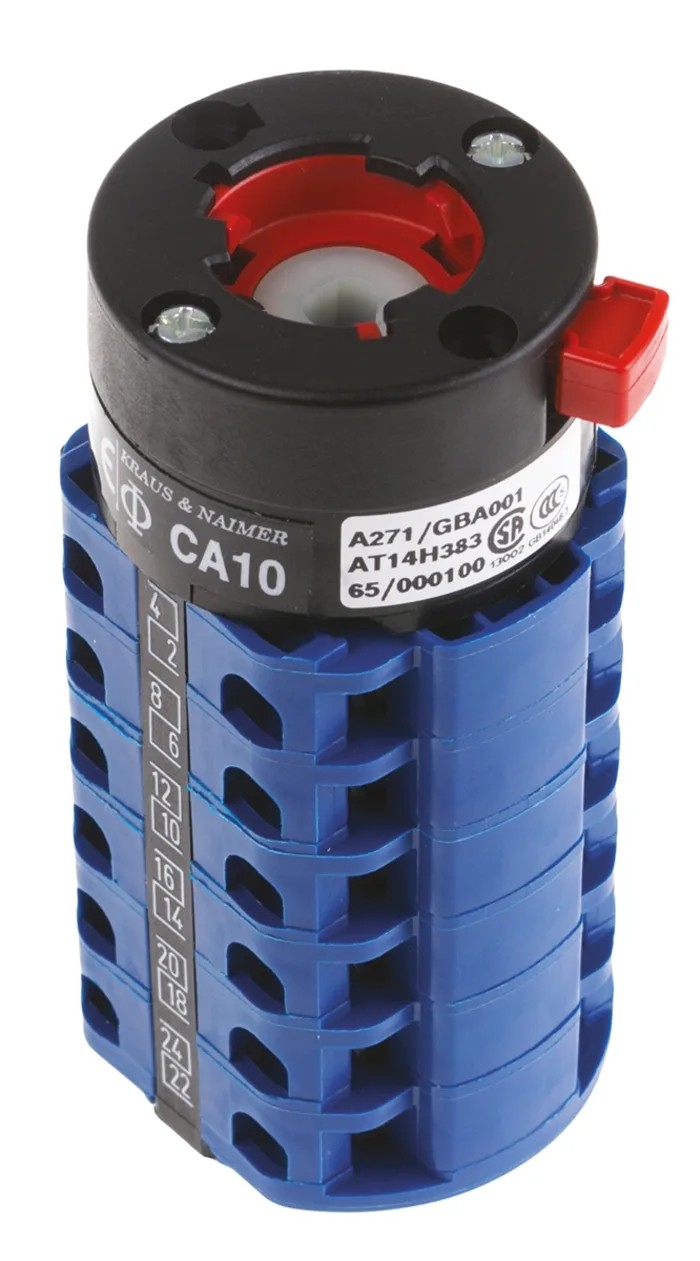

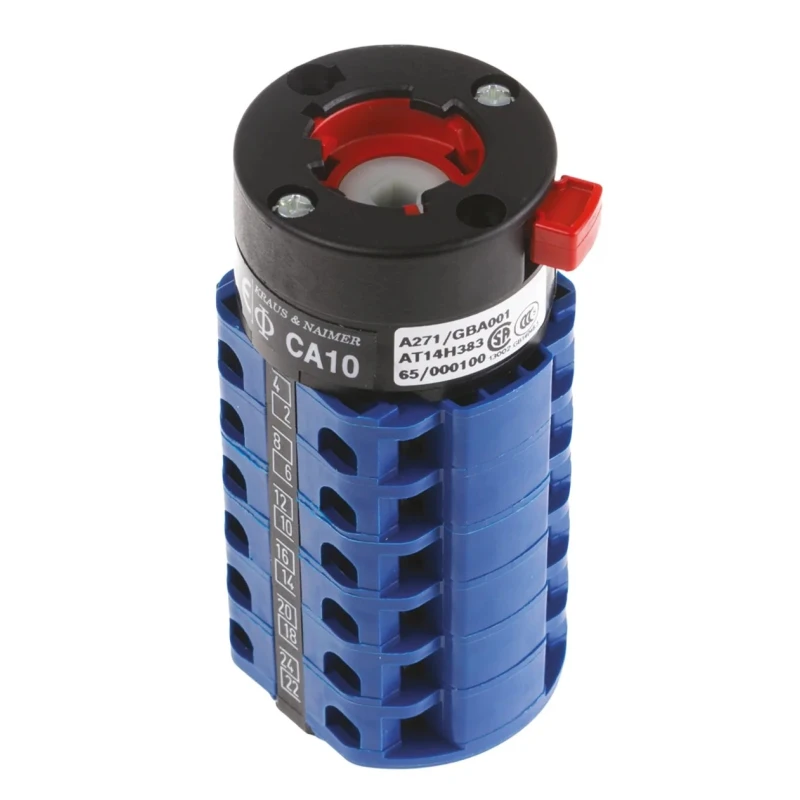

Kraus & Naimer Cam Switch 4 Position 60° Angle of Throw 20A Rated Current CA10.A271/GBA001.*FT

Kraus & Naimer CA10.A271/GBA001.*FT cam switch is a highly reliable electrical switch designed for industrial and automation applications. Featuring 4 selectable positions and a precise 60° angle of throw, this cam switch offers robust switching capability rated at 20 amperes.

Equipped with 3 poles and screw-type terminals, the switch ensures secure and stable electrical connections compatible with a range of industrial equipment. The compact 48mm by 48mm dimensions enable easy integration in standard mounting setups. Its rugged mechanical construction guarantees a full 1,000,000 operations lifecycle, making it ideal for demanding applications.

The device operates safely within a temperature span of minus 25°C to 55°C and supports a maximum contact voltage of 690 volts. With IP42 and IP65 ingress protection ratings, it resists dust and water penetration, suitable for both indoor and harsher environments.

Manufactured to comply with EN 50022 standards, this cam switch assures conformity to strict European quality and performance norms. While it lacks hazardous area certification, it is well-suited for general industrial, electrical automation, manufacturing, and control panel uses.

The switch body includes the appropriate legend plate, providing clear indication of position settings; however, the switch operator must be procured separately as per specific application needs.

The switch features 3 poles with screw terminal connections. Compact dimensions of 48mm length and width fit standard installations. Durable mechanical life of 1,000,000 operations ensures long-term reliability. Operates within temperature range from -25°C to 55°C with contact voltage of 690V.

Rated IP42 and IP65 protection levels for use in various environments. Conforms to EN 50022 standards for quality and safety compliance. No hazardous area certification, suitable for general industrial use. Switch body supplied with legend plate; operator ordered separately.

This cam switch by Kraus & Naimer is an excellent choice for industrial control, electrical panels, automation systems, manufacturing equipment, and other commercial electrical installations. Browse more Cam Switches and related electrical components on EnvMart to find compatible accessories and operator handles.
