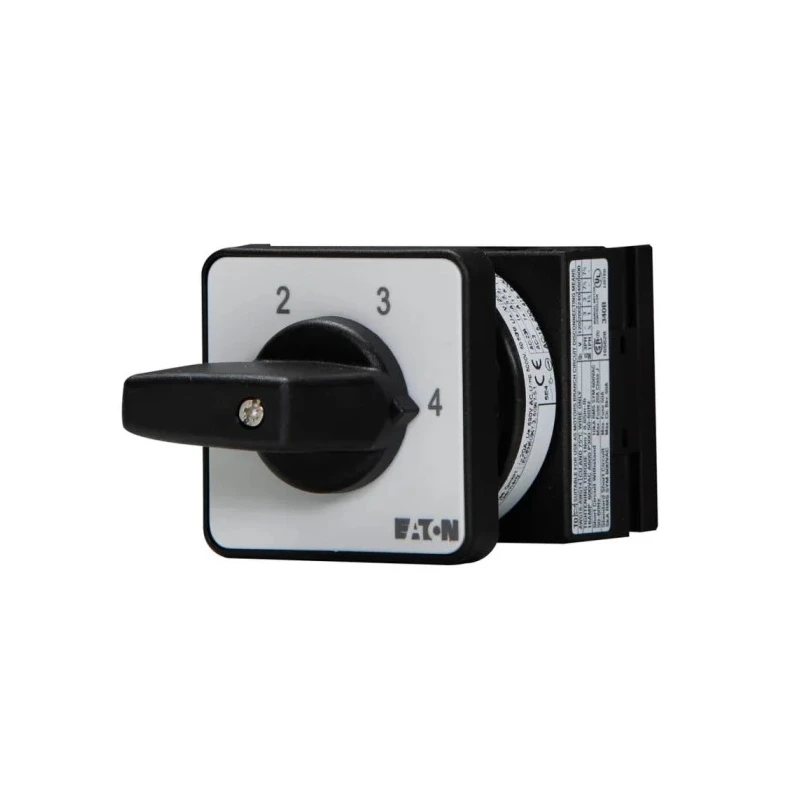

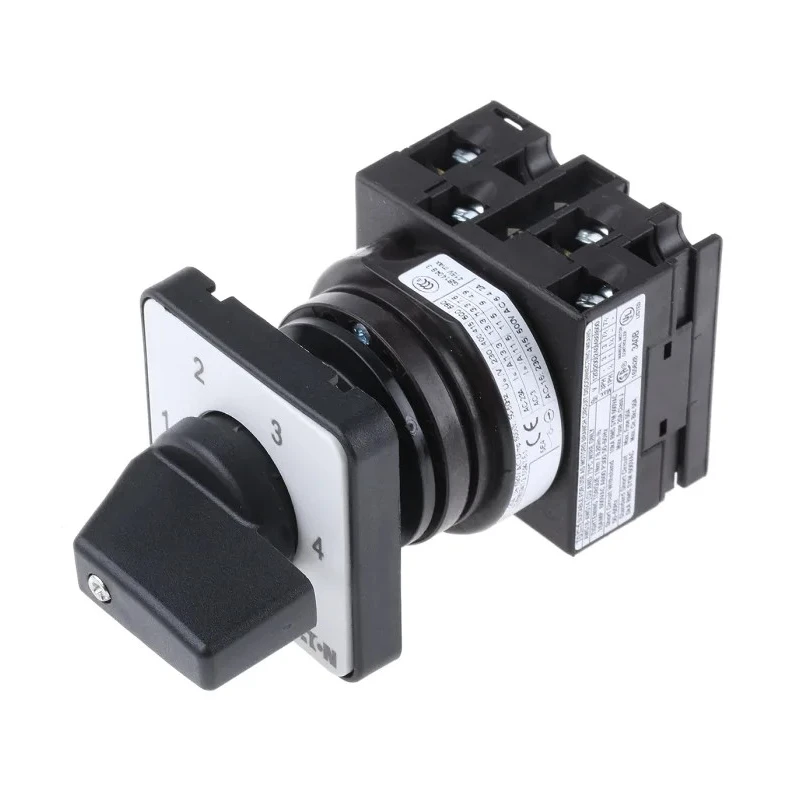

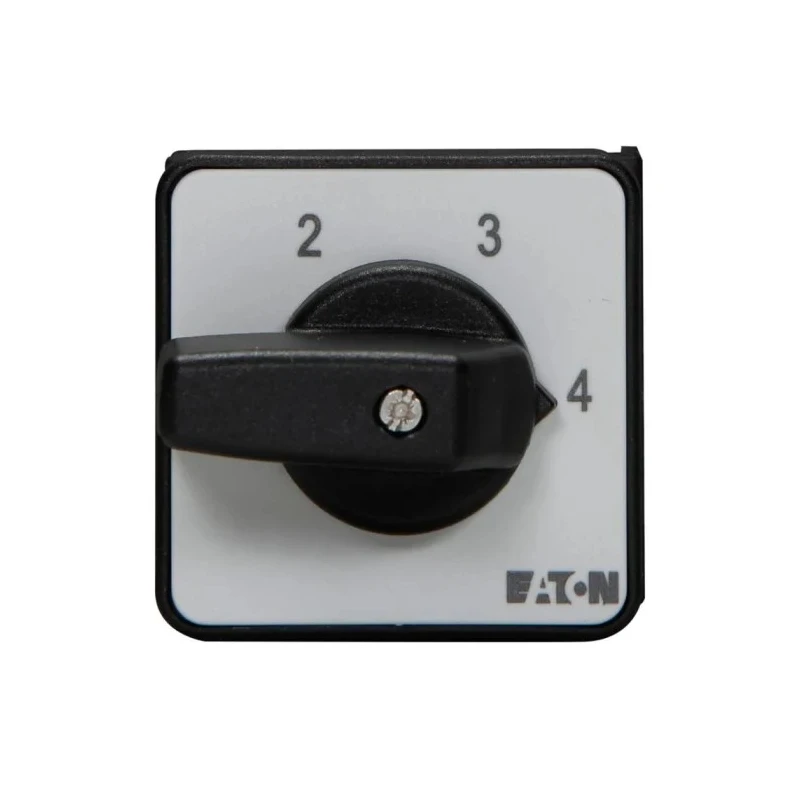

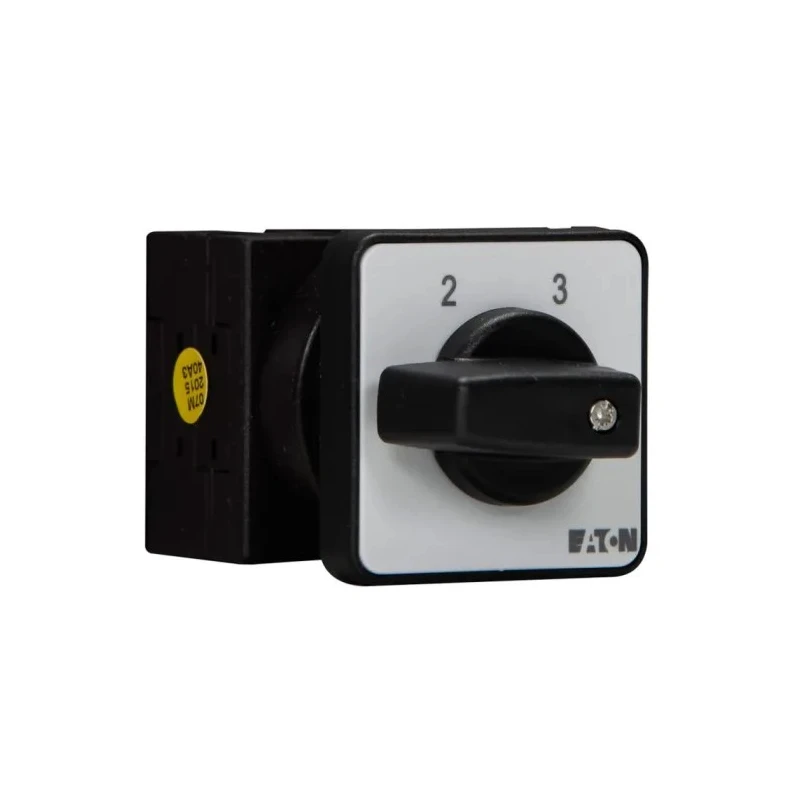

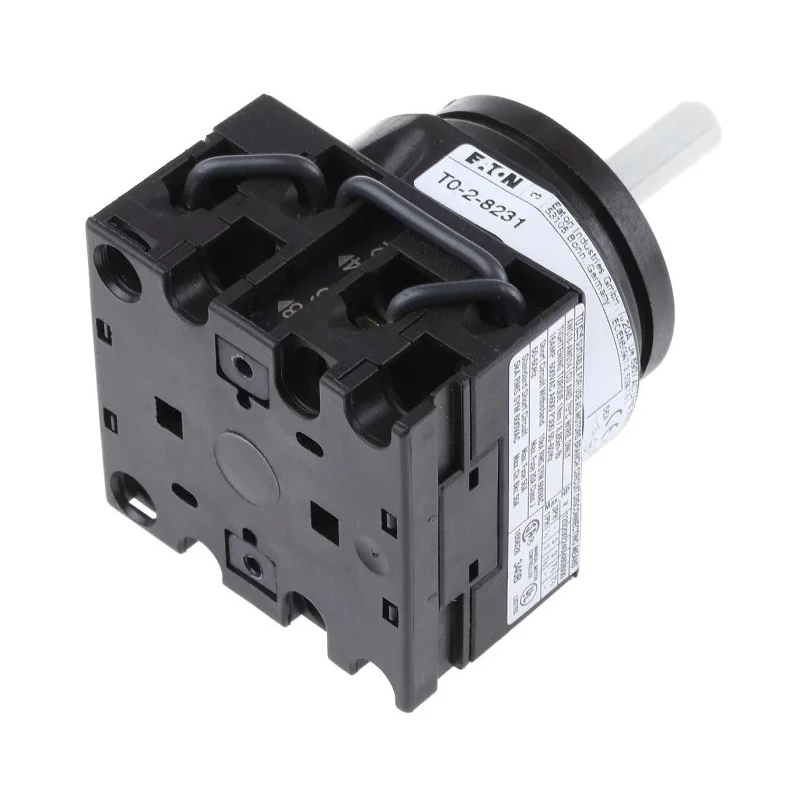

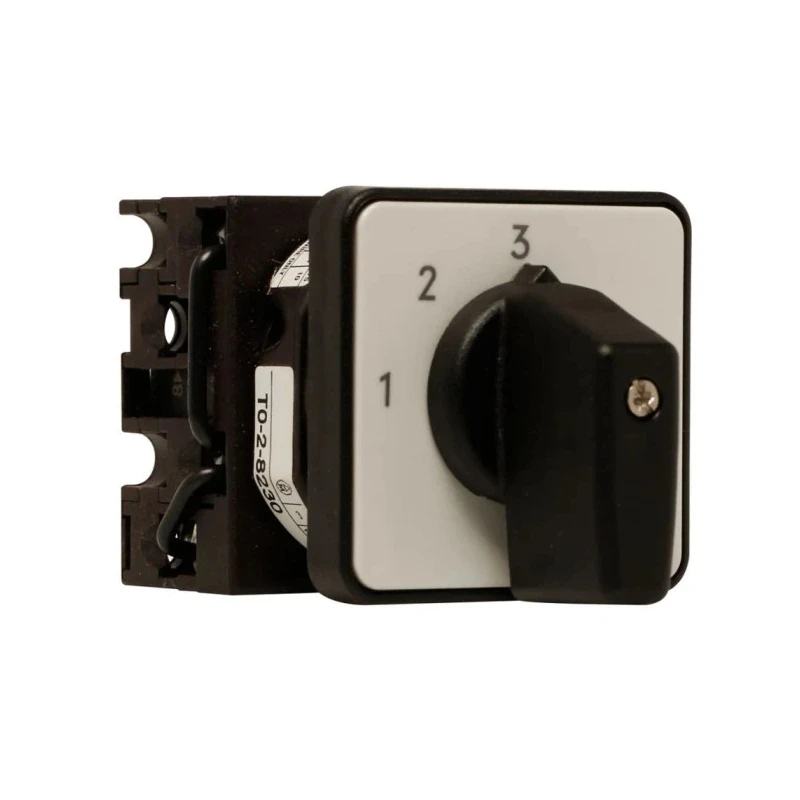

Eaton Cam Switch, 4 Position 60°, Toggle Actuator, 20 A, IP65 Rated, Model 78627335 T0-2-8231/E/EZ-P1(RS257-9643)

Eaton 78627335 T0-2-8231/E/EZ-P1(RS257-9643) cam switch is designed for effective circuit control in demanding industrial, automation, and electrical environments. This 4-position switch features a toggle actuator with a 60° angle of throw, enabling easy and precise switching operations. Rated for a 20 A contact current and 690V ac contact voltage, it supports single-phase electrical systems with high reliability.

The device’s IP65 rating during three-hole mounting makes it dust-tight and resistant to low-pressure water jets, ensuring consistent performance under harsh industrial conditions. For single-hole mounting, the switch is rated at IP55, providing limited dust and water protection. It is engineered to operate within a wide temperature range from -25°C to +50°C.

With compact dimensions of 48 mm length, 48 mm width, and 50 mm depth, the Eaton cam switch optimizes panel installation space without compromising functionality. The sturdy toggle actuator design offers a secure grip and straightforward usability, ideal for frequent on/off switching and resistance adjustments within electric circuits.

This model complies with IEC/EN 60947 standards and carries IECEx hazardous area certification, making it suitable for use in industries such as medical devices, agricultural machinery, and aeronautics where safety and durability are critical. The mechanical life expectancy of one million operations attests to its robust construction and reliability.

The cam switch’s 4 positions and 60° actuator angle afford flexible circuit control options. Toggle actuator type enhances user control and operational precision. IP65 rating for flush mounting ensures excellent protection in industrial settings.

IECEx certification confirms suitability for hazardous locations. Wide operating temperature range caters to diverse environmental conditions. Compliant with IEC/EN 60947 standards for industrial electrical devices. Compact dimensions support seamless integration into electrical panels.

Designed for up to 20A current and 690V AC voltage applications. Mechanical lifespan of one million operations ensures long-term reliability.

This Eaton cam switch is an essential component for effective industrial automation and control applications. It embodies safety, durability, and flexibility to meet high performance requirements. For more industrial electrical components and Cam Switches, browse the Electronics & Electricals category at EnvMart.
