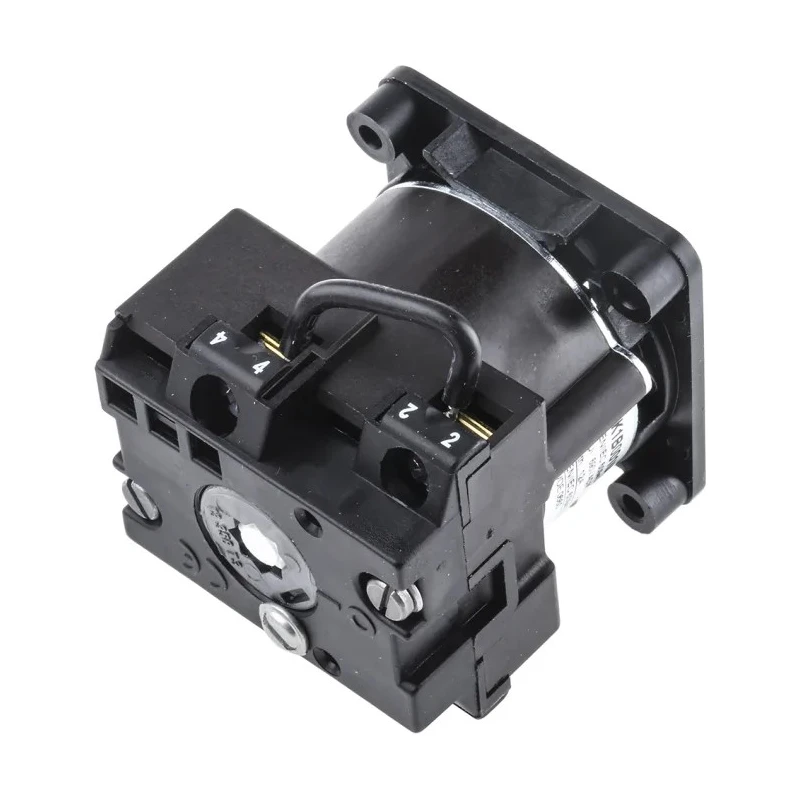

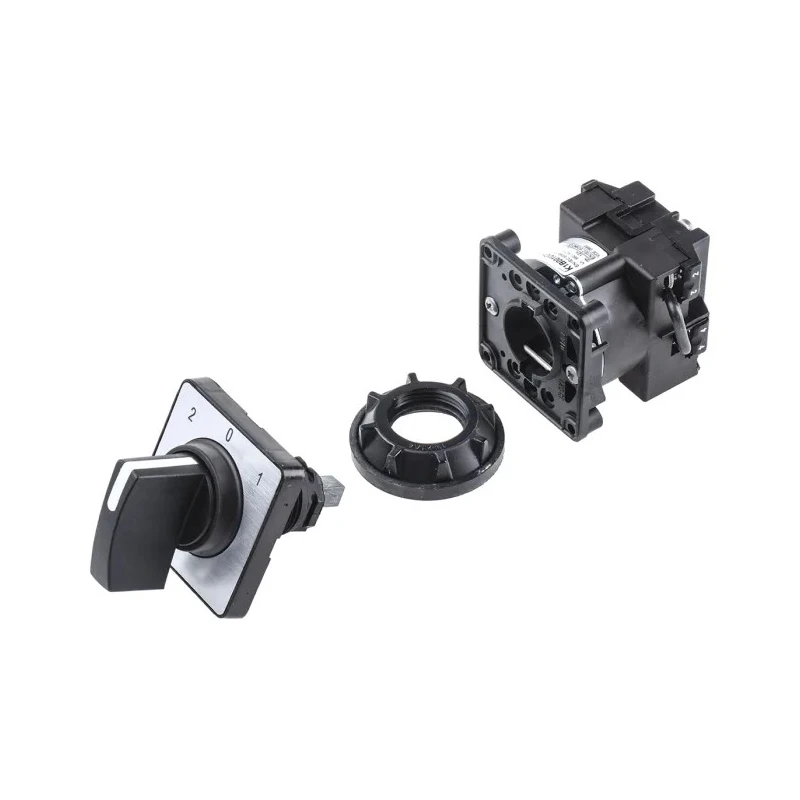

Schneider Electric Cam Switch 3 Position 45 ° Black Handle Actuator 12 A K1B001UCH

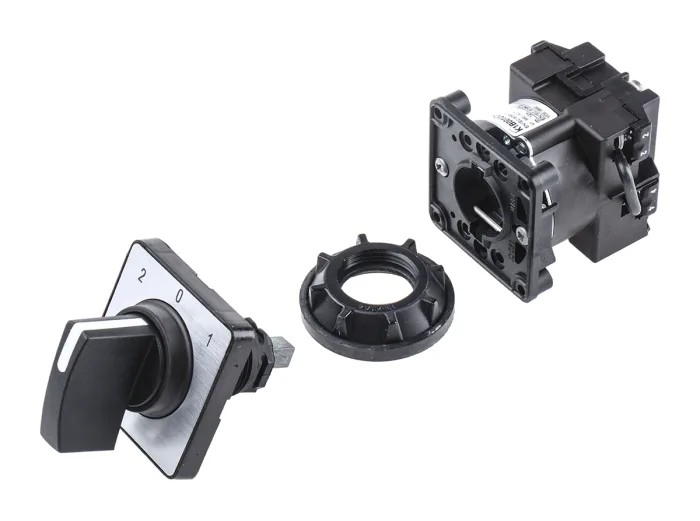

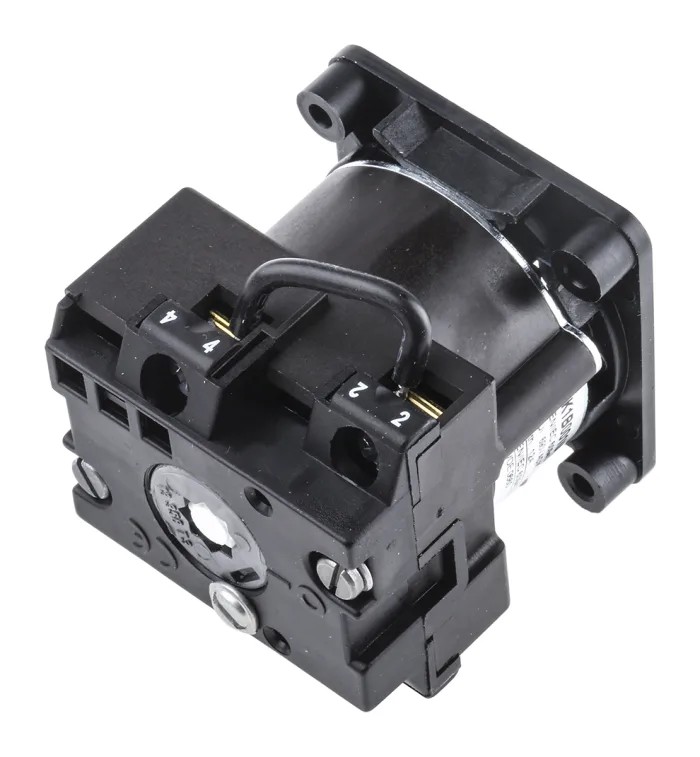

Schneider Electric K1B001UCH cam switch is a robust 3-position rotary switch designed for industrial and electrical automation applications. This model features a black handle actuator with a 45 ° angle of throw providing precise control in switching tasks. Rated for a contact current of 12 A, it suits electrical phases of 3 and includes one pole with screw-type terminals for firm and reliable connections.

Constructed within the Harmony K series, the switch is built to meet international standards including IEC 60947-5-1, IEC 60947-3, EN 60947-5-1, EN 60947-3, and CENELEC EN 50013. It boasts an IP65 protection rating, ensuring resistance against dust and water ingress, making it suitable for harsh industrial environments.

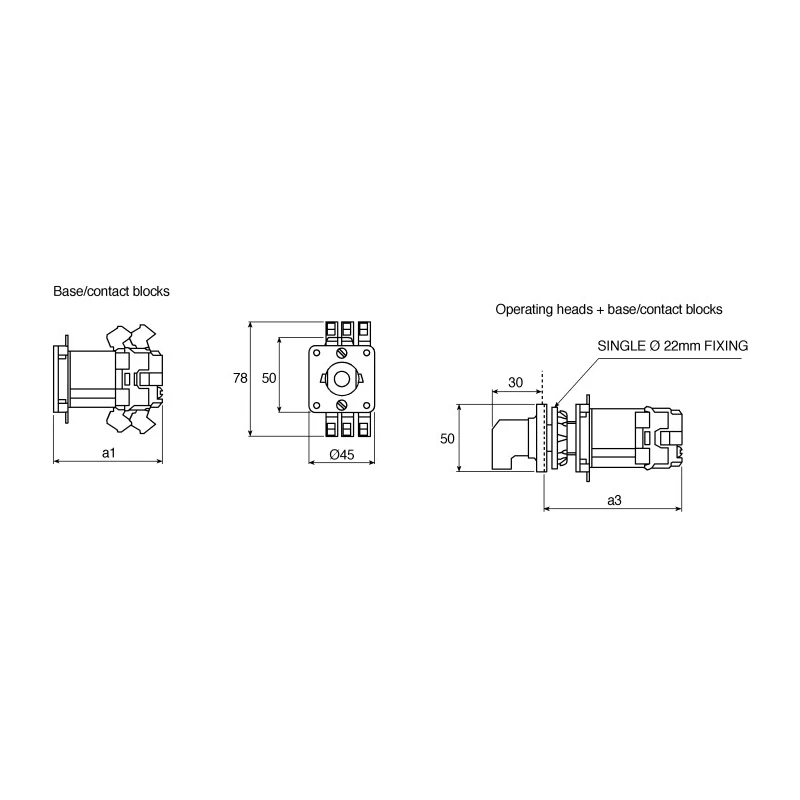

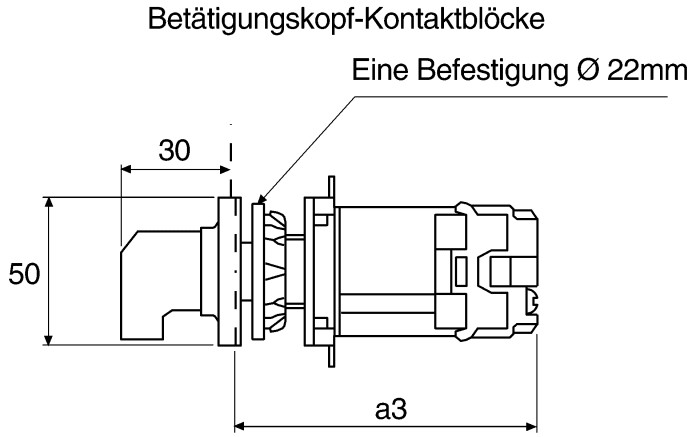

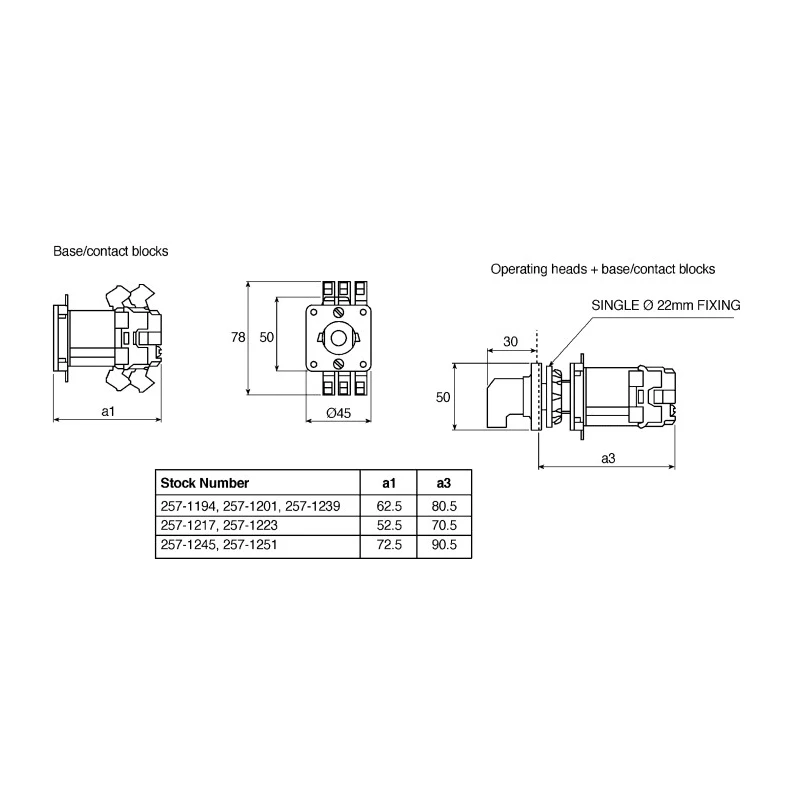

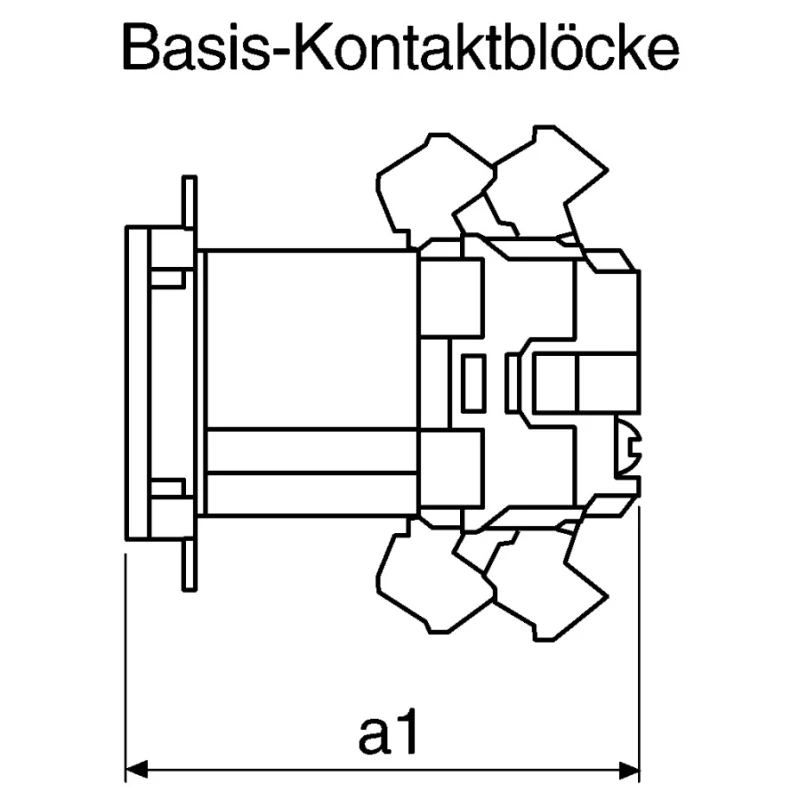

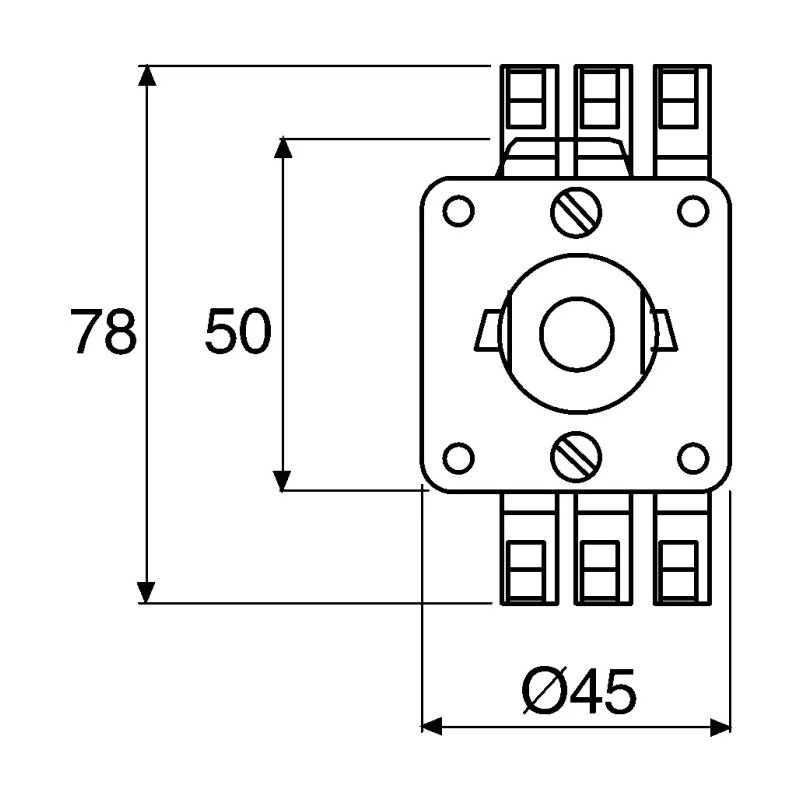

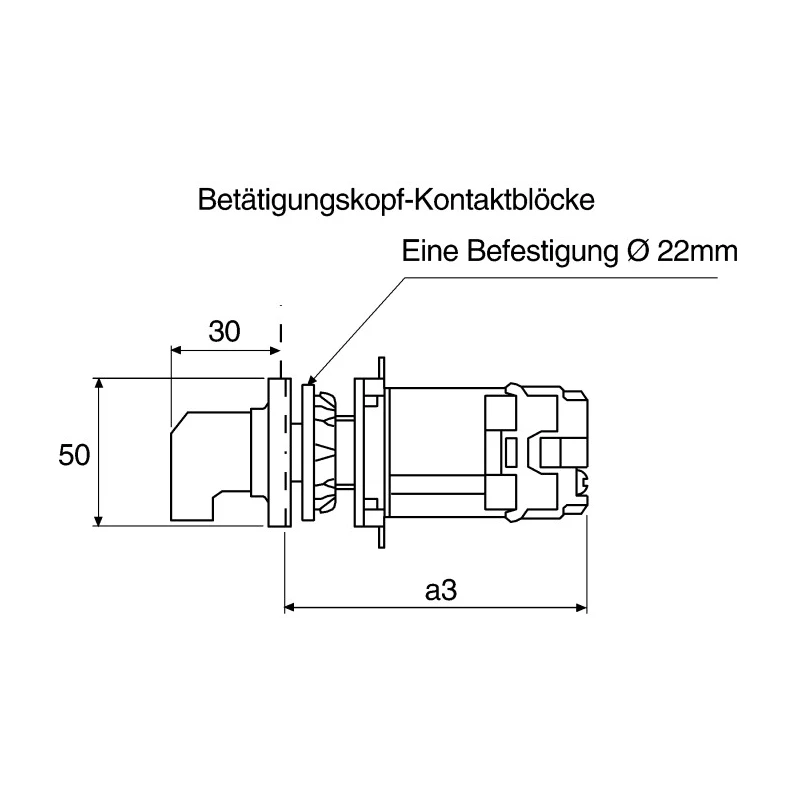

The unit efficiently operates in extreme climates, maintaining performance between -25 °C and +55 °C. The mechanical life span is rated at one million cycles, supporting prolonged industrial use. Its compact dimensions of 78 mm length, 45 mm width, and 100.5 mm depth facilitate integration in panels and control systems. Slow break contacts guarantee a safe switching mechanism with positive opening action to comply with thermal requirements of 12A free air and 10A in enclosed conditions.

This cam switch is widely applicable in industrial control circuits where reliable and accurate switching is critical. Its rugged design and adherence to stringent certifications confirm its suitability for electrical and automation sectors, HVAC systems, manufacturing processes, and other commercial industrial applications.

Manufactured in the Czech Republic, the Schneider Electric K1B001UCH offers guaranteed quality and durability. It is a dependable component for professionals requiring consistent and precise switching solutions.

Durable Harmony K series cam switch designed for industrial electrical control circuits. Features 3 positions and 1 pole for precise electrical switching. Rated contact current of 12 A with thermal current rating of 12A free air, 10A enclosed.

IP65 rated enclosure ensures protection against dust and water ingress. Operates reliably from -25 °C to +55 °C ambient temperature range. Complies with IEC 60947 series and CENELEC standards for safety and reliability. Construction includes finger-proof terminals and slow break contacts with positive opening operation.

Compact size of 78 x 45 x 100.5 mm for versatile panel mounting. Mechanical life of one million cycles for long-lasting performance. Manufactured in the Czech Republic ensuring high quality and standards compliance. Explore the wide range of Schneider Electric industrial Cam Switches and actuators on EnvMart for reliable electrical switching solutions.
