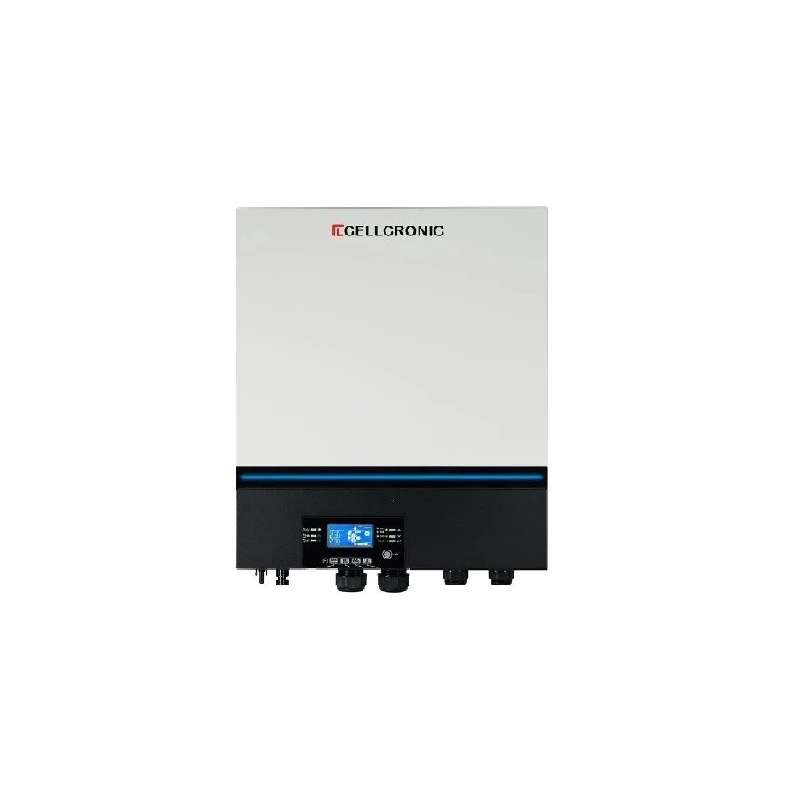

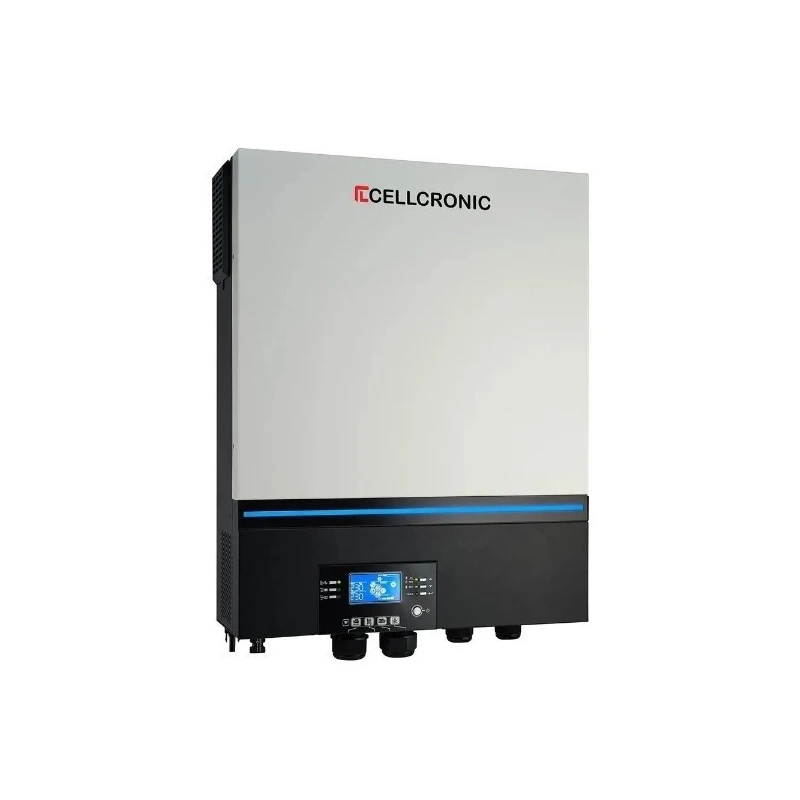

Cellcronic Axpert Max Hybrid Solar Inverter 3.6kW-24V
Specifications
| Frequency range | 50 Hz/60 Hz (Auto Sensing) |
|---|---|
| Brand | Cellcronic |
| Dimension | 147.4 x 432.5 x 553.6mm |
| Net Weight | 14.1kg |
| Voltage (V) | 230 VAC |
| Model | Axpert Max 3600-24-230 |
| Rated Power | 3600VA/3600W |
| Battery Voltage (V) | 24 VDC |
| Nominal Output Voltage (V) | 220/230/240 VAC |
| Waveform | Pure Sine Wave |
| Surge Power | 7500VA |
| Selectable Voltage Range | 170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances) |
| Overcharge Protection | 33 VDC |
| AC Voltage Regulation (Batt. Mode) | 230VAC +- 5% |
| Transfer Time | 15 ms (For Personal Computers) | 20 ms (For Home Appliances) |
| Floating Charge Voltage (V) | 27 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 4000 W |
| Maximum PV Array Open Circuit Voltage (V) | 450 VDC |
| Parallel Capability | No |
| Maximum AC Input Current | 40A |
| Efficiency (Peak) | 90% ~ 93% |
| Output Waveform | Pure Shine Wave |
| Efficiency (DC/AC) | 0.93 |
| No Load Power Consumption | Less Than 45W |
| DC Voltage (Optional) | 12 VDC +- 5%| 100W |
| MPPT Range Operating Voltage (V) | 120 ~ 450 VDC |
| Maxmum Solar Charge Current | 80 A |
| Hybrid Type Off Grid Minimum Order Quantity | 1 |
Key Features
- Pure sine wave output
- 4000W Wide MPPT (120~450vdc) charge controller.
- Self-consumption and Feed-in to the grid.
- Work with or without a battery.
- User-adjustable charging current and voltage.
- Monitoring software for real-time.
Product Description
Axpert Max is a new generation inverter technology that comes with an inbuilt WIFI monitoring device and company fitted battery wire, AC DC Distribution Box. This inverter comes with elegant RGB lights on the front. This new generation inverter can accept a high PV voltage range (120~450vdc) and these features will facilitate PV system installation easily. The inverter can run with or without a battery. We also offer parallel operation functions up to 6 units for the 7.2kW model. It offers high flexibility for future power expansion.
- Parallel operation of up to 9 units.
- Work with or without a net meter facility.
- Programmable multiple operation modes.
- Grid-tie, off-grid, and grid-tie with backup.
