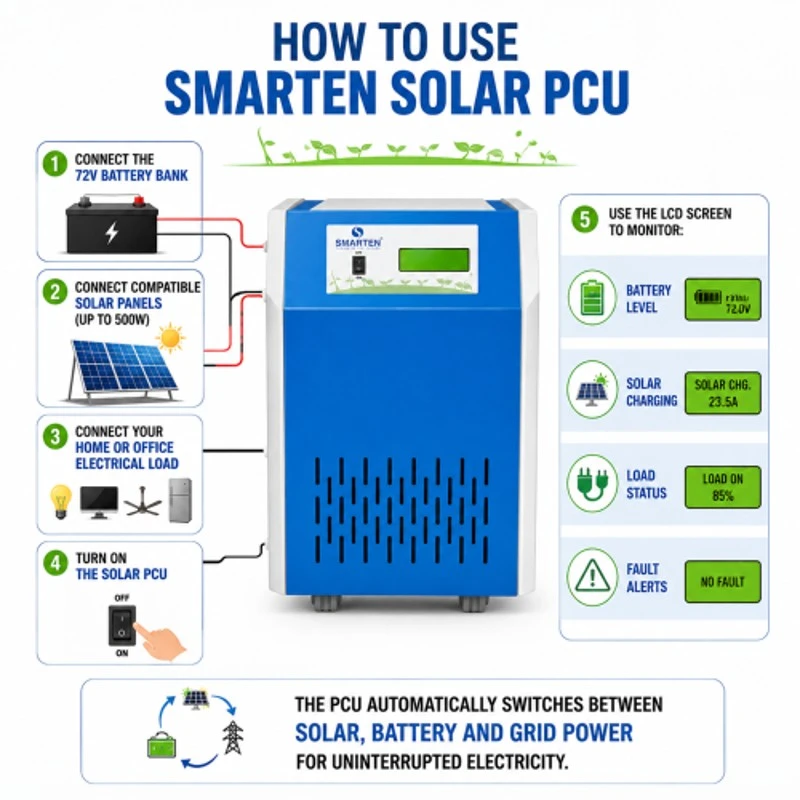

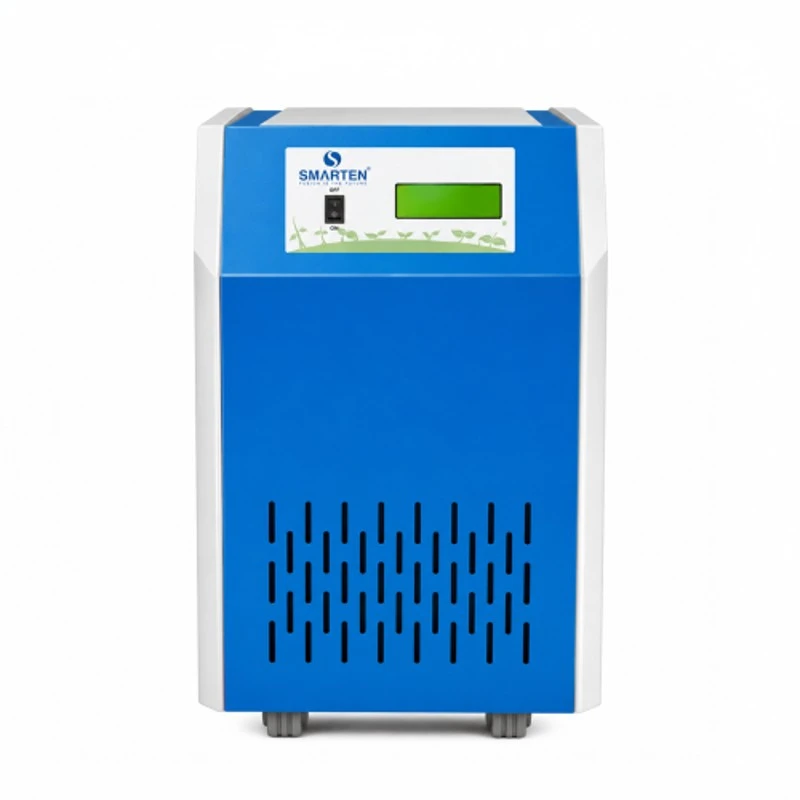

Smarten Saver 6000VA 72V Solar PCU with LCD Display, Pure Sine Wave, Supports up to 4500W Solar Panels
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 72 V DC |
| Display | Screen |
| Frequency | of 50Hz �1% |
| Brand | Smarten |
| Power | Maximum PV: 4500 W |
| Dimensions | 425x300x500 mm |
| Storage Temperature | 0 to 50 deg C |
| Operating Temperature Range | 0 to 50 deg C |
| Load Capacity | 6000 VA |
| Humidity range | 0 to 95% RH Non-Conditioning |
| Output Waveform | Pure Sine Wave |
| Charging Current | 15 Amp ± 1 Amp (Factory Setting) Maximum: 60 Amp |
| Output Frequency | 50 Hz ± 1% |
| Maximum | 60 Amp |
| Low Battery Warning | 10.7V ± 0.2V Each Battery |
| Output Voltage | Nominal: 230 V |
| Nominal Voltage | 72 V |
| Solar Panel Capacity | Upto 500W |
| Charging Current 15 Amp ± 1 Amp (Factory Setting) Maximum | 60 Amp |
| Output Voltage Nominal | 230 V |
| Power Maximum PV | 4500 W |
| Low Cut | 175 ± 10V (UPS) & 90 ± 10V (WUPS) |
| Low Cut Recovery | 185 ± 10V (UPS) & 110 ± 10V (WUPS) |
| High Cut | 265 ± 10V (UPS) & 295 ± 10V (WUPS) |
| High Cut Recovery | 255 ± 10V (UPS) & 285 ± 10V (WUPS) |
| Change Over Time | Less than 10ms (UPS) & Less than 30ms (WUPS) |
| Solar Charger | PWM, Max. Solar Input Voltage (Voc): 25V Each Battery & Charging Priority: Battery is Always Charges through Solar Priority |
| Battery Priority | Firstly Use Solar Power & Check Battery Charged Status After that Use Battery 20% if Solar Power is Available |
| Grid Priority | Charged Battery Always from Solar as Well as Grid if Solar is not Sufficient |
| Nominal | 230 V |
| Low Battery Cut | 10.5V ± 0.2V Each Battery |
| DC Load Battery Cut | 10.3V ± 0.2V Each Battery |
Key Features
- Pure sine wave output ensures high quality and efficient device operation.
- 6000VA power capacity supports large home and office loads.
- LCD screen provides real-time system monitoring and user-friendly interface.
- Supports up to 4500W solar panel input for scalable energy solutions.
- Advanced solar optimization settings maximize energy usage and savings.
- Fast changeover time for uninterrupted power supply in UPS and WUPS modes.
- Multiple voltage cut and recovery settings safeguard appliances.
- Overload and low battery protection with smart warning indication.
Product Description
The Smarten Saver 6000VA 72V Solar PCU is designed for high-capacity solar panel integration, making it a robust solution for residential, commercial, and industrial use. Operating with a pure sine wave output, it ensures that sensitive devices and large appliances receive reliable, clean energy.
This solar power conditioning unit features a power capacity of 6000VA and supports up to 4500W PV input, providing ample energy conversion for demanding environments. The integrated LCD display offers real-time monitoring of system status, charging parameters, and operational settings, enhancing user control and feedback.
It operates at a 72V DC nominal voltage with an output frequency of 50 Hz ±1%. Its intelligent design includes advanced solar optimization usage settings, which prioritise solar power for battery charging and system operation, with automatic grid fallback when solar resources are insufficient.
Multiple safety mechanisms like low voltage cut/recovery, high voltage cut/recovery, overload protection, and quick changeover times ensure continuous operation and appliance protection. The PCU delivers pure sine wave output, making it suitable for sensitive electronics and industrial equipment.
Features such as PWM solar charger technology, maximum input voltage per battery, charging boost voltages for different battery types, and low battery warning/cut are designed for optimal performance and longevity.
Pure sine wave output for compatibility with sensitive equipment. High efficiency supports up to 4500W solar panel array. User-friendly LCD display provides feedback and control. Fast changeover ensures minimal downtime during power source switching.
Advanced voltage cut and recovery settings enhance operational safety. Configurable charging and priority parameters optimize energy use. Robust protection against overload and battery depletion. Compact ) and manageable weight (47 kg) for easy installation.
Ideal for industrial, commercial, and residential solar power systems, manufacturing sites, water pumping, and laboratory environments requiring reliable power conversion. Explore the full range of Smarten Solar Inverters and power conditioning units on EnvMart for advanced energy management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power capacity of 6000 VA, making it suitable for large home and office loads.
It supports up to 4500W of solar panel input, allowing for scalable energy solutions.
It delivers a pure sine wave output, ensuring compatibility with sensitive electronics and appliances.
The nominal voltage of this unit is 72 V DC, which is essential for its operation.
The operating temperature range is from 0 to 50 degrees Celsius, suitable for various environments.
The dimensions of this unit are 425 x 300 x 500 mm, making it compact for installation.
The integrated LCD display provides real-time monitoring of system status, charging parameters, and operational settings, enhancing user control.
It includes multiple safety mechanisms such as low voltage cut/recovery, high voltage cut/recovery, and overload protection to safeguard appliances.
The changeover time is less than 10 ms for UPS mode and less than 30 ms for WUPS mode, ensuring minimal downtime during power source switching.
The charging current is set to a factory setting of 15 Amp ± 1 Amp, with a maximum of 60 Amp.
The humidity range is from 0 to 95% RH Non-Conditioning, allowing it to function effectively in various conditions.
It is ideal for residential, commercial, and industrial solar power systems, including applications in manufacturing sites and water pumping.
