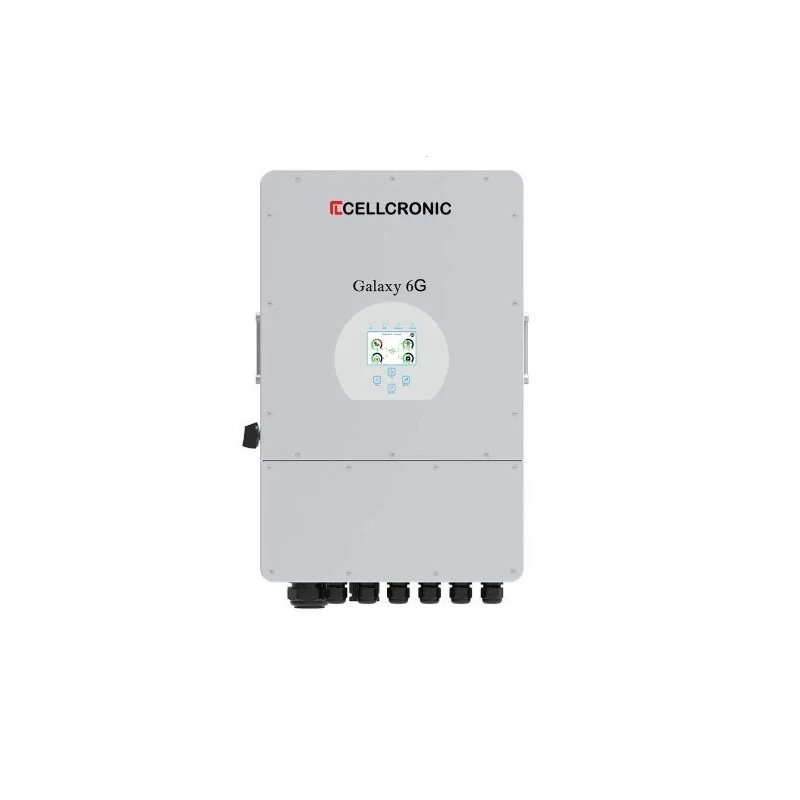

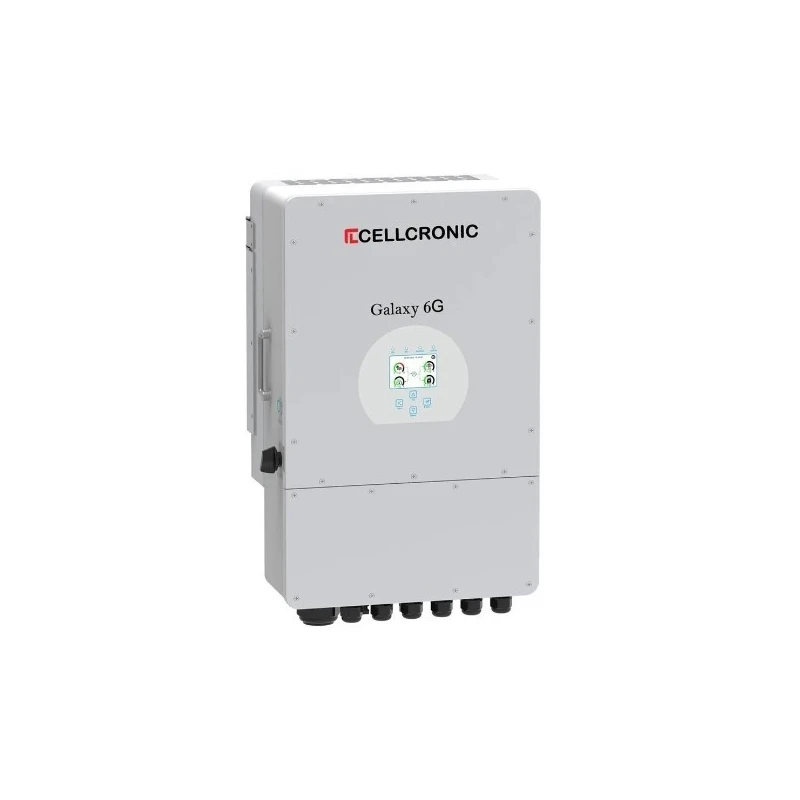

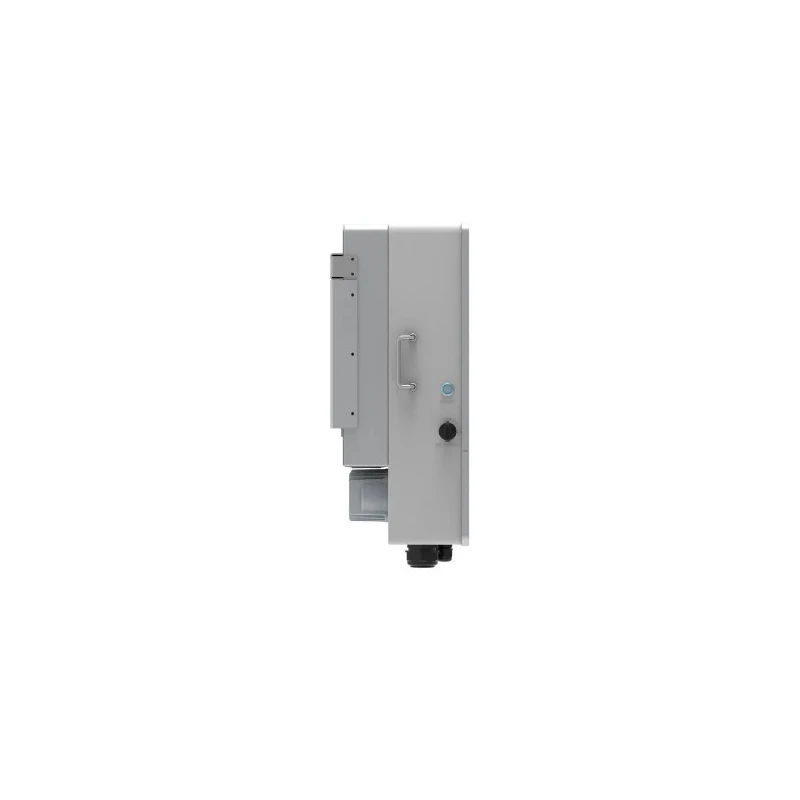

Galaxy 6g 10kva/ 48 Volt On-grid Hybrid Solar Inverter
Specifications
| Warranty | 5 years |
|---|---|
| Brand | Cellcronic |
| Battery type | Lithium-ion/Ladeaside |
| Noise | Less Than 30 db |
| Model | Galaxy 6G 10kW-48v 3P EU |
| Minimum Order Quantity | 1 |
| Weight | 45kg |
| Battery Voltage (V) | 40~60V Max. |
| Start-Up Voltage (V) | 160V |
| Grid Type | Three Phase |
| MPPT Range | 140V-700V |
| MPPT Efficiency | 0.999 |
| Charging Current | 210A |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy For Li-lon Battery | Self-Adaption To BMS |
| Max. DC Input Power | 13000W |
| PV lnput Voltage (V) | 450V (140V~800V) |
| No. of MPPT Trackers | 2 |
| No. of Strings Per MPPT Tracker | 2+1 |
| Rated AC Output And UPS Power | 10000W Max. |
| AC Output Rated Current | 14.5A |
| Output Frequency And Voltage (V) | 50/60Hz|230/400Vac |
| Max. Efficiency | 0.976 |
| Euro Efficiency | 0.97 |
| Installation Style | Well-Mounted |
| Cooling | Smart Cooling |
| External Temperature Sensor | Optional |
| Max. Discharging Current | 210A |
| PV lnput Current | 25A+12.5A |
| AC Output Power | 11000W |
| Peak Power | 2 Times Of Rated Power| 10S |
| Max. AC Current | 16A |
| Max. Continuous AC Pass Through | 60A |
| Current Harmonic Distortion | THDLess Than 3%(Linear loadLess Than 1.5%) |
Key Features
- Pure sine wave output
- 5000W/2 Wide MPPT (120~450vdc) charge controller.
- Self-consumption and Feed-in to the grid.
- Work with or without a battery.
- User-adjustable charging current and voltage.
- Monitoring software for real-time.
Product Description
Galaxy 6G is a 6th generation inverter technology. It comes with loaded accessories like Battery wire, ACDC box, CT sensor, Battery temperature sensor, and communication cables. It supports high PV voltage (140~800vdc) for easy PV installation. We can connect 16 inverters in parallel for a big operation.
- Parallel operation of up to 16 units.
- Work with or without a net meter facility.
- Programmable multiple operation modes.
- Grid-tie, off-grid, and grid-tie with backup.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated AC output power of this model is 10,000W, with a maximum AC output power of 11,000W.
The MPPT range for the Galaxy 6G is 140V to 700V, allowing for flexible solar panel configurations.
This inverter is equipped with 2 MPPT trackers, which can optimize the energy harvest from solar panels.
The maximum DC input power for this inverter is 13,000W, enabling it to handle substantial solar energy input.
This model weighs 45 kg, which is important for installation considerations.
The inverter is compatible with Lithium-ion and Ladeaside battery types.
The noise level of this model is less than 30 dB, making it suitable for residential areas.
The start-up voltage for the Galaxy 6G is 160V, which is necessary for initiating operation.
The maximum discharging current for this inverter is 210A, allowing for substantial power delivery.
The recommended installation style for this model is well-mounted, ensuring stability and efficiency.
The maximum efficiency of the Galaxy 6G is 97.6%, which enhances overall energy conversion.
Up to 16 units of this inverter can be connected in parallel for larger operations.
