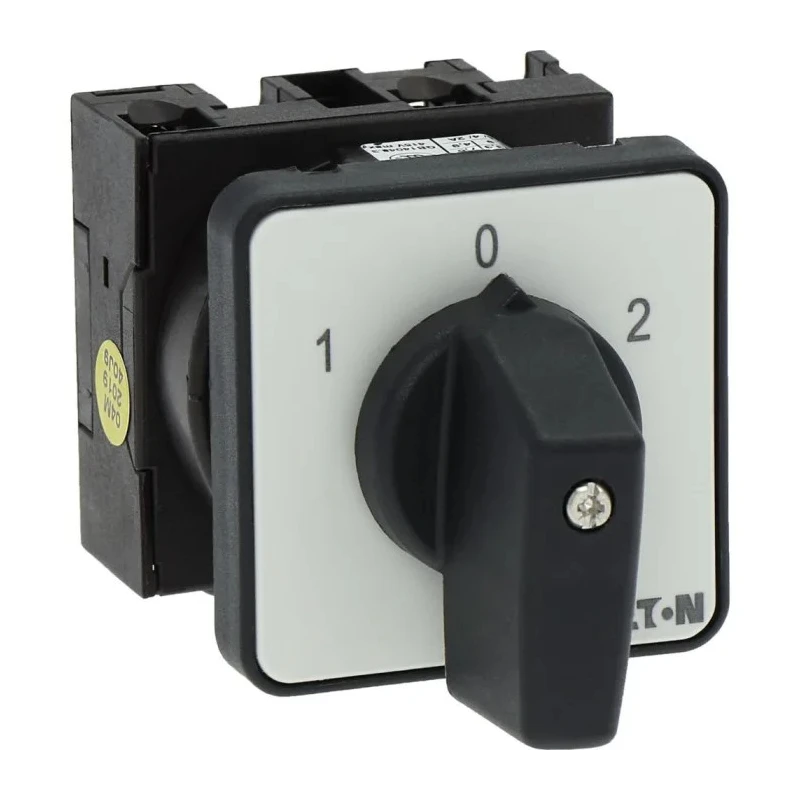

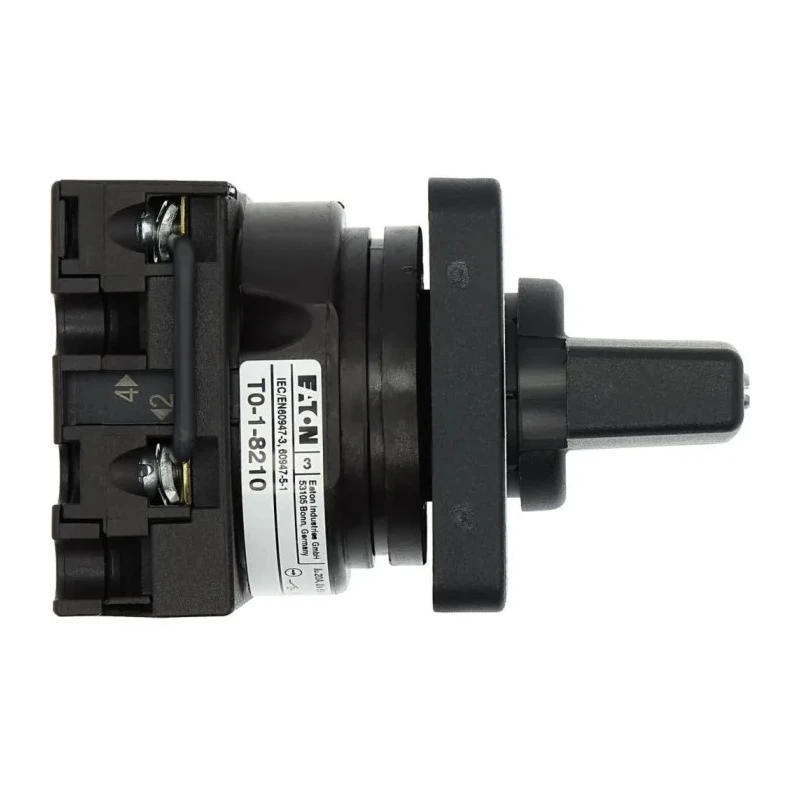

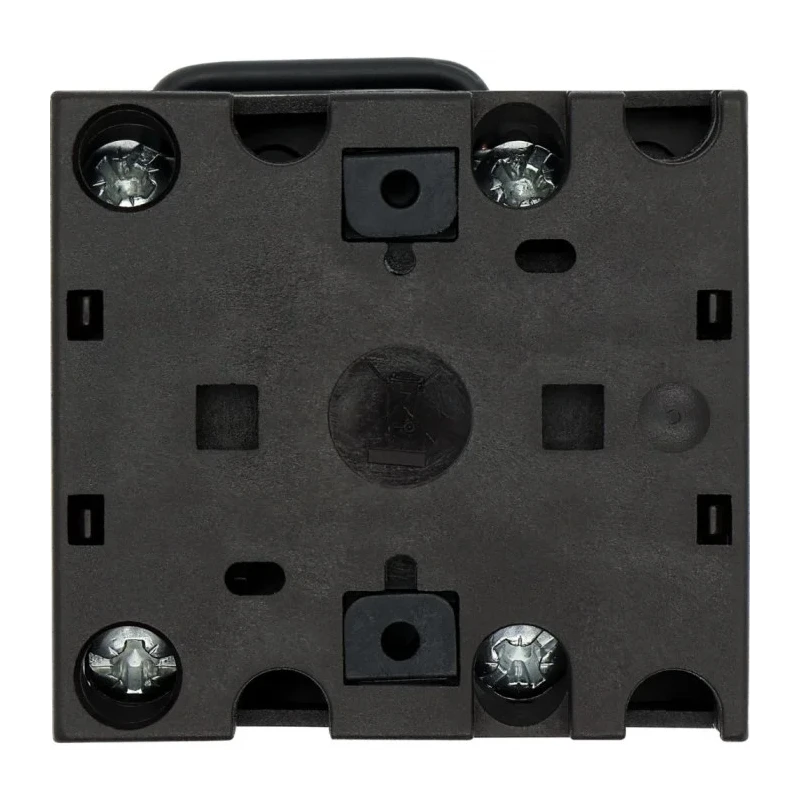

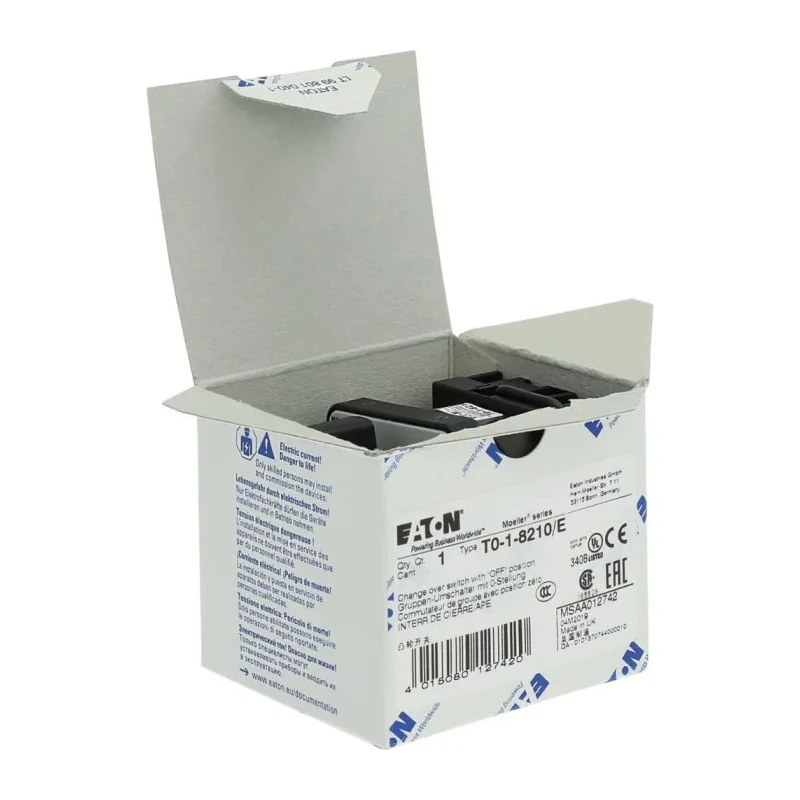

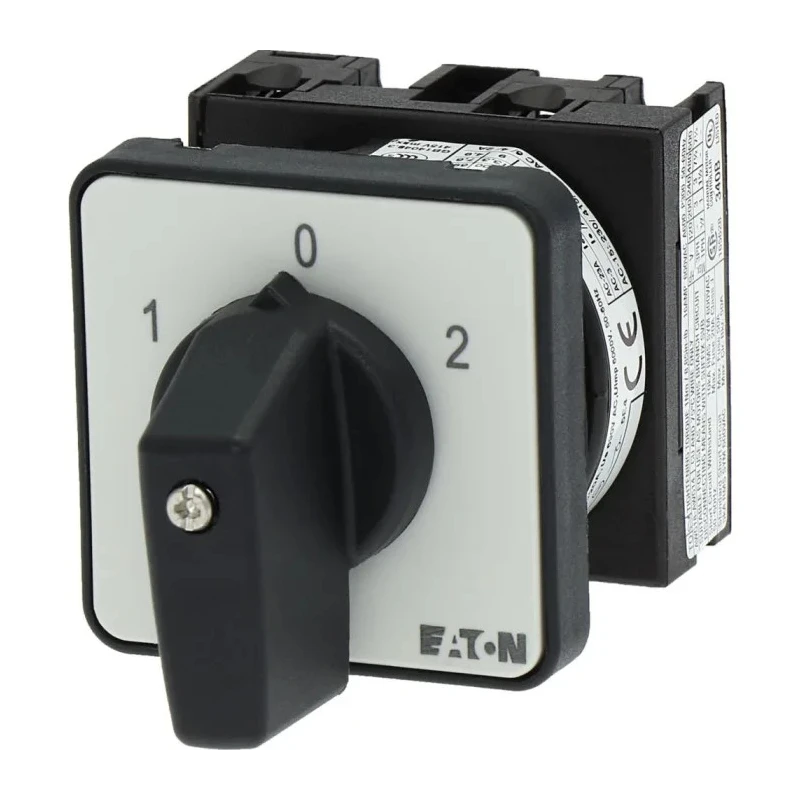

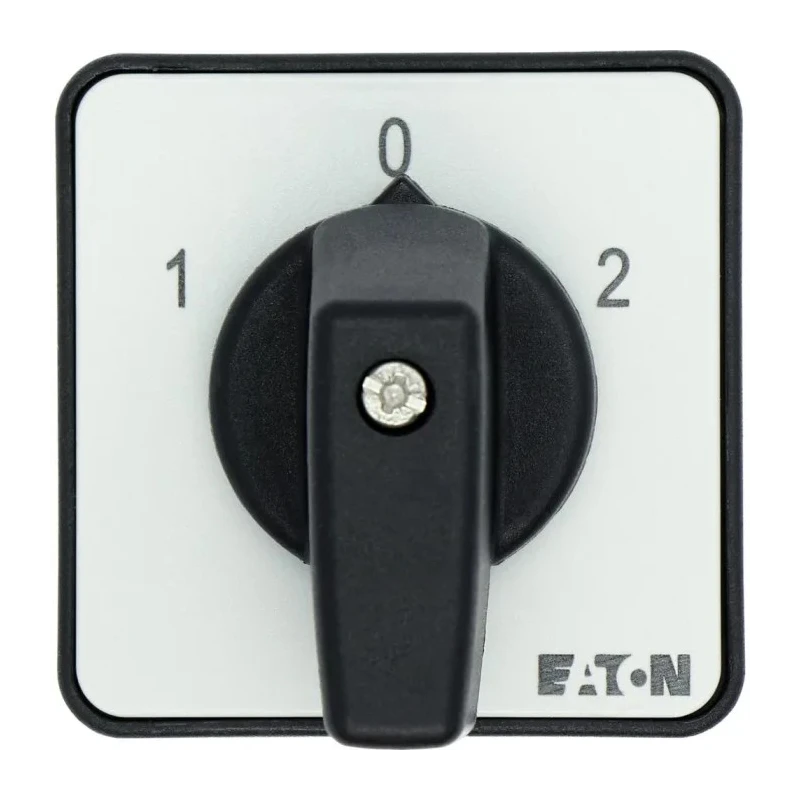

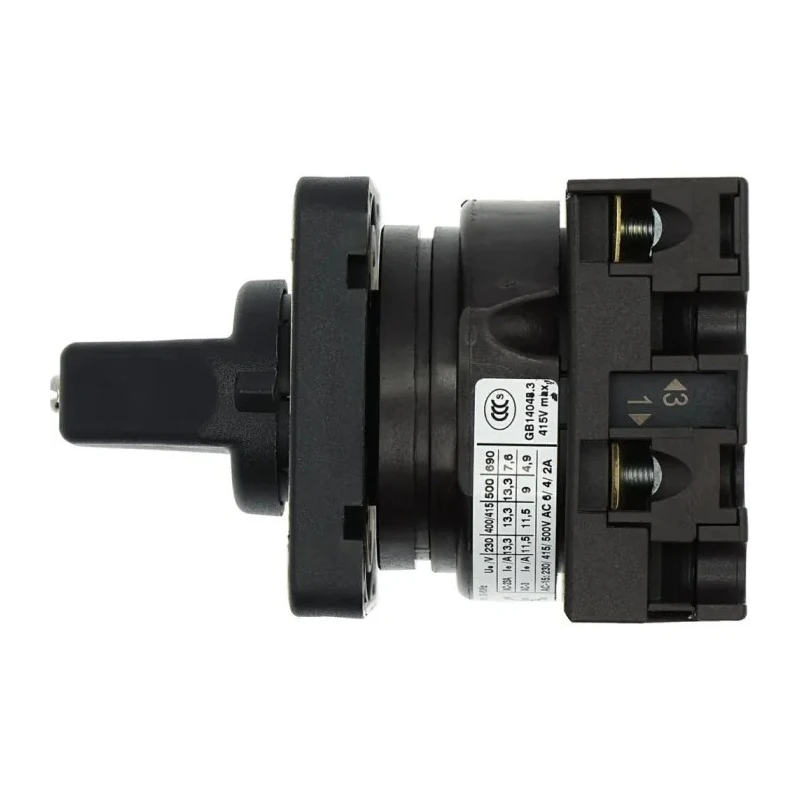

Eaton 3 Position 60° Toggle Actuator Cam Switch 20A 690V AC Flush Mount 012742 T0-1-8210/E

Category Cam Switch Brand Eaton Condition New

Specifications

Country of Origin United Kingdom
Brand Eaton
Length 48mm
Model 012742 T0-1-8210/E
Depth 48mm
IP Rating IP65
Width 81mm
Mount Type Flush
Series T0
Maximum Operating Temperature 50°C
Actuator Type Toggle
Number of Positions 3
Minimum Operating Temperature -25°C
Terminal type Screw
Hazardous Area Certification IECEx
Number of Poles 1
Mechanical Life 10000000Operations
Contact Voltage 690V ac
Contact Current 20A
Angle of Throw 60 °
Eaton, 1P 3 Position , 20ABrand Eaton
BACO, SP 2 Position , 16ABrand BACO

Key Features

  • This cam switch supports 3 positions with a 60° angle of throw for precise control.
  • Rated for a maximum current of 20 amps and maximum voltage of 690 volts AC.
  • Features a robust toggle actuator and screw terminal connections for reliable operation.
  • Flush mount design with dimensions approximately 81mm width, 48mm depth, and 48mm length.
  • IP65 ingress protection ensures resistance to dust and water jets, suitable for industrial environments.
  • Certified to multiple standards including UL 508, IEC/EN 60947, CSA, and IECEx hazardous area certification.
  • Designed for use in control circuits, electrical panels, motor control, HVAC systems, and automation applications.

Product Description

Eaton 012742 T0-1-8210/E 3 Position 60° Toggle Actuator Cam Switch is engineered for versatile electrical applications with a maximum current rating of 20A and voltage rating up to 690V AC. The device features a flush mount design measuring 81mm wide, 48mm deep, and 48mm long ideal for various industrial setups requiring a reliable changeover switch.

This cam switch includes a 60° angle of throw and supports 3 positions, offering precise control in electrical circuit configurations. Its toggle actuator with a short thumb grip facilitates easy, ergonomic manual operation under demanding conditions. Screw terminal connections provide secure and straightforward wiring installation or maintenance.

With an ingress protection rating of IP65, the switch is resistant to dust and low-pressure water jets, enhancing durability in harsh industrial environments. The device complies with critical approvals and certifications such as UL 508, IEC/EN 60947, CSA-C22.2, VDE 0660, CE marking, and IECEx certification for hazardous areas, ensuring safety and reliability.

Commonly employed in control circuits for industrial machinery, electrical panel power distribution, motor control in automation systems, HVAC switching, and configuration controls, this Eaton cam switch supports both 1-phase and 3-phase electrical configurations for operational flexibility.

60° angle of throw with 3-position configuration for accurate switching. Flush mount design complemented by screw terminal type for easy installation. Capable of handling up to 20A contact current and 690V AC contact voltage.

IP65 rated enclosure provides dust tight and water jet protection. Meets multiple international standards and hazardous area certification IECEx. Robust toggle actuator suitable for industrial automation and control. Mechanical life expectancy of 10,000,000 operations increases reliability.

This Eaton cam switch is manufactured in the United Kingdom, guaranteeing quality and adherence to international safety standards. It represents an ideal choice for electrical and industrial automation professionals seeking durable, high-performance switching solutions.

Explore more options in the Eaton Cam Switch range and related electrical automation components on EnvMart.

Eaton 3 Position 60° Toggle Actuator Cam Switch 20A 690V AC Flush Mount 012742 T0-1-8210/E
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This cam switch has a maximum current rating of 20A and a maximum voltage rating of 690V AC.

The flush mount design of this model measures approximately 81mm in width, 48mm in depth, and 48mm in length.

It features a 60° angle of throw and supports 3 positions for precise control.

This model utilizes a toggle actuator, which allows for ergonomic manual operation.

The switch has an IP65 ingress protection rating, making it resistant to dust and low-pressure water jets.

The maximum operating temperature is 50°C, while the minimum operating temperature is -25°C.

It features screw terminal connections for secure and straightforward wiring installation.

It is certified to multiple standards including UL 508, IEC/EN 60947, CSA, and has IECEx hazardous area certification.

The mechanical life expectancy of this model is rated at 10,000,000 operations.

This switch is commonly employed in control circuits, electrical panels, motor control, HVAC systems, and automation applications.

It is manufactured in the United Kingdom, ensuring adherence to quality and international safety standards.

The flush mount design allows for easy installation in various industrial setups, providing a neat and secure fit.
