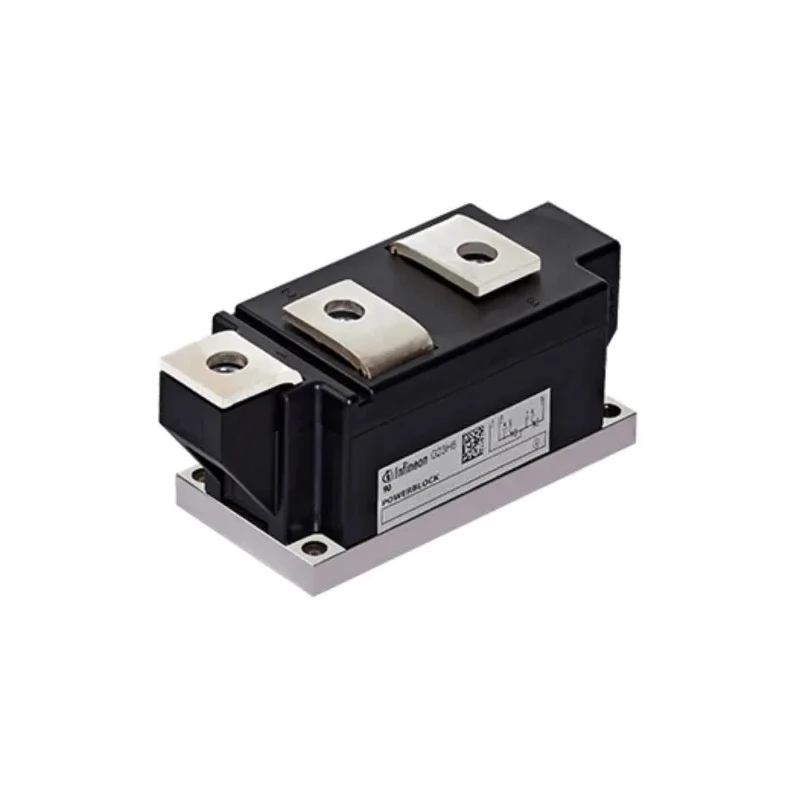

Infineon Thyristor Module 1800 V 20 kA 775 A 250 mA 1.35 V TT780N18KOFHPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TT780N18KOFHPSA1 |
| Series | TT780N18KOF |
| Maximum Operating Temperature | 135°C |
| Rated Average On-State Current Irms | 775A |
| Repetitive Peak Reverse Voltage VDRM | 1800V |
| Surge Current Rating | 20kA |
| Maximum Gate Trigger Current Igt | 250mA |
| Maximum Holding Current Ih | 300mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.35V |
| Repetitive Peak Off-State Current | 120mA |
Key Features
- Supports a repetitive peak reverse voltage of 1800 V ensuring high voltage tolerance.
- Capable of handling surge currents up to 20 kA for transient events.
- Continuous average on-state current rated at 775 A for demanding loads.
- Maximum gate trigger current of 250 mA allowing precise triggering control.
- Maximum operating temperature rated at 135°C for high-temperature durability.
- Pressure contact technology enhances electrical reliability.
- Chassis mount design with a 60 mm base plate for secure installation.
- Optimized for power switching and phase control in industrial use.
Product Description
Infineon TT780N18KOFHPSA1 is a high-performance thyristor module rated for 1800 V repetitive peak reverse voltage and 20 kA surge current, supporting a continuous average on-state current of 775 A. This device features pressure contact technology to ensure high reliability in demanding industrial applications. It offers a maximum gate trigger current of 250 mA and a peak on-state voltage of 1.35 V, balancing efficient conduction with robust triggering capabilities.
Designed to withstand maximum operating temperatures up to 135°C, this Thyristor Module is well-suited for power control, phase control, and switching functions in industrial, manufacturing, and electronic power supply systems. Its chassis mount configuration with a convenient 60 mm base plate simplifies installation in various industrial machinery.
The TT780N18KOFHPSA1 module delivers stable performance with a maximum holding current of 300 mA and a repetitive peak off-state current of 120 mA, ensuring operational safety and durability. With no specific automotive certification, this module is primarily intended for industrial and commercial power electronics.
Engineers and designers can integrate this module into high-current circuits requiring reliable load control and protection. Its robust voltage and current ratings, combined with pressure contact technology, make it a trusted choice for heavy-duty applications.
Supports a repetitive peak reverse voltage of 1800 V ensuring high voltage tolerance. Capable of handling surge currents up to 20 kA for transient events. Continuous average on-state current rated at 775 A for demanding loads.
Maximum gate trigger current of 250 mA allowing precise triggering control. Maximum operating temperature rated at 135°C for high-temperature durability. Pressure contact technology enhances electrical reliability. Chassis mount design with a 60 mm base plate for secure installation.
Optimized for power switching and phase control in industrial use. High peak on-state voltage of 1.35 V balancing efficiency and conduction. Suitable for industrial, manufacturing, and electronic power supply applications.
Explore a wide range of semiconductor modules and components with EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The thyristor module supports a repetitive peak reverse voltage of 1800 V, ensuring high voltage tolerance.
It has a continuous average on-state current rating of 775 A, suitable for demanding loads.
This module is capable of handling surge currents up to 20 kA for transient events.
The maximum gate trigger current is rated at 250 mA, allowing for precise triggering control.
The maximum operating temperature is rated at 135°C, providing high-temperature durability.
The peak on-state voltage is 1.35 V, balancing efficient conduction with robust triggering capabilities.
It features a chassis mount design with a 60 mm base plate for secure installation in various industrial applications.
The maximum holding current is rated at 300 mA, ensuring operational safety and durability.
This model is optimized for power switching and phase control in industrial, manufacturing, and electronic power supply systems.
The repetitive peak off-state current is rated at 120 mA, contributing to the module's operational safety.
The module utilizes pressure contact technology, which enhances electrical reliability in demanding industrial applications.
The country of origin for this thyristor module is India.
