Infineon 1200 V 15 A Schottky Diode Single 2-Pin SMD TO-247 IDWD15G120C5XKSA1

Free Delivery in India | Lowest Global Shipping Charges

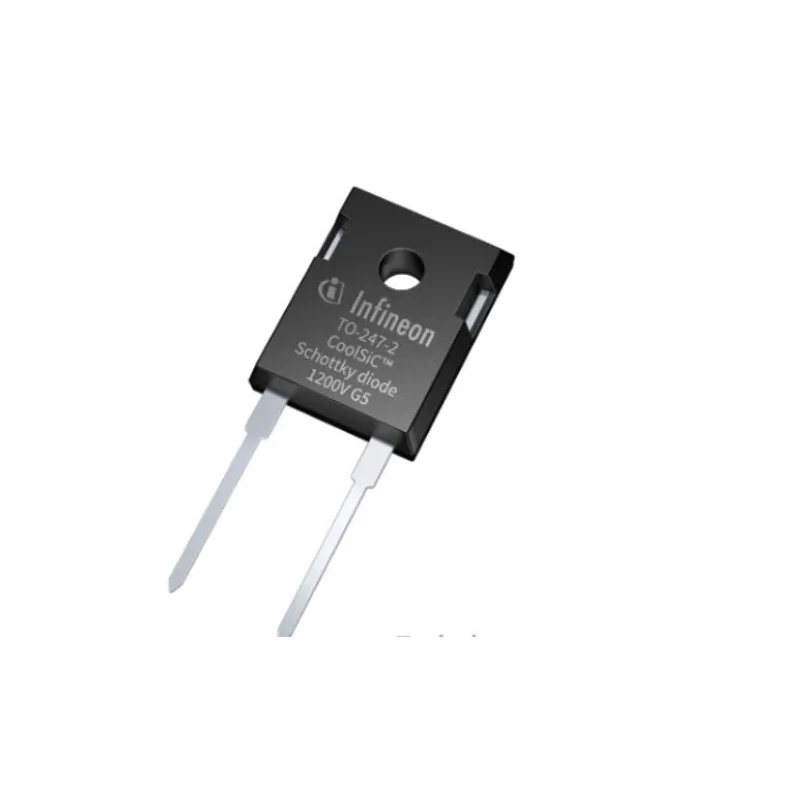

Infineon 1200 V 15 A Schottky Diode Single 2-Pin SMD TO-247 IDWD15G120C5XKSA1

Name: Infineon 1200 V 15 A Schottky Diode Single 2-Pin SMD TO-247 IDWD15G120C5XKSA1
Brand: Infineon
SKU: 307775
Price: 462.25 INR
Availability: InStock



Category Schottky Diode Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Length	40.21mm
Model	IDWD15G120C5XKSA1
Width	15.8mm
Mount Type	SMD
Series	IDWD15G120C5
Maximum Operating Temperature	175°C
Package Type	TO-247
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	15A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	8μA
Peak Non-Repetitive Forward Surge Current Ifsm	140A
Maximum Forward Voltage Vf	1.7V

Key Features

Maximum continuous forward current of 15 amperes for robust performance.
Peak reverse repetitive voltage capability of 1200 volts supports high voltage applications.
Low maximum forward voltage of 1.7 volts ensures efficient conductivity.
High surge current capacity up to 140 amperes for transient loads.
Wide operating temperature range from -55°C to 175°C for versatile industrial use.
2-pin TO-247 package facilitates easy installation in power electronic circuits.
Temperature-independent switching behavior enhances reliability under varying temperatures.
Extended creepage and clearance distances increase safety in high pollution environments.

Product Description

Infineon IDWD15G120C5XKSA1 is a high-performance 1200 V, 15 A Schottky diode housed in a 2-pin TO-247 SMD package. This diode belongs to the CoolSiC™ generation 5 series, offering excellent energy efficiency and reliable operation in demanding industrial environments.

The device features a maximum continuous forward current rating of 15 A and can withstand peak non-repetitive forward surge currents up to 140 A. Its maximum forward voltage is rated at 1.7 V, optimizing conduction losses. With a peak reverse repetitive voltage (VRRM) of 1200 V, it suits high-voltage rectification applications.

The temperature range spans from -55°C minimum to 175°C maximum, enabling usage across varied environmental conditions. This component's robust design includes extended creepage and clearance distances of 8.7 mm to enhance safety in high-pollution environments, preventing electrical breakdown.

Designed for industrial power electronics, the diode's temperature-independent switching behavior and absence of reverse recovery current reduce switching losses and improve overall efficiency. It is ideal for use with silicon IGBTs or super-junction MOSFETs in power factor correction (PFC) boost stages, Vienna rectifier circuits, and three-phase conversion systems.

The TO-247 package enables secure mounting and effective heat dissipation. This Schottky diode is suitable for applications in industrial automation, power supplies, renewable energy converters, and electric vehicle charging stations.

Maximum continuous forward current of 15 A for reliable operation. Peak reverse repetitive voltage of 1200 V supports high-voltage systems. Low forward voltage of 1.7 V reduces power losses in conduction. High surge current capability up to 140 A ensures durability during transient conditions.

Wide temperature range from -55°C to 175°C supports diverse environments. 2-pin TO-247 SMD package facilitates easy replacement and mounting. Temperature-independent switching behavior increases efficiency. Extended creepage and clearance distances improve insulation and safety.

No reverse recovery current minimizes switching losses.

Explore EnvMart’s extensive selection of semiconductor Schottky Diodes including this highly efficient Infineon model IDWD15G120C5XKSA1 for your industrial and electronic component needs.
