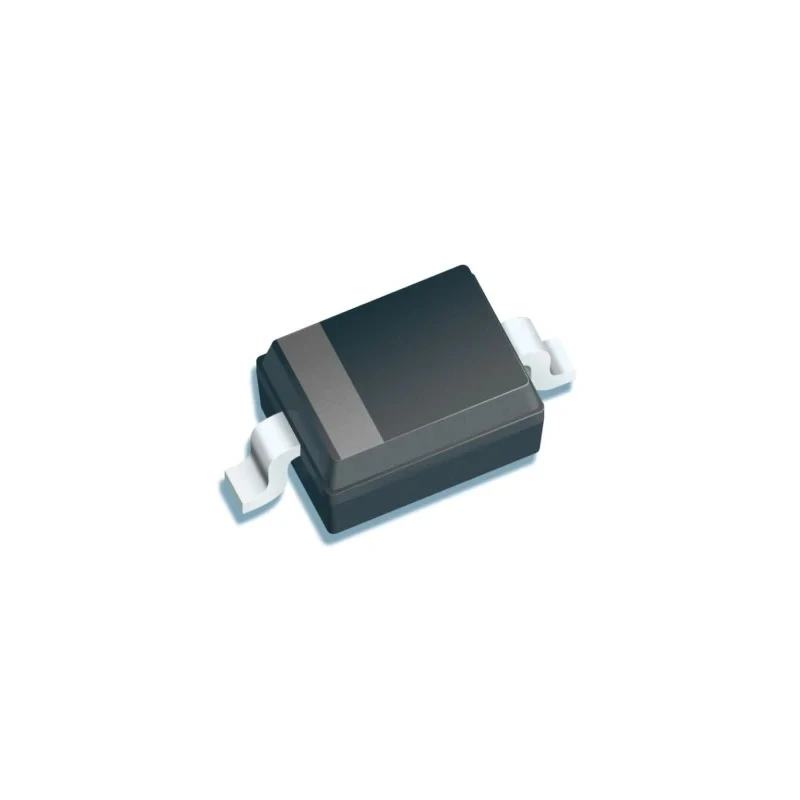

Infineon Silicon Schottky Diode 3-Pin SOT-323 8 V 130 mA BAT6804WH6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.9mm |
| Length | 2mm |
| Model | BAT6804WH6327XTSA1 |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | BAT68 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 130mA |
| Peak Reverse Repetitive Voltage Vrrm | 8V |
| Diode Configuration | Series |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 800mA |
| Maximum Forward Voltage Vf | 500mV |
| Peak Reverse Recovery Time trr | 5ns |
Key Features
- Surface mount type with compact SOT-323 package.
- Maximum continuous forward current of 130 mA ensures efficient conduction.
- Peak reverse repetitive voltage rated at 8 V for stable operation.
- Low forward voltage drop of 500 mV minimizes power loss.
- Extremely fast peak reverse recovery time of 5 ns.
- Automotive standard AEC-Q101 compliant for reliability.
- Operational temperature range from -55°C up to 150°C.
- Guard ring protection enhances device durability.
Product Description
Infineon BAT6804WH6327XTSA1 is a high-performance Silicon Schottky Diode featuring a 3-pin SOT-323 surface mount package. Rated for a maximum continuous forward current of 130 mA and reverse repetitive voltage of 8 V, it is optimized for applications requiring high-speed switching and low forward voltage drop.
This diode is widely used in mixer applications across the VHF and UHF frequency ranges, wireless communication devices, satellite receivers, base stations, high-speed data networks, and RFID systems. Its ultra-fast switching characteristics are complemented by a peak reverse recovery time of just 5 ns, reducing switching losses and electromagnetic interference.
The device is RoHS compliant and designed to meet automotive quality standards with AEC-Q101 certification, ensuring reliability and performance in harsh environments. Featuring a guard ring for enhanced protection and a peak non-repetitive forward surge current rating of 800 mA, this Schottky diode provides durability under surge conditions.
Its compact dimensions - 2 mm length, 1.25 mm width, and 0.9 mm height - allow it to be integrated into space-constrained circuit designs. Operating temperature range extends from -55°C to 150°C, suitable for varied industrial and automotive environments.
Compact surface mount SOT-323 package for efficient PCB layout. High-speed switching suitable for RF and data communication circuits. Low forward voltage reduces system power consumption. Conformance to automotive AEC-Q101 standard assures quality.
Wide operating temperature range for industrial and automotive use. Guard ring protection improves resistance to electrical stress. Surge current capability of 800 mA protects against transient overloads.
This Infineon Silicon Schottky Diode BAT6804WH6327XTSA1 is ideal for use in semiconductor applications requiring fast, efficient rectification and switching in electronic components and systems. It supports applications in industrial electronics, communications, automotive electronics, and power management circuits.
Explore more semiconductor and diode solutions at EnvMart for reliable components suited to your advanced electronic designs.
Explore more products in our Schottky Diodes & Rectifiers category.
