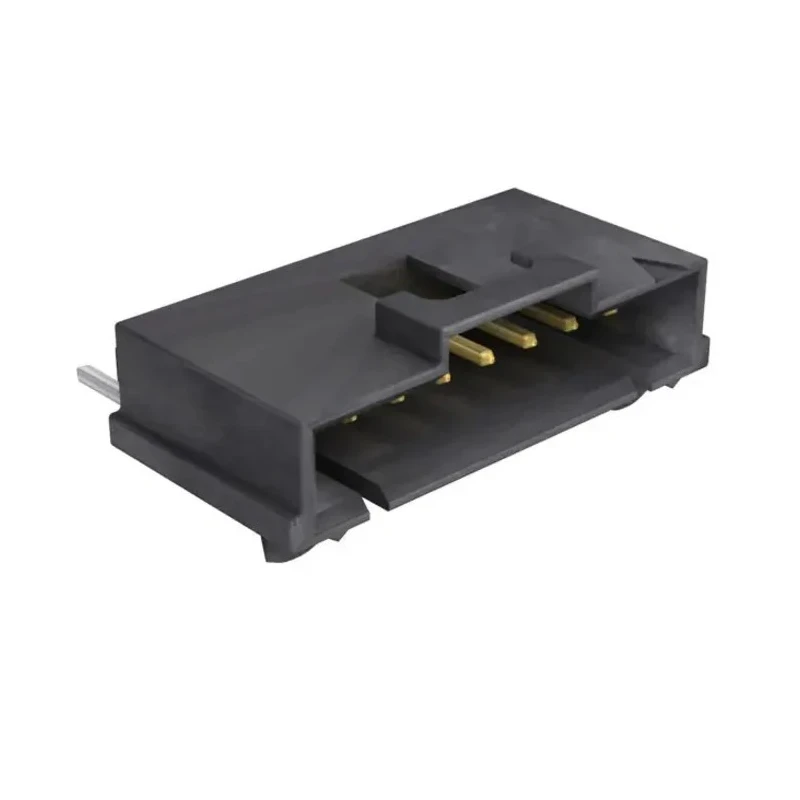

Molex SL Series Right Angle Surface PCB Header 8 Contacts 2.54 mm Pitch 1 Row Shrouded 15912085

Molex 15912085 SL Series Right Angle Surface PCB Header is engineered for high reliability in electrical connections on printed circuit boards. Featuring 8 male contacts arranged in a single row with a 2.54 mm pitch, this shrouded header provides durable wire-to-board interfacing suitable for diverse electronic applications.

Its housing is molded from high temperature thermoplastic, offering resistance to heat and mechanical stress. The contacts use brass and phosphor bronze materials plated with gold, ensuring excellent corrosion resistance and minimal contact resistance. The termination type is tin, facilitating strong solder joints with standard PCB assembly processes.

Rated for currents up to 3 amperes and voltages of 250 volts, this PCB Header supports a broad range of electronic circuits. It is built to operate reliably across a temperature range of -40°C to 105°C, accommodating applications in industrial, commercial, and consumer electronics.

The right angle orientation and surface mounting technology enable compact PCB layouts with secure mechanical attachment. The shrouded design safeguards the contacts against accidental damage and misalignment during connector mating.

The SL Series features 8 contacts with a 2.54 mm pitch in a single row configuration. Shrouded design enhances connection reliability and contact protection. Made with high temperature thermoplastic housing for durability under thermal stress.

Brass and phosphor bronze contacts plated with gold reduce corrosion and resistance. Supports current up to 3A and voltage up to 250V. Utilizes tin termination for optimal soldering compatibility. Operational temperature range from -40°C to 105°C supports diverse environments.

Complies with recognized industry safety standards CSA LR19980 and UL E29179.

This connector is ideal for use in electronic equipment manufacturing, power supply units, industrial control systems, and other PCB-based assemblies requiring robust wire-to-board connections. It assists engineers and designers in achieving reliable and compact electronic designs.
