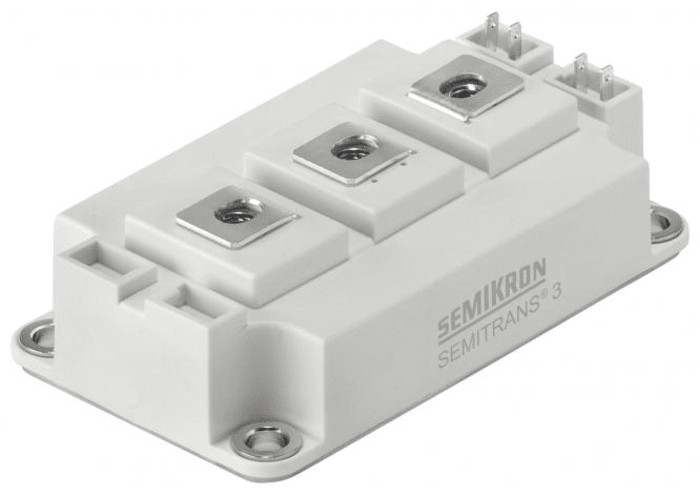

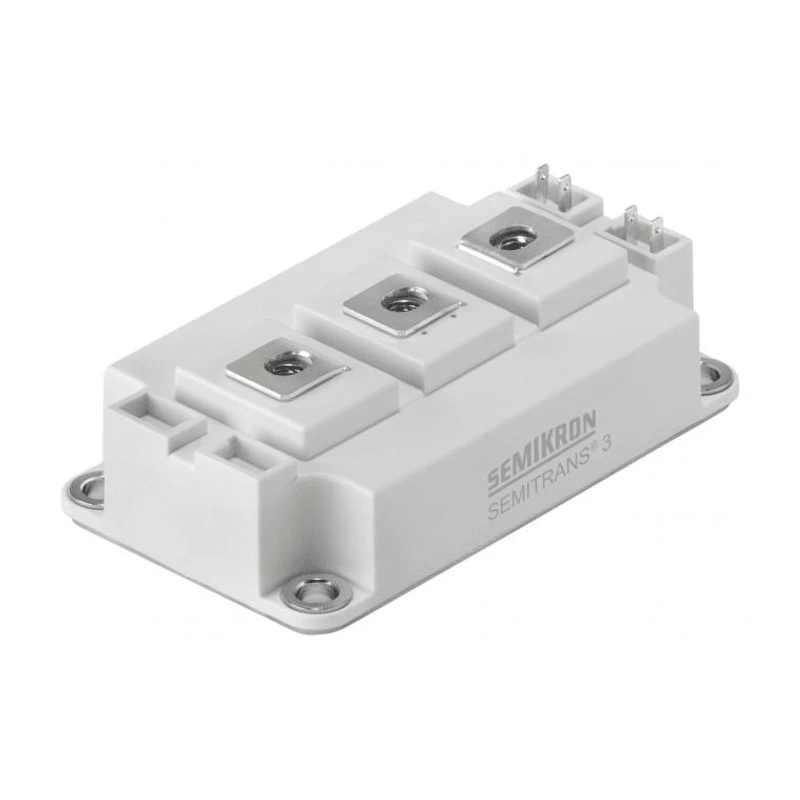

Semikron Danfoss N-Channel IGBT Module SKM400GB12T4, 616 A, 0.9 V, 7-Pin SEMITRANS3, Surface Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semikron Danfoss |
| Height | 30.5mm |
| Length | 106.4mm |
| Model | SKM400GB12T4 |
| Width | 61.4mm |
| Mount Type | Surface |
| Series | SKM400GB12T4 |
| Maximum Operating Temperature | 175°C |
| Package Type | SEMITRANS3 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL, File no. E63532 |
| Pin Count | 7 |
| Maximum Continuous Collector Current Ic | 616A |
| Maximum Collector Emitter Voltage Vceo | 0.9V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.4V |
| Channel Type | N |
| Maximum Gate Emitter Voltage VGEO | 20 V |
| Number of Transistors | 2 |
Key Features
- The IGBT4 generation module supports switching speeds up to 20 kHz for efficient operation.
- Features a 7-Pin SEMITRANS3 package with two series-connected IGBTs and an integrated soft-switching CAL diode.
- Constructed with a Direct Bonded Copper (DBC) isolated baseplate, enhancing thermal performance.
- Built-in integrated gate resistor improves switching reliability and power cycling capability.
- Operates reliably within a temperature range from -40°C up to 175°C for demanding industrial environments.
- Complies with UL standards under File no. E63532, ensuring safety and quality.
- Ideal for applications including electronic welders, AC inverter drives, and uninterruptible power supplies (UPS).
Product Description
Semikron Danfoss SKM400GB12T4 N-Channel IGBT Module is a high-performance power semiconductor device designed for industrial and electronic applications requiring robust switching capabilities.
As part of the IGBT4 generation, this module supports switching frequencies up to 20 kHz and integrates a soft-switching 4th generation CAL diode, improving efficiency in power conversion tasks.
The device incorporates a Direct Bonded Copper (DBC) isolated copper baseplate that promotes excellent thermal management critical for high current loads of up to 616 A continuous collector current.
This 7-pin SEMITRANS3 surface mount module contains two series-connected IGBTs with an integrated gate resistor to enhance switching speed and minimize power losses.
The module operates reliably under harsh conditions spanning from -40°C minimum to 175°C maximum operating temperatures, making it suitable for industrial welding equipment, AC inverter drives, and UPS systems.
The 7-pin configuration and compact dimensions (106.4 x 61.4 x 30.5 mm) facilitate easy integration into power modules and electronic assemblies. UL certification (File no. E63532) ensures adherence to safety and reliability standards.
The SKM400GB12T4 series is optimized for electronic welding, AC inverter drives, and uninterruptible power supplies, offering reliability in demanding industrial environments. Explore EnvMart's range of power modules and semiconductor devices for enhanced industrial automation and electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 616 A.
It operates reliably within a temperature range from -40°C to 175°C.
This model features a 7-Pin SEMITRANS3 package type.
The maximum collector emitter voltage (Vceo) is 0.9 V.
This model contains two series-connected transistors.
The dimensions are 106.4 mm in length, 61.4 mm in width, and 30.5 mm in height.
It uses a surface mount type for installation.
The maximum gate emitter voltage (VGEO) is 20 V.
It complies with UL standards under File no. E63532.
This model is ideal for applications such as electronic welders, AC inverter drives, and uninterruptible power supplies (UPS).
The maximum collector emitter saturation voltage (VceSAT) is 2.4 V.
It features a Direct Bonded Copper (DBC) isolated baseplate that enhances thermal performance.
