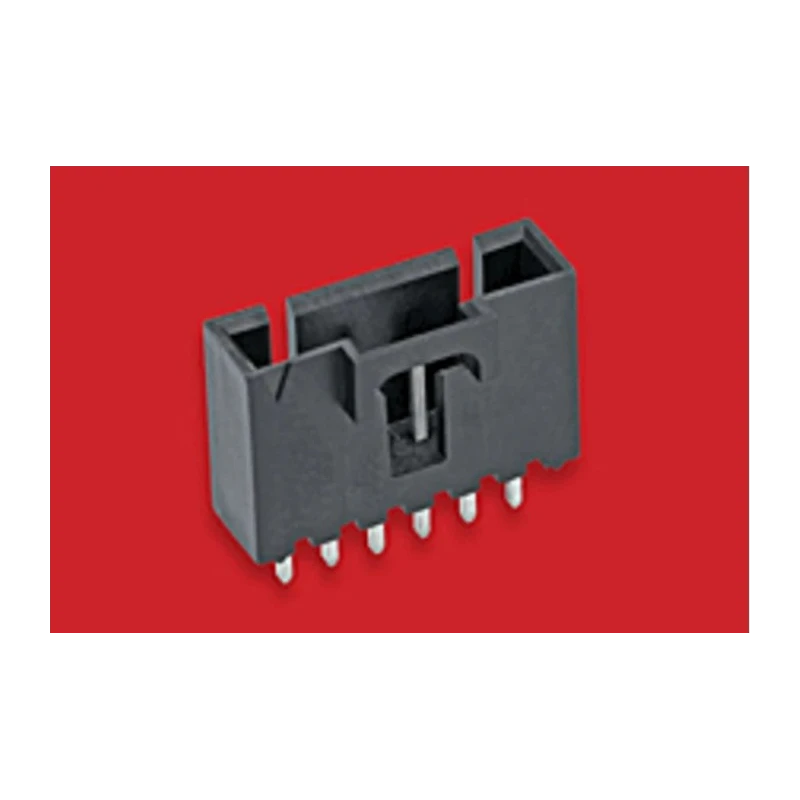

Molex SL Series Straight Through Hole PCB Header, 7 Contact(s), 2.54 mm Pitch, 1 Row, Shrouded 70543-0111

Molex 70543-0111 SL Series Straight Through Hole PCB Header is a precision-engineered connector designed for wire-to-board applications requiring durability and secure electrical connections.

This PCB header features 7 male contacts in a single row with a standard 2.54 mm pitch, ideal for circuit board assembly where reliable interconnectivity is critical.

The housing is made of thermoplastic material providing mechanical strength and electrical insulation, while the shrouded design protects the contacts from accidental damage and enhances connection security.

Contacts are constructed from brass and finished with 0.76μm gold selective plating for excellent electrical conductivity and corrosion resistance, with tin plating on the PC tail to optimize solder joint reliability.

The connector supports a maximum current of 3A and a voltage rating of 250V, making it suitable for various electronic and electrical applications in industrial, manufacturing, and laboratory environments.

Operating temperature ranges from -40°C to 105°C, allowing usage in diverse ambient conditions. The pin tail length of 3.3 mm ensures secure soldering to the PCB through the through-hole mounting style.

Manufactured under high-quality standards in the United States, this Molex PCB header meets customer demands for robust, reliable interconnection solutions. Features a 2.54 mm pitch for standard spacing. Single row, shrouded design ensuring reliable connector protection.

Brass contacts with 0.76μm gold selective plating and tin PC tail plating. Capable of handling 3A current and supports voltage up to 250V. Thermoplastic housing suited for operating temperatures from -40°C to 105°C. Tail pin length measures 3.3 mm for optimal soldering.

Through hole mount type ensures strong mechanical retention. Male contact gender with solder termination type. Manufactured in the United States with high-quality standards. Explore more Molex PCB Headers and connectors for your electronics projects and professional applications on EnvMart.
