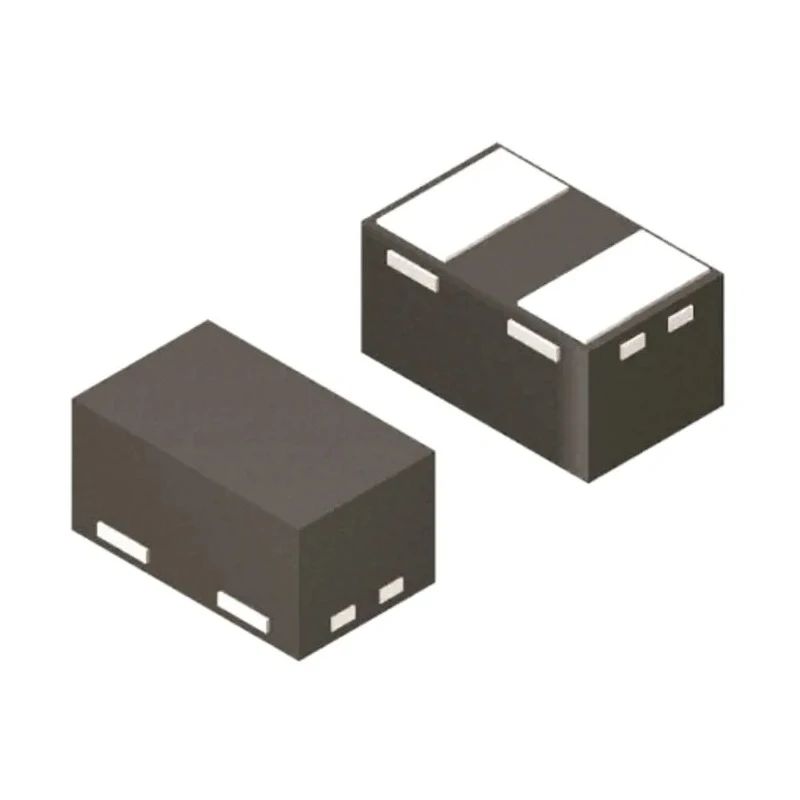

STMicroelectronics 1-Element Uni-Directional ESD Protection Array 300 W, 2-Pin SOD-882 ESDA8P30-1T2

STMicroelectronics ESDA8P30-1T2 1-Element Uni-Directional ESD Protection Array, featuring a 2-pin SOD-882 surface mount package, provides robust ESD protection with a peak pulse power dissipation of 300 W. Designed for use in electronic circuit protection, this device is ideal for safeguarding sensitive components against electrostatic discharge events.

The ESDA8P30-1T2 utilizes a single diode configuration for uni-directional ESD protection, supporting a peak pulse current (Ippm) of 30 A and a clamping voltage of 12 V. The device offers a minimum breakdown voltage of 6.9 V and a maximum reverse stand-off voltage of 6.3 V, ensuring effective protection within its operational limits.

Its compact SOD-882 package measures 1 mm in length, 0.6 mm in width, and 0.4 mm in height, making it suitable for high-density surface mount applications. The diode operates efficiently over a wide temperature range from -55°C to 150°C and features a low maximum reverse leakage current of 300 nA, enhancing performance and reliability in electronics and power delivery systems.

This ESD protection array is particularly suited for modern USB Type-C charging devices and adapters, supporting fast and secure power delivery solutions up to 100 W. It assists designers in creating thinner, smaller, and more robust electronic devices with enhanced protection against voltage spikes and electrostatic events.

This device features a single diode configuration for uni-directional ESD protection. The package dimensions are compact, measuring 1 mm length, 0.6 mm width, and 0.4 mm height. It supports a peak pulse current of up to 30 A and a maximum operating temperature of 150°C.

The device operates with a minimum breakdown voltage of 6.9 V and a maximum reverse stand-off voltage of 6.3 V. Designed for surface mount applications with low maximum reverse leakage current of 300 nA. Temperature operating range spans from -55°C to 150°C, suitable for harsh environments.

Ideal for protecting USB Type-C power delivery devices against ESD events. The product is manufactured in China and intended for industrial and electronic component applications.

STMicroelectronics continues to deliver innovative and reliable semiconductor solutions for industrial, consumer electronics, and power protection applications. Explore related ESD protection and TVS diode products on EnvMart for comprehensive circuit protection solutions.
