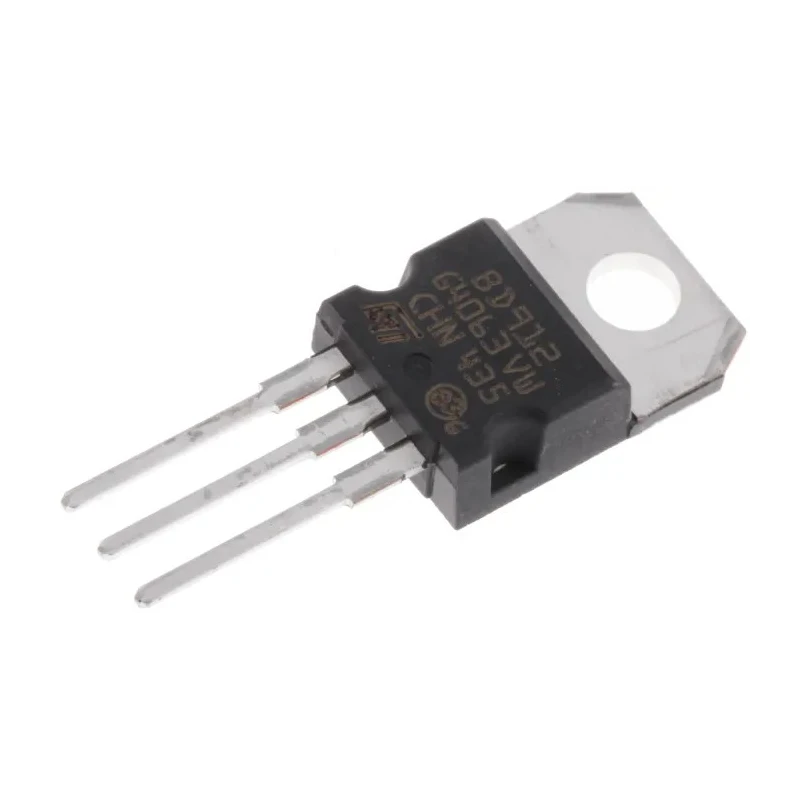

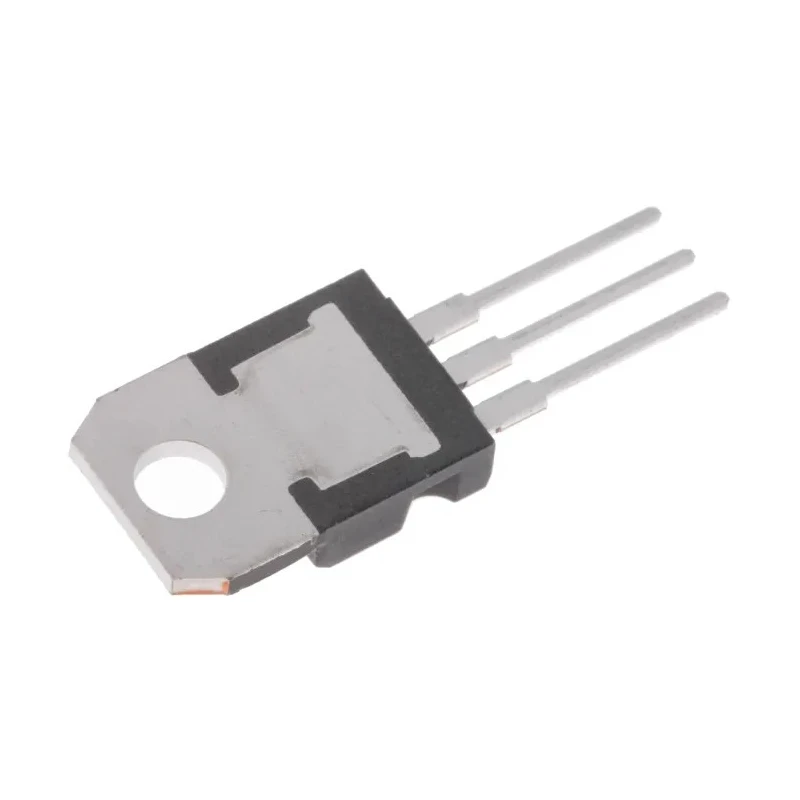

STMicroelectronics PNP Power Transistor, -15 A DC Collector Current, -100 V Collector Emitter Voltage, 90 W TO-220 BD912

STMicroelectronics BD912 is a PNP power transistor designed for high-power electronic switching and amplification applications. It supports a maximum DC collector current of -15 A and can withstand a maximum collector emitter voltage of -100 V, making it suitable for demanding power circuits.

This transistor is housed in a TO-220 package, which provides robust thermal management and reliable through-hole mounting for durable assembly on printed circuit boards. Its maximum power dissipation rating is 90 W, enabling it to handle significant power loads safely under proper heat dissipation conditions.

The device exhibits a single transistor configuration with a minimum DC current gain (hFE) of 15, assuring effective amplification in power control circuits. It has a maximum operating temperature of 85 degrees Celsius, suitable for typical industrial environments.

With a maximum transition frequency of 3 MHz, the BD912 is efficient for moderate frequency applications including power supply regulators, motor control, and high-current switching.

The transistor has 3 pins configured in the standard TO-220 layout, and includes maximum collector base voltage of 100 V and maximum emitter base voltage of 5 V, ensuring protection and stability within these parameters.

This PNP transistor is optimal for use in power electronics, industrial control, and electronic equipment due to its reliable specifications. Its through-hole TO-220 package facilitates easy installation and heat sinking capabilities.

Designed with STMicroelectronics quality standards, ideal for professional electronic assembly and repairs.

The BD912 power transistor is commonly used in industrial, laboratory, and power management applications, offering robust performance where high current and voltage control is needed. Explore more advanced semiconductor solutions in the Power Transistors category at EnvMart.
