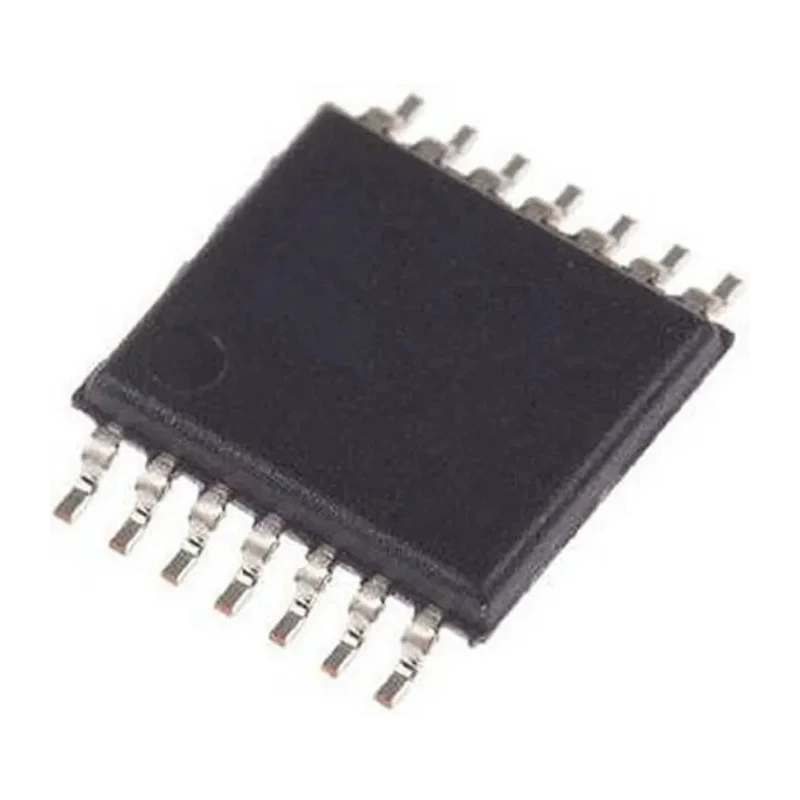

Nexperia Schmitt Trigger Input Inverter 2 Elements 14-Pin TSSOP 74LVC14APW,118
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 950μm |
| Length | 5.1mm |
| Model | 74LVC14APW,118 |
| Width | 4.5mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | Single Ended |
| Series | 74LVC14A |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 14 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | 74LVC |
| Logic Function | Inverter Schmitt Trigger |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 9.5ns |
| Maximum Low Level Output Current | 24mA |
| onsemi Schmitt Trigger Input MC74LCX14DTR2G Inverter 6, 14-Pin TSSOPBrand | onsemi |
Key Features
- The device operates with a supply voltage range from 1.65 V to 5.5 V.
- It features Schmitt Trigger input for noise immunity enhancement.
- Maximum propagation delay time is 9.5 ns at capacitive load.
- Designed for surface mounting with a small footprint 14-pin TSSOP package.
- It supports input compatibility with LVTTL/TTL and output compatibility with LVCMOS logic levels.
- Operating temperature range spans from - 40°C to +125°C, suitable for industrial use.
- The logic family is 74LVC providing low power consumption and high speed.
- The product includes two inverter elements on a single chip, easing circuit design.
Product Description
Nexperia 74LVC14APW,118 Schmitt Trigger Input Inverter IC is a low-voltage CMOS logic device designed for signal conditioning and waveform shaping in industrial, automotive, and general-purpose electronic circuits.
Featuring two inverter elements in a 14-pin TSSOP surface mount package, this device provides Schmitt Trigger input functionality, enhancing noise immunity for digital signals. The device operates over a wide voltage range from 1.65 V up to 5.5 V, making it suitable for various power supply environments. With maximum propagation delay time of 9.5 nanoseconds, it supports high-speed switching applications.
This logic IC has an operating temperature range from - 40°C to +125°C, compliant with industrial temperature standards, and integrates seamlessly in circuits needing reliable signal inverters with Schmitt Trigger characteristics. It is compatible with LVTTL/TTL inputs and outputs CMOS logic signals, offering flexibility for mixed-logic designs.
The compact TSSOP package with 14 pins provides ease of mounting on printed circuit boards, saving space without sacrificing performance. Typical applications include waveform shaping, noise filtering, signal conditioning, buffering digital signals, and logic level translation in electronic manufacturing, control systems, and automotive electronics.
The device contains 2 inverter elements with Schmitt Trigger inputs. Supply voltage range: 1.65 V to 5.5 V for versatile power options. Maximum propagation delay time of 9.5 ns ensures fast response. Industrial operating temperature range from - 40°C to +125°C.
Compact 14-pin TSSOP surface mount package minimizes PCB footprint. Compatible input/output logic levels suitable for LVTTL/TTL and LVCMOS. Low power consumption with high speed, from the 74LVC logic family. Robust performance for industrial, automotive, laboratory electronic designs.
Easy integration in signal conditioning and waveform processing applications. Discover more electronic semiconductor and Inverter ICs at EnvMart for your industrial and embedded solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range from 1.65 V to 5.5 V.
The maximum propagation delay time is 9.5 ns at capacitive load.
It supports input compatibility with LVTTL/TTL and output compatibility with LVCMOS logic levels.
The operating temperature range spans from -40°C to +125°C, making it suitable for industrial applications.
It comes in a 14-pin TSSOP surface mount package.
This model contains two inverter elements on a single chip.
The dimensions are 950μm in height, 4.5mm in width, and 5.1mm in length.
It is designed for surface mounting, which helps save space on printed circuit boards.
The logic family is 74LVC, which provides low power consumption and high speed.
The maximum high-level output current is -24mA, and the maximum low-level output current is 24mA.
It is suitable for applications such as waveform shaping, noise filtering, signal conditioning, and logic level translation.
The country of origin for the 74LVC14APW,118 is India.
