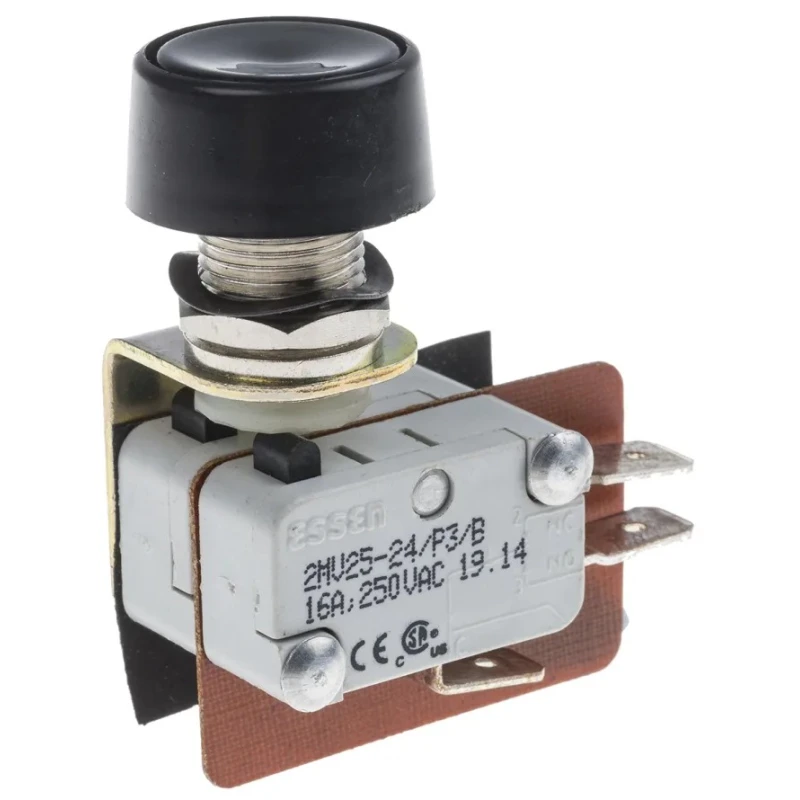

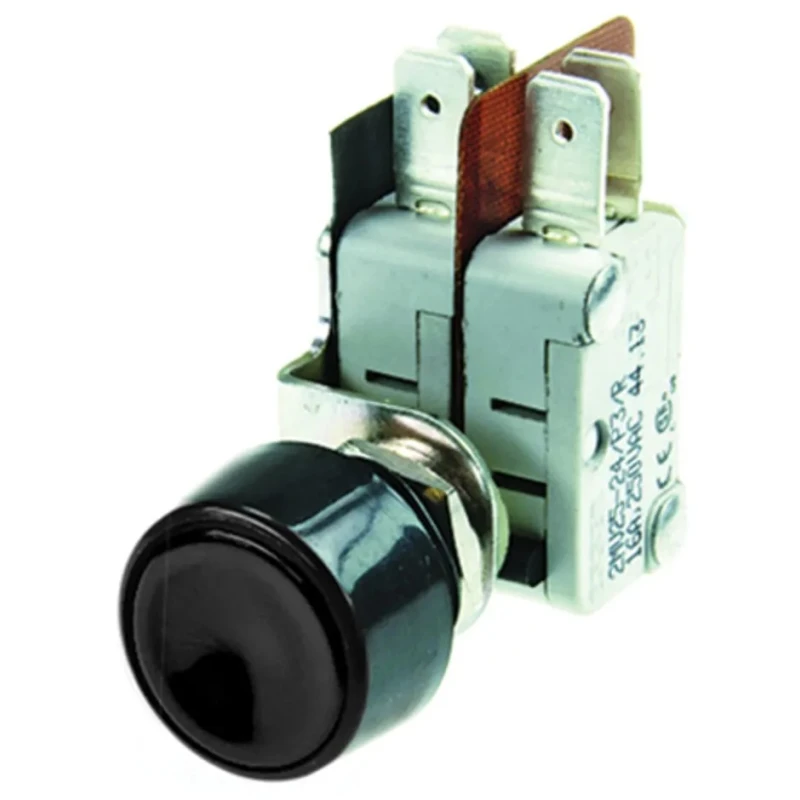

RS PRO Button Micro Switch Quick Connect Terminal 16A 250 V AC DPDT IP40 804-6243

RS PRO 804-6243 Button Micro Switch is a robust miniature switch designed for heavy-duty industrial applications requiring reliable and precise control. It supports a 16A switch contact current at 250 V AC, making it suitable for demanding electrical environments. The switch features a DPDT (Double Pole Double Throw) contact configuration with 2 normally open (2NO) and 2 normally closed (2NC) contacts, allowing versatile circuit control possibilities.

The housing is made of glass-filled flame retardant thermoplastic, which ensures excellent durability and resistance against mechanical and thermal stress. The button actuator offers a snap action mechanism that provides consistent operation with a low operating force of 800 grams. This switch is equipped with 6.35mm quick connect terminals, simplifying installation and wiring procedures.

Designed for panel mounting, it fits into a 12.5mm cutout, making it compatible with many industrial control panels. The silver contacts over copper terminals minimize the risk of contact oxidation, ensuring stable electrical conductivity through extended mechanical life cycles. This makes it ideal for automotive applications, vending machines, telecommunications equipment, security instrumentation, conveyors, and machine tools.

Operating in temperature ranges from -85°C to 140°C, the switch can be deployed in challenging environments. It is IP40 rated, providing protection against solid objects greater than 1mm, which is suitable for indoor applications. Compliant with IEC 1058-1 and certified by CE and CSA, the RS PRO 804-6243 ensures safety and quality standards required in industrial applications.

Features a DPDT double-break contact configuration for versatile switching. Constructed with glass-filled flame retardant thermoplastic housing for durability. Equipped with 6.35mm quick connect terminals for easy wiring.

Silver contacts provide secure conductivity and resist oxidation. Compact design fits a 12.5mm panel cutout for convenient mounting. Snap action mechanism ensures precise and responsive operation. Operating temperature range from -85°C to 140°C suits harsh environments.

Meets IEC 1058-1 standard and carries CE and CSA approvals. Lightweight design at 32.3g enhances ease of installation. IP40 rated for protection against solid objects, ideal for indoor industrial use.

This RS PRO micro switch is perfect for industrial automation, manufacturing process control, electrical machinery assembly, HVAC systems, and other commercial applications demanding high reliability and safety.
