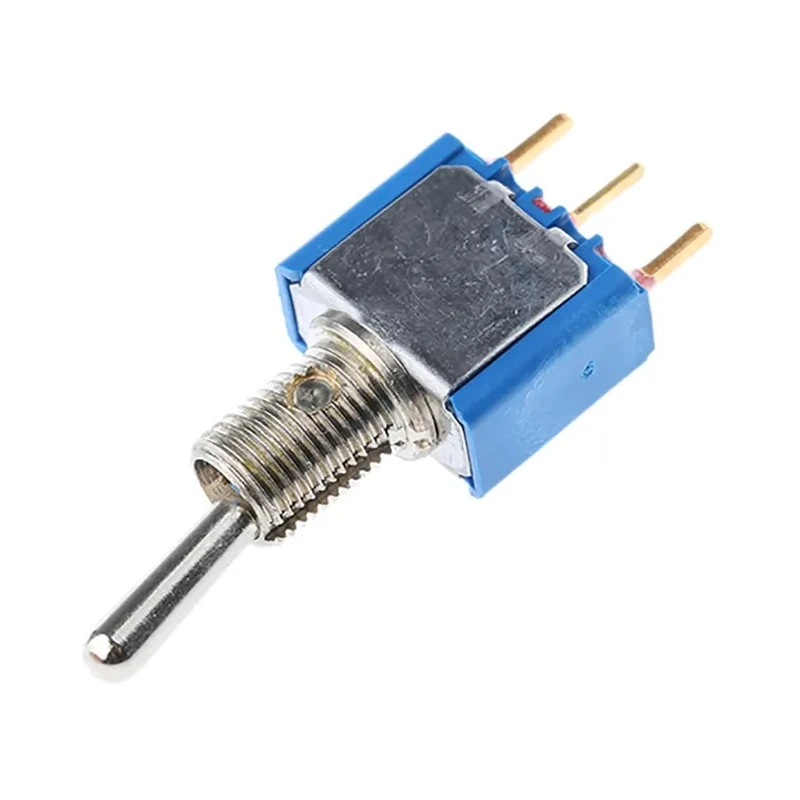

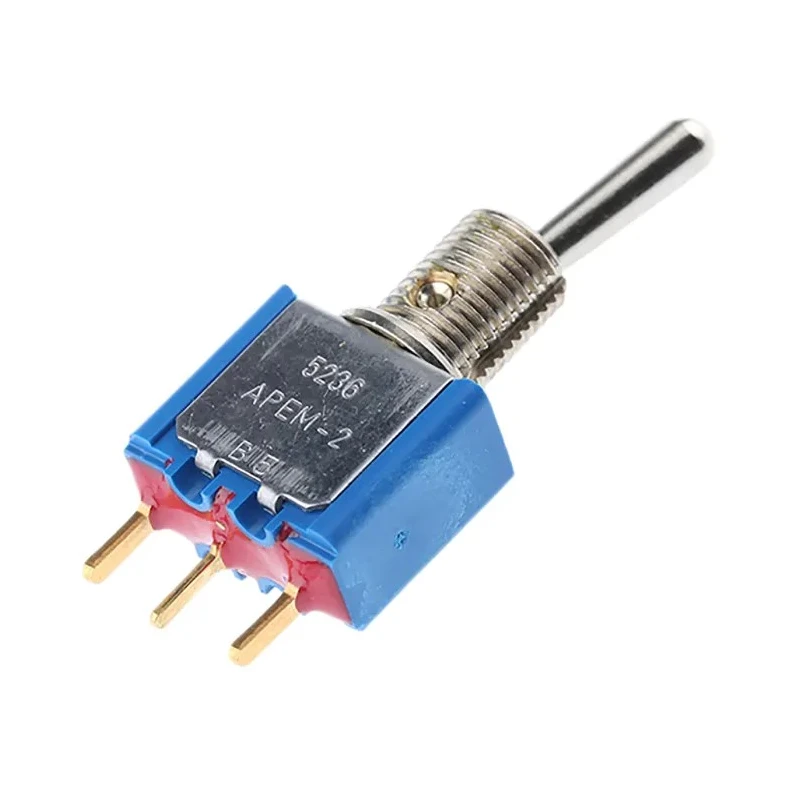

APEM Toggle Switch PCB Mount On-On SPST PC Terminal 24 V dc 250 V ac 5236CDB

APEM 5236CDB Toggle Switch is a high-quality PCB mount switch designed for industrial and electronic applications requiring reliable On-On SPST switching capabilities. Operating at 24 V dc and 250 V ac, this toggle switch supports a contact current of 400 mA, making it suitable for low power electronic circuits and control panels.

This switch features PC terminal type connections and is designed for easy soldering onto printed circuit boards (PCBs). The nickel plated brass actuator assures durability and a premium feel, with a length of 10.5 mm for ergonomic operation. The compact dimensions of 36 mm height, 14 mm length, and 12 mm width allow integration into tight spaces on PCBs.

APEM's 5000 Series toggle switches are epoxy sealed with terminals engineered for longevity and resilience, delivering a mechanical life of 100,000 operations. These switches have been approved under multiple international standards including UL, CECC, CSA, NFVDE, and conform to RoHS directives, ensuring compliance with safety and environmental regulations.

They operate effectively within a wide temperature range from -40°C to 85°C, accommodating demanding industrial environments. The panel cutout required for mounting is precisely 6.5 mm, ensuring compatibility with standard mechanical designs.

Industrial use cases include electrical automation systems, control panels, instrumentation, consumer electronics, and other applications where reliable switching is essential. Being manufactured in France under stringent quality standards, this toggle switch offers dependable performance and consistency for professional electronic design projects.

The switch features a single-pole single-throw (SPST) contact configuration. On-On switch operation provides double position switching. PC terminal type for easy PCB mounting and soldering. Nickel plated brass actuator for robust mechanical handling.

Supports 400 mA contact current at 24 V dc and 250 V ac. Rated for 100,000 mechanical operations ensures long service life. Compact dimensions of 36 mm height, 14 mm length, and 12 mm width. Wide operating temperature range from -40°C to 85°C.

Certified under UL, CECC, CSA, NFVDE, and RoHS compliance. Manufactured in France guaranteeing quality assurance. Explore the full range of Toggle Switches and electrical components in our Electronics & Electricals category for solutions tailored to your design and manufacturing needs.
