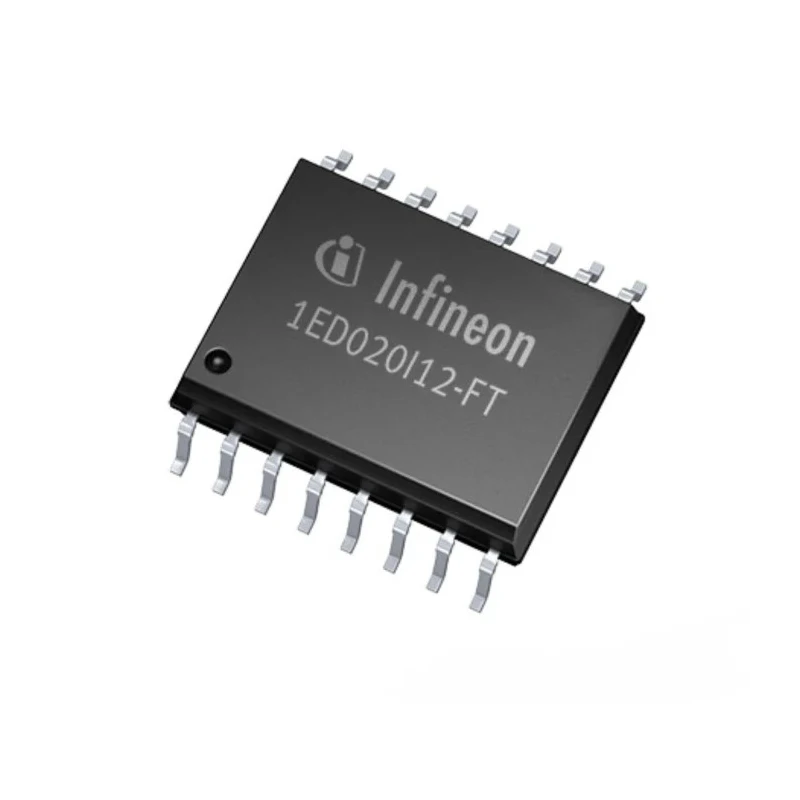

Infineon IGBT Module, 2 A Output Current, 16-Pin DSO-16 Package, 4.5V-5.5V Supply Voltage, Model 1ED020I12FTXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | 1ED020I12FTXUMA1 |
| Output Current | 2A |
| Maximum Operating Temperature | 150°C |
| Package Type | DSO-16 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 60747-5-2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Fall Time | 350ns |
| Driver Type | IGBT |
Key Features
- Galvanically isolated single channel gate driver in wide body DSO-16 package.
- Typical output current capability of 2 A for efficient switching.
- All logic pins 5V CMOS compatible for direct microcontroller interface.
- Minimum supply voltage of 4.5 V and maximum of 5.5 V.
- Fall time of 350 ns for fast switching performance.
- Operating temperature range from -40°C to 150°C for diverse environments.
- Meets DIN EN 60747-5-2 industrial standards.
- Features active Miller clamp, two-level turn off, active shutdown, and short circuit clamping.
Product Description
Infineon 1ED020I12FTXUMA1 IGBT Module is a high-performance, galvanically isolated single channel gate driver housed in a wide body DSO-16 package. It delivers a typical output current of 2 A suitable for efficient power management and switching applications.
The module features logic pins compatible with 5V CMOS technology enabling direct interfacing with microcontroller systems. It operates within a supply voltage range of 4.5V to 5.5V and boasts a fall time of 350 ns, ensuring rapid turn-off switching capabilities suitable for industrial and commercial power electronics.
Designed to operate reliably under harsh conditions, this IGBT module supports a wide operating temperature range from -40°C to 150°C, making it suitable for automotive, industrial, and power management IC applications.
Galvanic isolation enhances system safety and noise immunity. Active Miller clamp improves switching performance and reduces losses. Two-level turn-off (TLTOff) allows precise control of the switching behavior. Active shutdown and short circuit clamping help protect the device and circuit integrity.
Complies with DIN EN 60747-5-2 to ensure quality and reliability standards.
This product is essential for various industrial and manufacturing systems requiring reliable gate driving solutions for power semiconductors. Its compact DSO-16 form factor facilitates easy integration into PCBs for power electronics, HVAC systems, and automotive electronics.
Set includes a single Infineon 1ED020I12FTXUMA1 IGBT Module ready for immediate use. Explore more power management ICs and semiconductor products to find complementary components for your application needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a typical output current capability of 2 A, suitable for efficient power management and switching applications.
It operates within a supply voltage range of 4.5V to 5.5V, making it compatible with various microcontroller systems.
The fall time for this unit is 350 ns, ensuring rapid turn-off switching capabilities.
This model is housed in a wide body DSO-16 package, facilitating easy integration into PCBs.
Yes, it complies with DIN EN 60747-5-2 industrial standards, ensuring quality and reliability.
It features an active Miller clamp, two-level turn-off, active shutdown, and short circuit clamping to improve performance and protect the device.
This model has a total of 16 pins, making it suitable for various connection configurations.
It is categorized as a gate driver specifically designed for IGBT applications.
The Infineon IGBT Module is manufactured in India.
