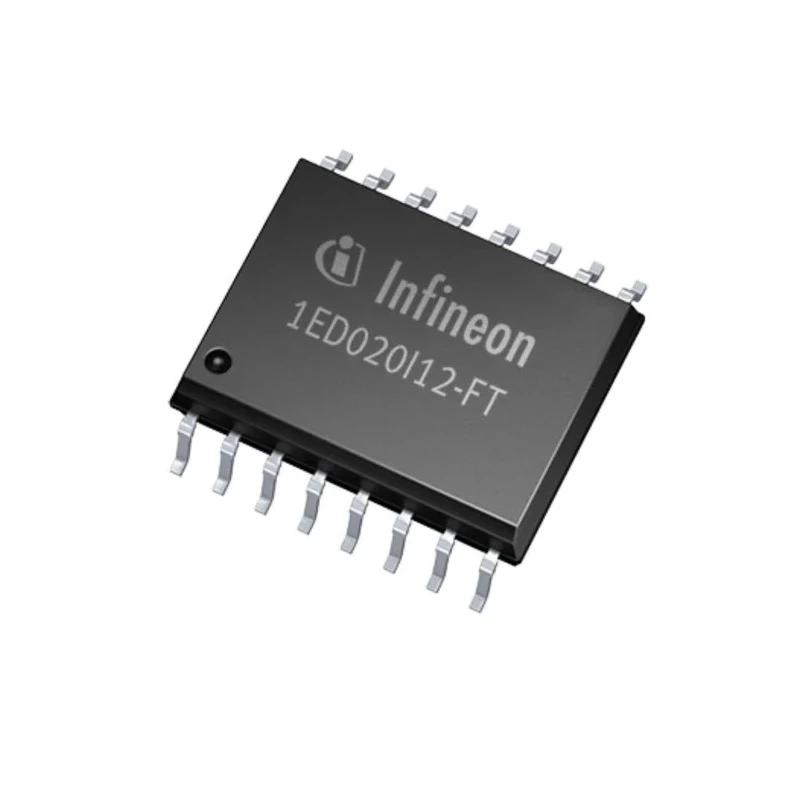

Infineon IGBT Module 2 A 16-Pin 5.5 V DSO-16 1ED020I12FTXUMA1

The Infineon 1ED020I12FTXUMA1 is a high-performance IGBT module designed for power management applications requiring a 2 A output current and 16-pin configuration in a DSO-16 wide body package. This gate driver is galvanically isolated to ensure safety and reliable operation in industrial, electronic, and manufacturing environments.

Featuring logic pins compatible with 5 V CMOS standards, the module interfaces easily with microcontrollers and other digital control systems. It integrates advanced features such as an active Miller clamp and a two-level turn-off mechanism to optimize switching performance and reduce power losses.

Device protection is enhanced with active shutdown and short circuit clamping capabilities, safeguarding against fault conditions. It supports an absolute maximum output supply voltage of 28 V and a maximum propagation delay of 200/230 ns, allowing for fast and responsive gate driving.

The output undervoltage lockout (UVLO) functions at 12/11 V, securing safe operation under varying supply voltages. The operating temperature range from -40°C to 150°C enables this module to be deployed in harsh industrial and automotive applications, although it is not certified for automotive standards.

Designed to meet the DIN EN 60747-5-2 standard, the 1ED020I12FTXUMA1 assures compliance with established electrical component quality metrics. Galvanically isolated single channel gate driver for safe power control. Typical output current: 2 A ensuring reliable switching.

5 V CMOS compatible logic inputs for seamless integration. Active Miller clamp and two-level turn off for improved switching behavior. Active shutdown and short circuit clamping for device safety. Maximum supply voltage: 5.5 V and absolute max output supply voltage of 28 V.

Propagation delay max 200/230 ns for fast response. UVLO output at 12/11 V for voltage protection. Operating temperature range: -40°C to 150°C suitable for industrial environments. Complies with DIN EN 60747-5-2 standard.

This IGBT Module is ideal for applications in power management, industrial automation, electronic manufacturing, and laboratory equipment where fast, reliable switching and electrical isolation are critical. The DSO-16 package ensures ease of PCB integration and handling.
