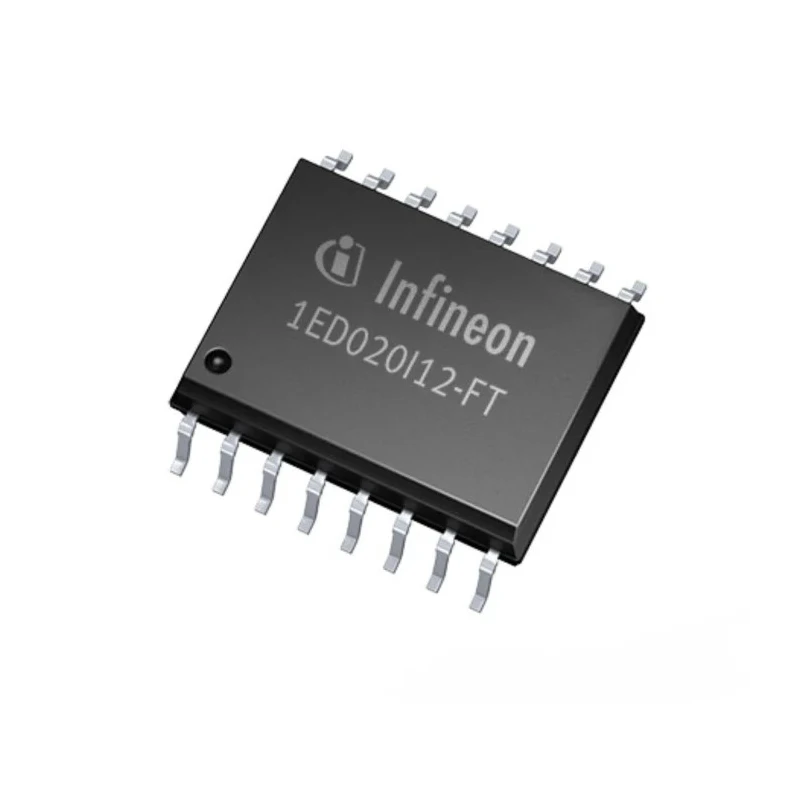

Infineon IGBT Module 2 A 16-Pin 5.5V DSO-16 1ED020I12FTXUMA1

The Infineon 1ED020I12FTXUMA1 is a high-performance IGBT Module designed with a galvanically isolated single channel gate driver in a robust 16-pin DSO wide body package. It provides a typical output current capability of 2 A, suitable for precise and efficient control of IGBT switches in industrial electronic applications.

This gate driver IC supports 5 V CMOS compatible logic inputs allowing direct interfacing with microcontrollers, making integration straightforward in modern embedded systems. It operates reliably across a wide voltage range between 4.5 V and 5.5 V, and tolerates an operating temperature range from -40°C up to 150°C, ensuring durability in harsh environments.

The device incorporates advanced features such as active Miller clamp to prevent device damage caused by Miller effect, and two-level turn off (TLTOff) to provide secure and controlled switching. It also features active shutdown and short circuit clamping protections.

With a fall time of 350 ns and a maximum propagation delay of 200/230 ns, this IGBT driver assures fast and responsive switching necessary for high-efficiency power management. The output under-voltage lockout set at 11/12 V enhances operational safety by preventing unintended device operation.

Compliant with DIN EN 60747-5-2 standards, the module is suitable for industrial, manufacturing, power electronics, and automotive-grade electronics applications where reliable gate driving is critical.

Galvanically isolated single channel gate driver in 16-pin DSO package. 2 A output current capability for effective IGBT control. 5 V CMOS compatible logic inputs for easy microcontroller connection. Operating temperature range from -40°C to 150°C for durability.

Supply voltage range: 4.5 V to 5.5 V for stable performance. Fast switching with 350 ns fall time and 200/230 ns propagation delay. Active Miller clamp and two-level turn off for device protection. Output UVLO at 11/12 V enhances operational safety.

Standards compliance: DIN EN 60747-5-2. Explore more Infineon semiconductor solutions and gate drivers at EnvMart for your electronic component requirements.
