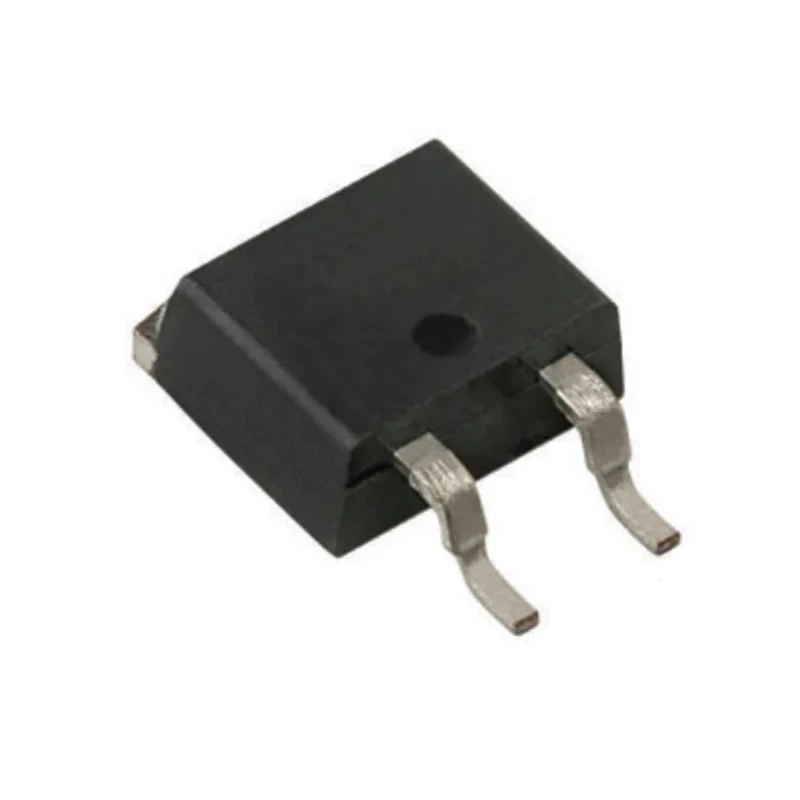

Vishay 1200 V 25 A Surface-Mount Rectifier & Schottky Diode TO-263 D2PAK
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | D2PAK |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.72V |
Key Features
- The diode features a very low forward voltage drop of 0.72 V, enhancing efficiency.
- It supports a peak non-repetitive forward surge current of 30 A.
- The device operates safely between -55°C to 175°C, suitable for harsh environments.
- Glass passivated pellet chip junction ensures high reliability and ruggedness.
- Meets automotive standard AEC-Q101 and is RoHS compliant for environmental safety.
- Meets MSL level 1 per J-STD-020 with a lead-free peak of 245°C.
- Ideal for reliable AC power rectification and DC charging stations.
- Single diode configuration in a compact, flexible surface-mount package.
Product Description
Vishay VS-25ETS12S2LHM3 is a high-voltage, surface-mount Schottky rectifier diode designed for advanced power electronics and rectification applications. It features a 1200 V peak reverse voltage rating and a maximum continuous forward current of 25 A, making it suitable for demanding industrial, automotive, and commercial uses.
The diode is housed in the TO-263 package, offering robust surface mounting with good thermal performance. Its low forward voltage drop of 0.72 V reduces power loss, improving overall system efficiency.
This device supports a peak non-repetitive forward surge current of 30 A and operates reliably over an extended temperature range from -55°C to 175°C. The glass passivated pellet chip junction construction provides enhanced ruggedness and durability.
Qualifying to the automotive AEC-Q101 standard and RoHS compliant, the diode ensures environmental safety and high reliability in automotive and industrial environments.
The VS-25ETS12S2LHM3 is ideal for use in AC power rectification circuits, DC charging stations, and other power conversion applications requiring high surge capabilities and low forward voltage drops. Its compliance with MSL level 1 per J-STD-020 with a maximum lead-free peak reflow temperature of 245 °C ensures suitability for modern manufacturing processes.
The diode features a very low forward voltage drop of 0.72 V, enhancing efficiency. It supports a peak non-repetitive forward surge current of 30 A. The device operates safely between -55°C to 175°C, suitable for harsh environments.
Glass passivated pellet chip junction ensures high reliability and ruggedness. Meets automotive standard AEC-Q101 and is RoHS compliant for environmental safety. Meets MSL level 1 per J-STD-020 with a lead-free peak of 245°C.
Ideal for reliable AC power rectification and DC charging stations. Single diode configuration in a compact, flexible surface-mount package. Purchase Vishay rectifier and Schottky Diodes for high-performance semiconductor applications and browse more in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak reverse repetitive voltage rating of 1200 V.
It can handle a maximum continuous forward current of 25 A.
The maximum forward voltage drop is 0.72 V, which enhances efficiency.
This model operates safely between -55°C to 175°C, making it suitable for harsh environments.
It supports a peak non-repetitive forward surge current of 30 A.
It is housed in a TO-263 package, which is a surface-mount type.
Yes, it meets the automotive standard AEC-Q101.
This model is RoHS compliant, ensuring environmental safety.
It features a glass passivated pellet chip junction, which provides high reliability and ruggedness.
The diode is designed for surface mounting.
It has a maximum lead-free peak reflow temperature of 245 °C, compliant with MSL level 1 per J-STD-020.
It is ideal for reliable AC power rectification and DC charging stations, among other power conversion applications.
