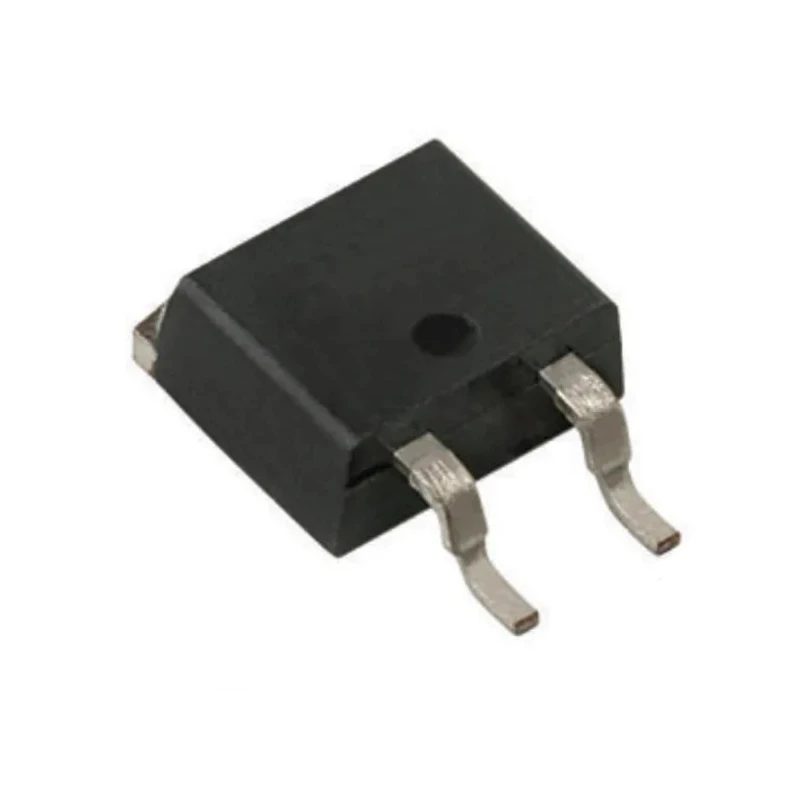

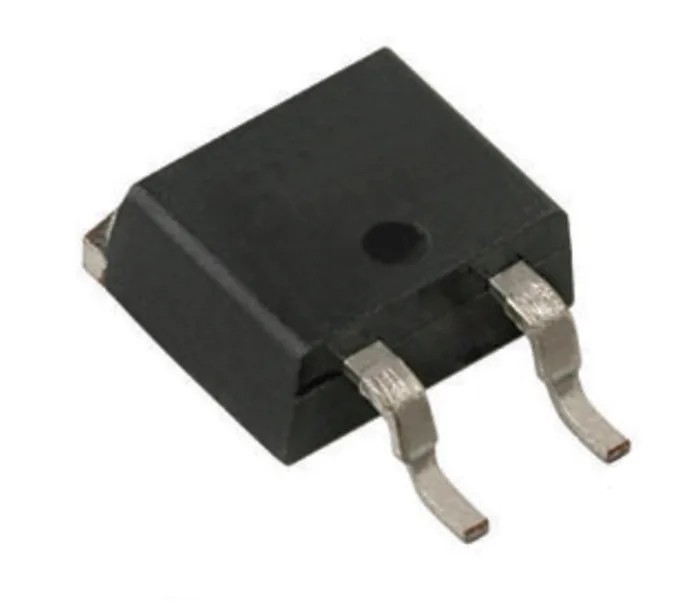

Vishay 1200 V 25 A Surface Mount Rectifier & Schottky Diode Schottky D2PAK VS-25ETS12S2LHM3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-25ETS12S2LHM3 |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.72V |
Key Features
- Optimized for very low forward voltage drop with moderate leakage.
- Built with glass passivated pellet chip junction for enhanced reliability.
- Qualified to AEC-Q101 automotive standard ensuring quality and durability.
- Meets MSL level 1 with a maximum peak soldering temperature of 245 °C.
- Operates reliably over a temperature range of -55°C to 175°C.
- Features high surge capability with a peak non-repetitive forward surge current of 30 A.
- Flexible solution suitable for AC power rectification and DC charging stations.
- The diode configuration is single with a maximum forward voltage of 0.72 V.
Product Description
Vishay VS-25ETS12S2LHM3 is a high-voltage surface mount rectifier and Schottky Diode designed for industrial and automotive electronics applications. It supports a maximum continuous forward current of 25 A and peak reverse voltage of 1200 V, housed in a rugged TO-263 D2PAK package suitable for surface mounting. This diode is engineered for low forward voltage drop, resulting in efficient power conversion and reduced heat generation.
The device uses a glass passivated pellet chip junction that enhances its reliability under thermal and electrical stress. It is compliant with RoHS standards and qualified to meet the rigorous AEC-Q101 automotive standard, making it ideal for use in automotive electronics and demanding industrial environments.
The diode operates within a wide temperature range from -55°C up to 175°C, with a surge current capacity of 30 A peak. It meets MSL level 1 qualification with a maximum allowed lead-free soldering temperature peak of 245 °C.
This diode is ideal for AC power rectification applications and DC charging stations, offering a flexible and durable solution for circuits requiring high surge capability and low forward voltage.
Optimized for very low forward voltage drop and moderate leakage current. Glass passivated pellet chip junction for improved durability. Qualified to automotive AEC-Q101 standard with RoHS compliance. Wide operating temperature range from -55°C to 175°C.
High surge capability supporting peak currents up to 30 A. Surface mount package type TO-263 for reliable mounting. Meets MSL level 1 with a high peak soldering temperature tolerance. Single diode configuration with 0.72 V maximum forward voltage.
This product is highly suitable for industrial, automotive, and power electronic applications including power rectification and DC charging infrastructure. For further technical design and mechanical resources, 3D models, and compliance certificates, users can access Vishay's official product documentation.
Explore EnvMart for a broad range of semiconductor devices, rectifiers, and diodes to complement your electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-25ETS12S2LHM3 is 25 A.
This model supports a peak reverse repetitive voltage of 1200 V.
The maximum forward voltage drop for this diode is 0.72 V.
It operates reliably over a temperature range from -55°C to 175°C.
The diode is housed in a TO-263 package type suitable for surface mounting.
The peak non-repetitive forward surge current for this model is 30 A.
Yes, it is qualified to the AEC-Q101 automotive standard, ensuring its suitability for automotive applications.
This diode is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It features a single diode configuration designed for efficient power conversion.
This model has a high surge capability, supporting peak currents up to 30 A.
Key features include low forward voltage drop, moderate leakage, and a glass passivated pellet chip junction for enhanced reliability.
The country of origin for the Vishay VS-25ETS12S2LHM3 is India.
