Molex PicoBlade Series 3 Contact Vertical Surface PCB Header 1.25 mm Pitch 1 Row Shrouded 53398-0367

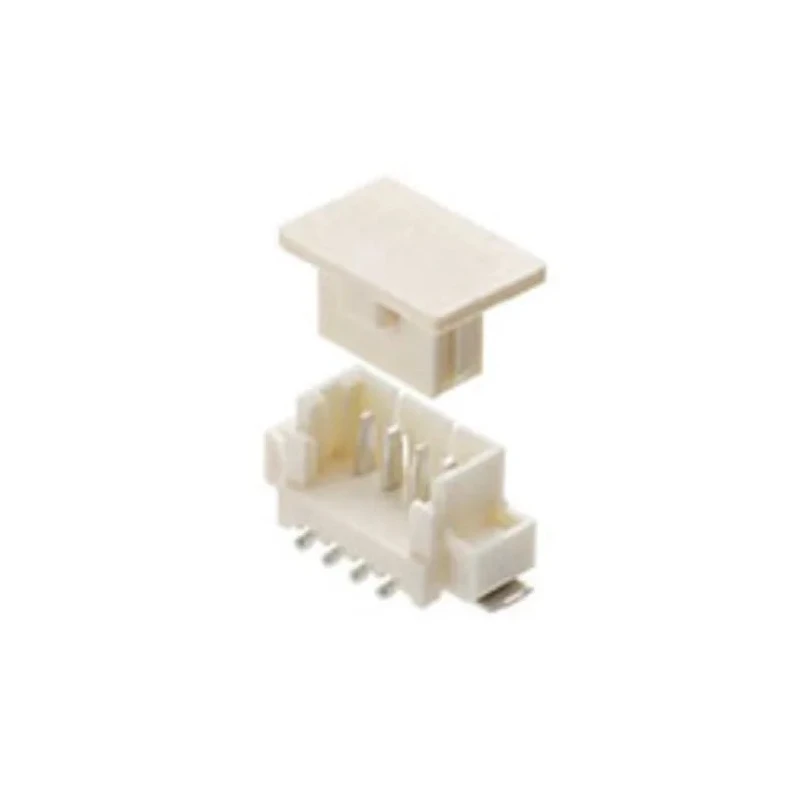

Molex 53398-0367 PicoBlade Series vertical surface PCB header is a precision connector designed for electronic component assemblies requiring reliable surface mount connections. It features a 3-contact configuration with a 1.25 mm pitch arranged in a single, shrouded row. The nylon housing provides durability and mechanical protection, ensuring secure locking to mating parts.

This PCB header supports a voltage rating of 125 V and a current rating of 1 A, suitable for low-power electronic devices and circuits. The contact material is high-quality phosphor bronze plated with tin to ensure excellent electrical conductivity and corrosion resistance. Its operating temperature range from -40°C to 85°C makes it adaptable to a variety of industrial and commercial environments.

The termination type is surface mount, facilitating automated assembly processes and enhancing production efficiency. The tail pin length is 0.60 mm with a mating pin length of 2 mm, ensuring a stable and robust electrical connection. This product complies with UL E29179, reflecting adherence to stringent safety and performance standards.

Manufactured in Malaysia, this PCB header is well-suited for applications in electronics manufacturing, prototyping labs, and production lines where reliable, compact connectors are essential. The product's compact design and vertical orientation make it ideal for dense PCB layouts and space-constrained systems.

Key features include a shrouded design to prevent misalignment and mechanical damage, a nylon housing for longevity, and high-quality contact materials for consistent electrical performance. This Molex component contributes to enhanced connection reliability and ease of integration in an array of electronic products.

The set contains the single Molex 53398-0367 PCB header supplied on a reel to facilitate automated pick-and-place processes and improve assembly workflows. Features a shrouded, single-row design for reliable mating. Constructed with a nylon housing material ensuring durability.

Contacts are made of phosphor bronze with tin plating for optimal conductivity. Rated for 125 volts and 1 ampere current capacity. Operates in a temperature range from -40°C to 85°C for versatile applications. Facilitates surface mount termination for ease of assembly on PCBs.

Tail pin length measures 0.60 mm; mating pin length is 2 mm for secure connections. Meets UL E29179 standards for quality assurance. Manufactured in Malaysia, ensuring compliance with international quality standards.
