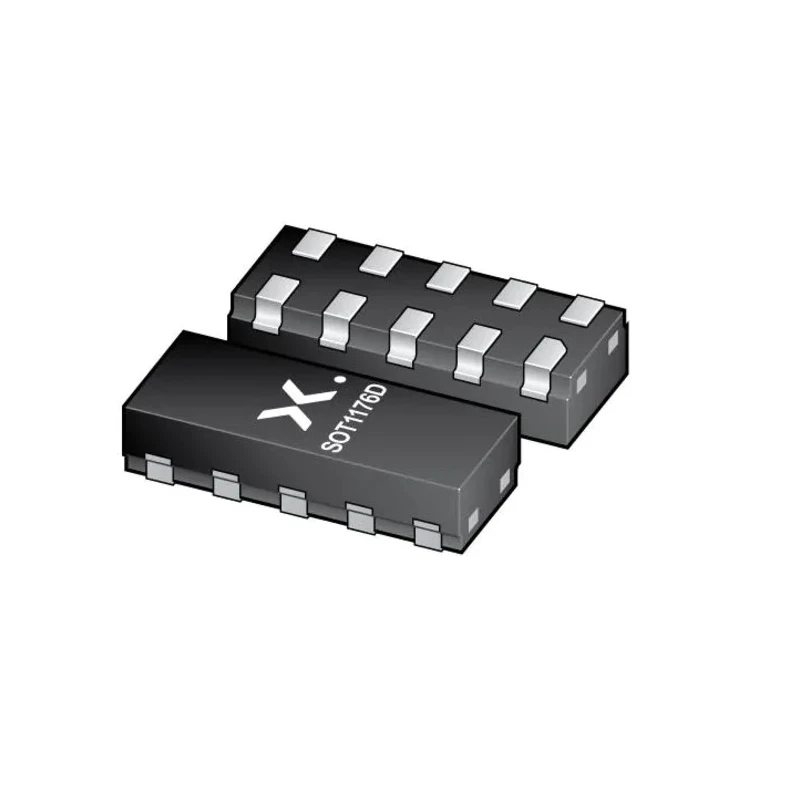

Nexperia Bi-Directional ESD Protection Diode DFN2510D PESD4USB5B-TBS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.5mm |
| Model | PESD4USB5B-TBS |
| Width | 0.75mm |
| Mount Type | Surface |
| Series | PESD4USB5B-TBS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -65°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC 61000-4-2 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
| Infotainment applications | USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT |
Key Features
- Features bi-directional ESD protection for sensitive signals.
- Compact surface mount DFN2510D package with 2.5mm length and 0.75mm width.
- Supports maximum operating temperature of 150°C and minimum of -65°C.
- Designed to protect interfaces such as USB 2.0, SuperSpeed USB 3.2, HDMI, DisplayPort, and eSATA.
- Complies with IEC 61000-4-2 standard and automotive AEC-Q101 certification.
- Low line capacitance of 0.5 pF per channel enables high-speed data signal integrity.
- Maximum reverse stand-off voltage is 5V with clamping voltage of 5.5V.
- Maximum peak pulse current rating is 7A, ensuring robust surge protection.
Product Description
Nexperia PESD4USB5B-TBS Bi-Directional ESD Protection Diode DFN2510D provides reliable electrostatic discharge protection for high-speed data interfaces operating up to 10 Gbps, including SuperSpeed USB 3.2, HDMI 2.0, DisplayPort, and eSATA. With a minimum breakdown voltage of 6V and clamping voltage of 5.5V, it safeguards sensitive equipment from voltage spikes and ESD events.
This diode features a compact surface mount DFN2510D package with dimensions of 2.5 mm length, 0.75 mm width, and 1 mm height, ensuring easy PCB integration while maintaining signal integrity thanks to its low line capacitance of 0.5 pF per channel. It operates reliably within a temperature range from -65°C to 150°C, meeting harsh industrial and automotive environment requirements.
Certified to meet IEC 61000-4-2 for ESD protection and AEC-Q101 for automotive applications, the diode is well-suited for infotainment systems, automotive A/V monitors, display cameras, and SerDes technologies such as GMSL and LVDS.
Bi-directional ESD protection suitable for diverse high-speed data applications. Compliant with automotive and industrial protection standards. Robust 7A peak pulse current tolerance for surge handling. Low capacitance minimizes signal degradation on fast data lines.
Compact DFN2510D package facilitates compact PCB layouts. Wide operating temperature range from -65°C to 150°C for reliability. Protects interfaces including USB 2.0, HDMI 2.0, SuperSpeed USB 3.2, DisplayPort, and eSATA.
This product is ideal for industrial, automotive, and consumer electronics applications requiring superior ESD protection and compliance with rigorous standards. Explore the Nexperia range for advanced semiconductor solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 150°C.
The clamping voltage for this diode is 5.5V.
This model comes in a compact surface mount DFN2510D package.
The minimum breakdown voltage is 6V.
The maximum peak pulse current rating is 7A, providing robust surge protection.
The dimensions are 2.5mm in length, 0.75mm in width, and 1mm in height.
The minimum operating temperature is -65°C.
It complies with IEC 61000-4-2 for ESD protection and AEC-Q101 for automotive applications.
The line capacitance is 0.5 pF per channel, which helps maintain high-speed data signal integrity.
Yes, this diode features bi-directional ESD protection, making it suitable for various high-speed data applications.
