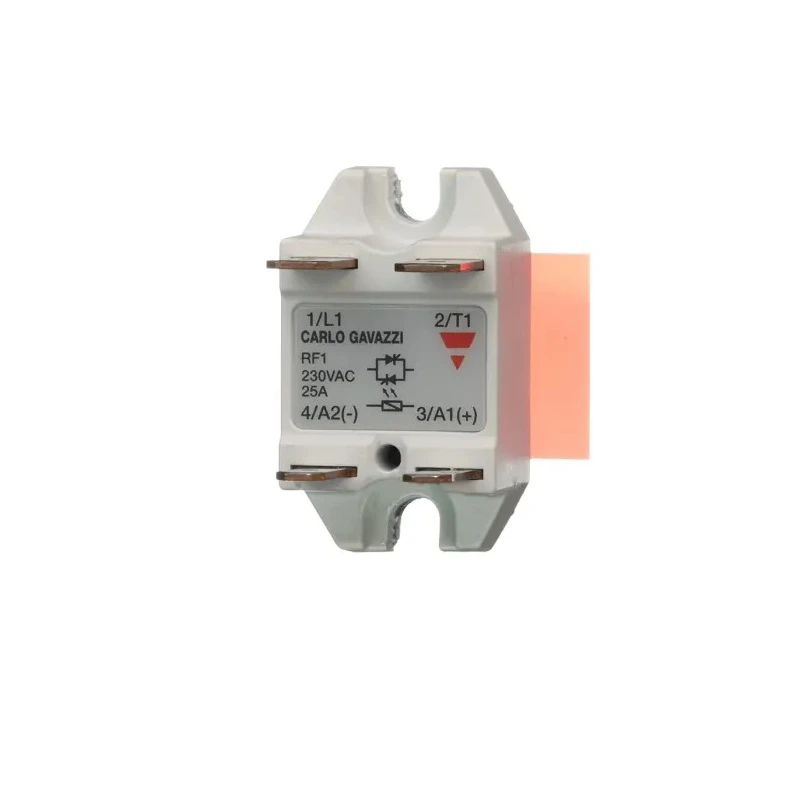

Carlo Gavazzi RF1 Series Solid State Relay Chassis Mount, 25 A Load Current, 280 V AC Load, 28.8 V DC Control RF1A23D25
Specifications
| Country of Origin | Malta |
|---|---|
| Brand | Carlo Gavazzi |
| Height | 35.6mm |
| Length | 21.1mm |
| Model | RF1A23D25 |
| Width | 17mm |
| Mount Type | Chassis |
| Series | RF1 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | VDE, CSA, CE |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 18V dc |
| Maximum Control Voltage | 28.8V dc |
| Off State Leakage Current | 3mA |
| Operational ratings | up to 280 VAC, 25 AAC |
| SSR RF ZS 230V 25A 24VDC IPBrand | Carlo Gavazzi |
Key Features
- The relay includes screw terminal type connections for secure mounting.
- It operates with a control voltage range from 18 V DC to 28.8 V DC.
- Zero cross switching function ensures smooth switching at zero voltage crossover.
- Operating temperature ranges from -30°C to 80°C making it suitable for various industrial environments.
- It features integrated overvoltage protection and opto isolation input to output at 3750 VAC.
- LED indicator for control status provides easy operation monitoring.
- The relay is built for long lifetime with 100k cycles endurance as per UL508 standards.
- Compact dimensions at 35.6 mm (height) x 21.1 mm (length) x 17 mm (width) optimize panel space.
Product Description
Carlo Gavazzi RF1A23D25 is a high quality solid state relay designed for industrial and automation applications requiring reliable AC load switching. This chassis mount relay supports a maximum load current of 25 A with an operational load voltage up to 280 V AC, making it ideal for heavy duty switching tasks.
The relay features zero cross switching function to reduce electrical noise and transient voltages, thereby protecting sensitive electronics. It operates at control voltages ranging from 18 V DC up to 28.8 V DC, and includes a bright LED control status indicator for clear operation confirmation.
Constructed with integrated overvoltage protection on the output and opto isolation with 3750 VAC isolation between input and output, the RF1A23D25 Solid State Relay ensures robust safety and performance. It is tested for endurance to 100,000 switching cycles under UL508 compliance standards, providing a long and dependable service life in demanding environments.
The relay is designed to function over a temperature range from -30°C to +80°C, suitable for industrial, laboratory, manufacturing, and HVAC control systems. Its compact size of 35.6 mm height, 21.1 mm length, and 17 mm width allows for efficient space utilization in control panels or chassis mounting setups.
Its screw terminal design facilitates secure electrical connections and ease of installation. Originating from Malta, this relay adheres to international standards including VDE, CSA, and CE certifications for quality assurance.
The relay is suitable for industrial automation, process control, and electrical equipment where reliable switching of AC loads is required. Ideal for integration in manufacturing plants, HVAC systems, and automation control panels.
Set up benefits from the solid state technology for silent operation, minimal wear and tear, and high switching speed without mechanical contacts. Explore EnvMart's extensive catalog of industrial automation and electrical components to find additional Carlo Gavazzi products and compatible accessory equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 25 A.
It operates with a load voltage range of up to 280 V AC.
This relay supports a control voltage range from 18 V DC to 28.8 V DC.
The operating temperature range for this relay is from -30°C to 80°C.
It features a zero cross switching function, which helps reduce electrical noise and transient voltages.
The dimensions of this relay are 35.6 mm in height, 21.1 mm in length, and 17 mm in width.
It includes integrated overvoltage protection and opto isolation with 3750 VAC isolation between input and output.
This model uses screw terminal type connections for secure mounting.
It is rated for 100,000 switching cycles according to UL508 standards.
The relay adheres to VDE, CSA, and CE certifications for quality assurance.
It is suitable for industrial automation, process control, and electrical equipment requiring reliable AC load switching.
