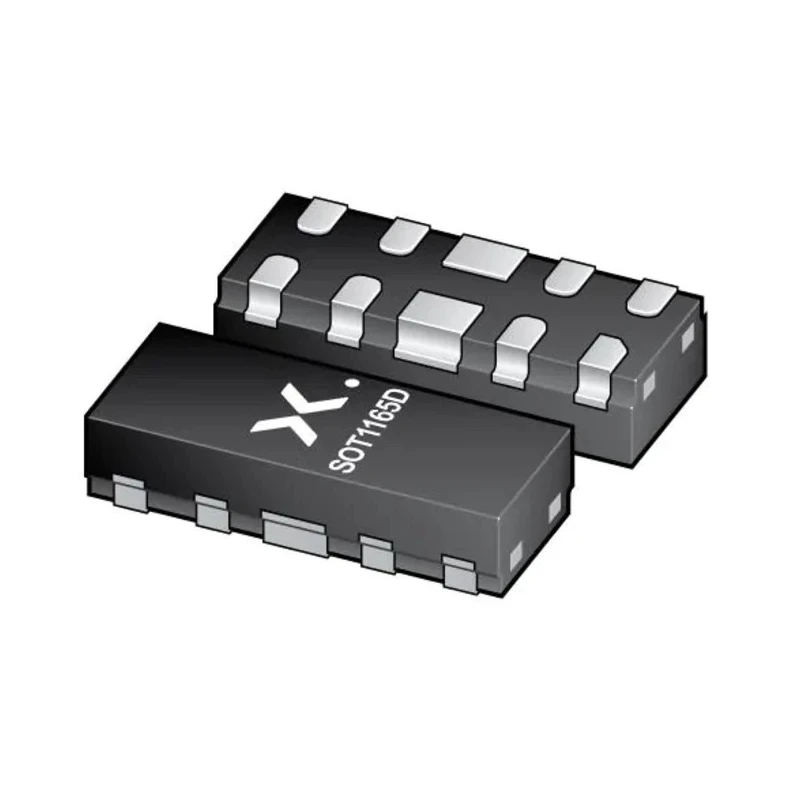

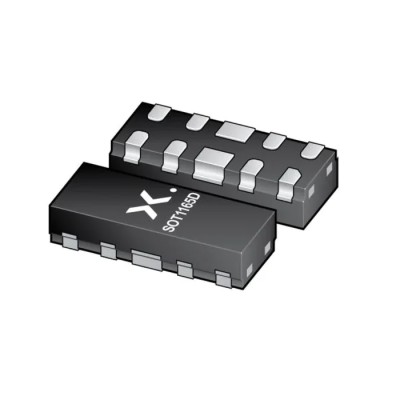

Nexperia Uni-Directional ESD Protection Diode 10-Pin DFN2510D, 6V Breakdown, 7A Pulse Current PESD4USB5U-TTSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB5U-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD4USB5U-TTS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 Level 4 |
| Pin Count | 10 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Uni-directional ESD diode optimized for USB 2.0 and SuperSpeed USB 3.2 applications.
- Minimum breakdown voltage of 6 volts and maximum reverse stand-off voltage of 5 volts.
- Clamping voltage of 3.5 volts ensuring effective transient suppression.
- Supports peak pulse current up to 7 amperes for robust protection.
- Compact surface mount DFN2510D package with dimensions 2.5mm x 1mm x 0.75mm height.
- Wide operating temperature range from -55°C to 150°C suitable for automotive-grade applications.
- Complies with ISO10605 and IEC61000-4-2 Level 4 standards for ESD protection.
- Low line capacitance of 0.5 pF per channel to maintain signal integrity.
Product Description
The Nexperia PESD4USB5U-TTSX is a uni-directional ESD Protection Diode designed to safeguard sensitive high-speed data interfaces such as USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, and other automotive and industrial communication protocols. Featuring a compact 10-pin DFN2510D surface mount package, this diode offers a minimum breakdown voltage of 6 volts and a maximum reverse stand-off voltage of 5 volts, ensuring excellent protection against transient voltage spikes.
This component is capable of handling a peak pulse current of 7 amperes with a clamping voltage of 3.5 volts, providing robust defense against electrostatic discharges up to ±15 kV. Its ultra-low line capacitance of only 0.5 pF per channel preserves signal quality for high-speed data transfer applications.
Its operating temperature range of -55°C to 150°C and qualification under the automotive AEC-Q101 standard make it highly suitable for automotive electronics including infotainment systems, A/V monitors, and cameras. The diode complies with stringent standards such as ISO10605 and IEC61000-4-2 Level 4, ensuring comprehensive ESD protection.
Uni-directional diode construction for effective ESD protection. Compact DFN2510D 10-pin surface mount package. 6 V minimum breakdown voltage and 5 V maximum reverse stand-off voltage. Peak pulse current rating of 7 A with low clamping voltage.
Operating temperature range from -55°C to 150°C for harsh environmental conditions. Low line capacitance of 0.5 pF ideal for high-speed data lines. Automotive grade AEC-Q101 certification ensures reliability. Compliant with ISO10605 and IEC61000-4-2 Level 4 ESD standards.
Designed for protection of USB 2.0, USB 3.2, HDMI, DisplayPort, eSATA, LVDS, and GMSL. Excellent choice for automotive infotainment and industrial communication systems.
This diode is a critical component for system designers seeking reliable ESD protection in automotive, industrial, and consumer electronic applications. Its small footprint and high performance enable enhanced device longevity and reduced failure rates due to electrostatic discharge events.
Explore a wide range of semiconductor and discrete components on EnvMart to enhance your engineering projects and production capabilities.
