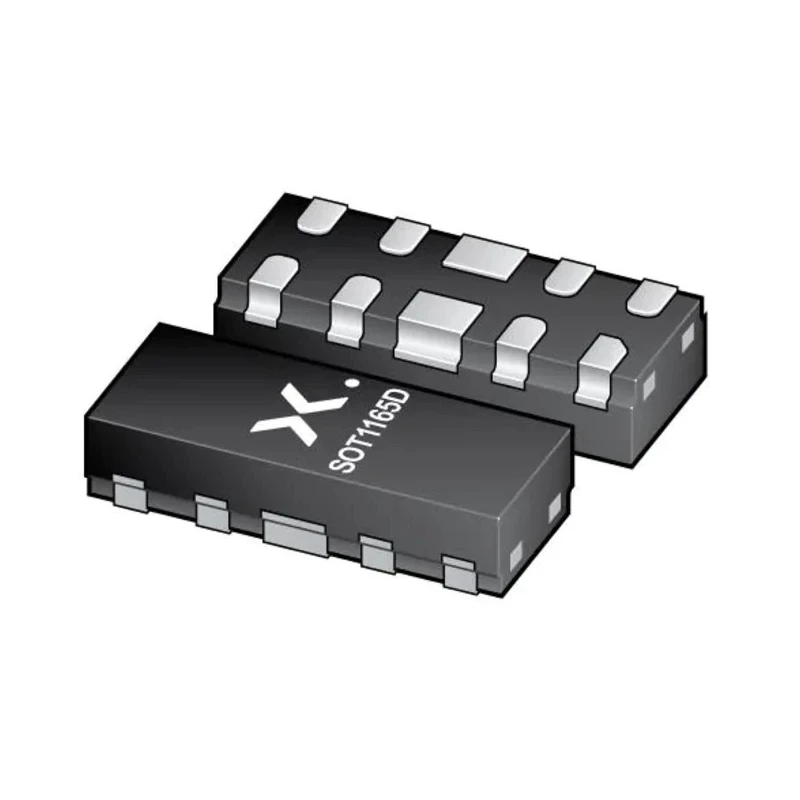

Nexperia Uni-Directional ESD Protection Diode, 10-Pin DFN2510D, 6V Breakdown, 7A Pulse Current PESD4USB5U-TTSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB5U-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD4USB5U-TTS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 Level 4 |
| Pin Count | 10 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Designed for high-speed interfaces such as SuperSpeed USB 3.2 and HDMI.
- Features a minimum breakdown voltage of 6 volts and a clamping voltage of 3.5 volts.
- Offers maximum peak pulse current of 7 amperes for robust transient suppression.
- Compact DFN2510D surface mount package with 10 pins and height of 0.75 mm.
- Supports operating temperature range from -55°C to 150°C for automotive applications.
- Meets automotive standard AEC-Q101 and industry standards ISO10605 and IEC61000-4-2 Level 4.
- Low line capacitance of 0.5 pF per channel ensuring minimal signal distortion.
- Side-wettable flanks and 0.5 mm trace spacing optimized for PCB mounting and AOI inspection.
Product Description
Nexperia PESD4USB5U-TTSX is a uni-directional ESD Protection Diode designed specifically to safeguard high-speed data lines including SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, eSATA, LVDS, and automotive SerDes interfaces against electrostatic discharge events.
It comes in a compact 10-pin DFN2510D surface-mount package measuring 2.5 mm length, 1 mm width, and height of just 0.75 mm. The device provides a minimum breakdown voltage of 6 volts, with a maximum reverse stand-off voltage of 5 volts and a clamping voltage of 3.5 volts, ensuring sensitive electronics are effectively protected during surge events.
This diode supports peak pulse current of up to 7 amperes and withstands operating temperatures from -55°C to 150°C, making it suitable for demanding automotive environments compliant with the AEC-Q101 standard. Its design includes side-wettable flanks with matched 0.5 mm trace spacing for automated optical inspection and assembly.
The device features an extremely low line capacitance of 0.5 pF per channel to minimize signal integrity impact, and a deep snap-back characteristic combined with 0.4 Ω dynamic resistance for outstanding system protection. It is ideal for infotainment USB, HDMI, HDBaseT applications as well as automotive camera, monitor, and display systems.
Designed for high-speed interface protection in industrial, automotive, and consumer electronics. Compact 10-pin DFN2510D package optimized for PCB assembly and AOI compatibility. High transient current handling supports robust ESD protection up to industry standard levels.
Low capacitive load preserves signal integrity on sensitive data lines. Meets automotive grade and IEC/ISO standards for reliability and safety.
Use the Nexperia PESD4USB5U-TTSX diode to achieve reliable surge and ESD protection in your electronic designs, especially for USB, HDMI, and automotive multimedia applications. Browse EnvMart for more electronic components and semiconductor protection devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 6 volts.
It can handle a maximum peak pulse current of 7 amperes.
The package measures 2.5 mm in length, 1 mm in width, and has a height of 0.75 mm.
It supports an operating temperature range from -55°C to 150°C.
It meets the automotive standard AEC-Q101.
The clamping voltage is 3.5 volts.
It is designed for high-speed interfaces such as SuperSpeed USB 3.2, HDMI, and DisplayPort.
This model uses surface mounting.
The maximum reverse stand-off voltage is 5 volts.
It features a low line capacitance of 0.5 pF per channel.
It complies with ISO10605 and IEC61000-4-2 Level 4 standards.
The dynamic resistance is 0.4 Ω, providing effective system protection.
